BEAM Commercial
Operation Manual
This appliance is suitable for commenrcial use, for example in hotels, schools,
hospitals, factories, shops, offices, and rental businesses, etc.
CAUTION: This appliance is not suitable for picking up hazardous dust.
Read these instructions manual before using this appliance.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Beam Commertial
Summary of Contents for Beam Commertial

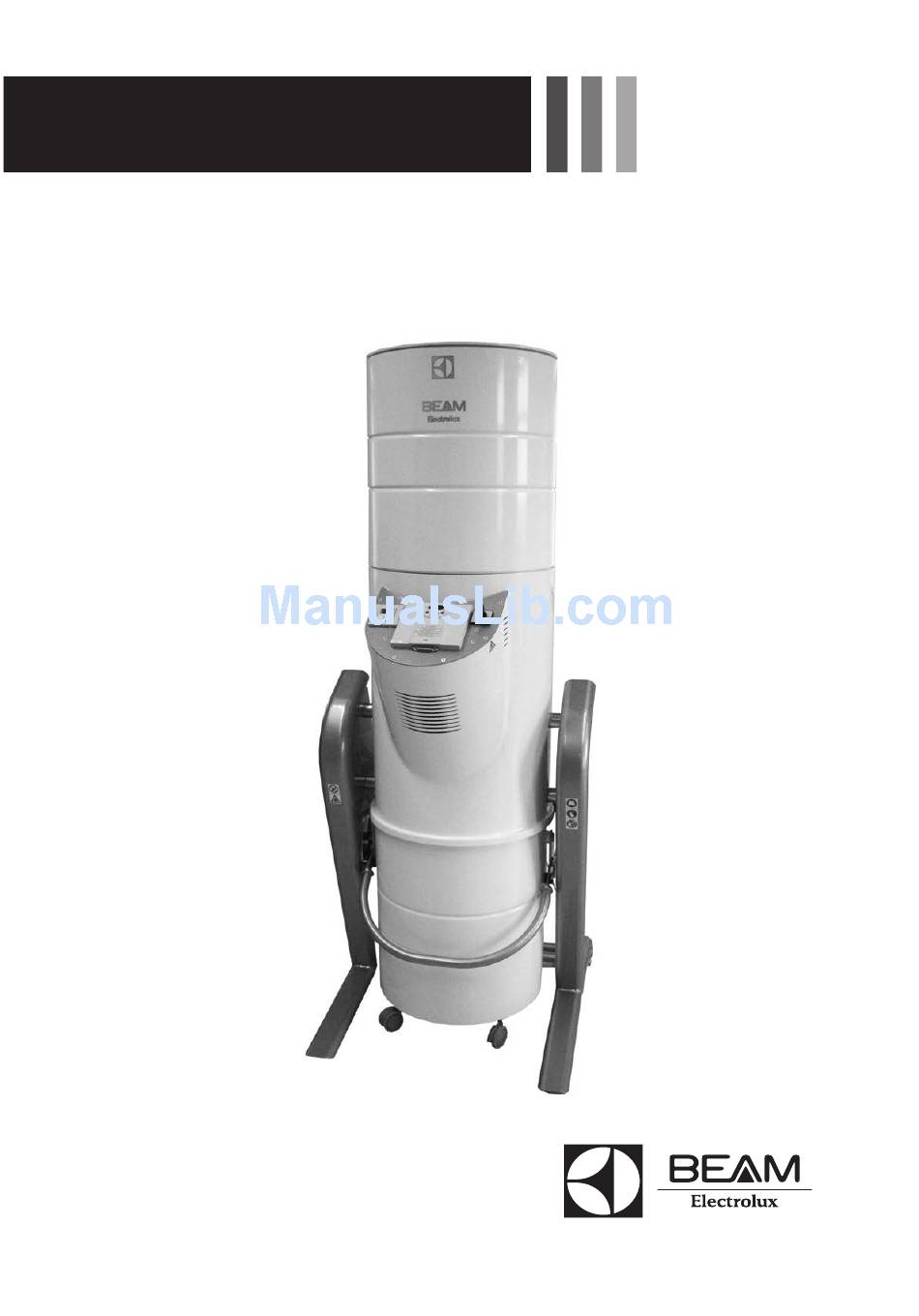

- Page 1 BEAM Commercial Operation Manual This appliance is suitable for commenrcial use, for example in hotels, schools, hospitals, factories, shops, offices, and rental businesses, etc. CAUTION: This appliance is not suitable for picking up hazardous dust. Read these instructions manual before using this appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFEGUARDS General safety information 1.1. Purpose of this manual 1.2. Composition of the manual and consultation details 1.3. General safety precautions 1.4. Identification of the manufacturer 1.5. Technical documentation supplied with the BEAM Commercial central vacuum unit 1.6. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Read this manual carefully before starting operations of movement, unpacking, installation, use, maintenance and decommissioning of the BEAM Commercial central vacuum unit. WARNING To reduce the risk of fire, electric shock or injury: • Vacuum units are for commercial use. •... -
Page 4: General Safety Information
GENERAL SAFETY INFORMATION 1.1. Purpose of this manual This installation, use and maintenance manual are an integral and essential part of the BEAM Commercial Central Vacuum unit. Its purpose is to provide all necessary information to allow the installer to install the system in full compliance with the manufacturer’s specifications, the user to operate the system in the safest and most independent way, and maintenance technicians carrying out programmed maintenance operations to ensure the correct operation of machinery and the system as a whole. -
Page 5: Identification Of The Manufacturer
During normal use or during any kind of operations on the system, the safety distances around it must be maintained in order to avoid causing risks for the safety or health of persons. For some operations the help of one or more assistants may be necessary. 1.4. -
Page 6: Technical Documentation Supplied With The Beam Commercial Central Vacuum Unit
1.5. Technical documentation supplied • Operation Manual for BEAM Commercial central vacuum units 1.6. Standard equipment supplied The following are supplied as standard accessories: • 2 fittings with fixing clamps for connecting the vacuum unit to the system • 1 dust collection bag 1.7. -
Page 7: Standard Models And Approximate Dimensions
2.2. Standard models and approximate dimensions Characteristics BC126M BC126A BC238M BC238A Number of operators Work area (m²) up to 1500 up to 1500 up to 3000 up to 3000 Self-cleaning function Technical data – Dimensions Container capacity (L) Diameter (cm) Filter surface (m²) Inlet/outlet diameter (mm) Height (cm) -
Page 8: Technical Data And Characteristics
2.3. Technical data and characteristics Technical performance data BC126M BC126A BC238M BC238A Maximum airflow (m Airflow operating at 160 mBar (m /h ) Operating suction pressure (mBar) Noise emission (dBA) Electrical technical data Motor power (kW) Power supply voltage (V) Power supply frequency (Hz) 50/60 50/60... -
Page 9: Dust Container
2.4. Stand The frame is the support structure of the BEAM Commercial vacuum unit. Its adjustable support feet allow the vacuum unit to be levelled even on irregular surfaces. 2.5. Dust container The dust container has a collection capacity of 90 liters. The container has a dust collection bag for the disposal of dust. -
Page 10: Movement And Unpacking
Figure 4. MOVEMENT AND UNPACKING The BEAM Commercial central vacuum unit is shipped fixed to a europallet inside a cardboard carton to protect it during transport and delivery. It is advisable not to remove the packaging until the moment of installation, to avoid possible damage. Upon delivery check that the shipment is correct without any damages. -
Page 11: Installation
INSTALLATION This system is designed to be installed by adequately trained and instructed personnel. The entire system must be installed by qualified personnel in full compliance with standards of workmanship and with applicable standards and regulations. ATTENTION: During installation operations use appropriate items of personal protection equipment. 4.1. -
Page 12: Use And Operation
The power supply cord and the low-volt wires are connected to the vacuum unit from the rear (Figure Exit for power supply cable and consent cable Power supply cord and low for suction points volt wire connections Figure 5. Electrical protection class – Class 1 – Device with fundamental electrical insulation. Must be connected to the grounding circuit of the main electrical system. -
Page 13: Final System Test
NOTE: It is advisable to keep the power supply to the vacuum unit turned on, allowing it to be restarted for subsequent uses. If instead the system will not be used for a long period of time, it is recommended to move the main switch on the control panel to the 0 position. 5.3. -
Page 14: Operation Of The Self-Cleaning System
5.5. Operation of the self-cleaning system Models BC126A and BC238A have a self-cleaning system for the filter that can operate at intervals programmable according to requirements, limiting maintenance to the replacement of the collection bag. A timer controls for frequency of daily cleaning of the filter (Figure 3). Operation of the device is triggered by a compressor that feeds a pressure tank with a capacity of three liters of air up to a predetermined pressure of 5 bar. -
Page 15: Replacement Of Dust Collection Bag
6.2. Replacement of dust collection bag The dust collection bag inside the separator must be replaced at periodic intervals, as indicated in the “Periodic operations” chart on the previous page. CAUTION: • Before proceeding with replacement operations, a protective mask and gloves must be used. •... -
Page 16: Cleaning Of The Filter Cartridge (Filter)
The replacement procedure for the filter cartridge is as follows: Unhook the lower module of the separator by raising the handle. Extract the lower module of the separator by allowing it to slide on its wheels with the assistance of the handle provided. Unscrew the black knob holding the filter cartridge in position. -
Page 17: Problems, Causes And Remedies
PROBLEMS, CAUSES AND REMEDIES Problem Cause Remedy No suction power from any of Power supply cable Connect the power supply cable the suction points disconnected Clogged filter Replace or clean the filter cartridge Uninterrupted succession of Check for the possible presence Replace defective inlet valve starts and stops of defective suction points... -
Page 18: End Of Service And Decommissioning
END OF SERVICE AND DECOMMISSIONING When the device has terminated its cycle of use and must be decommissioned, follow these instructions to protect the environment: The presence of this symbol on the product or on the pack indicates that the product must not be treated as normal household refuse, but must be taken to a suitable collection centre for the recycling of electrical and electronic devices. - Page 20 For additional product information visit www.beamcommercial.com Sold and serviced by: © 2013 Electrolux Home Care Products Ltd.
