USER MANUAL
Alliance Central Vacuum System
EN
DOC-701-INTBM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alliance Central and is the answer not in the manual?

Questions and answers

Related Manuals for Beam Alliance Central

Summary of Contents for Beam Alliance Central

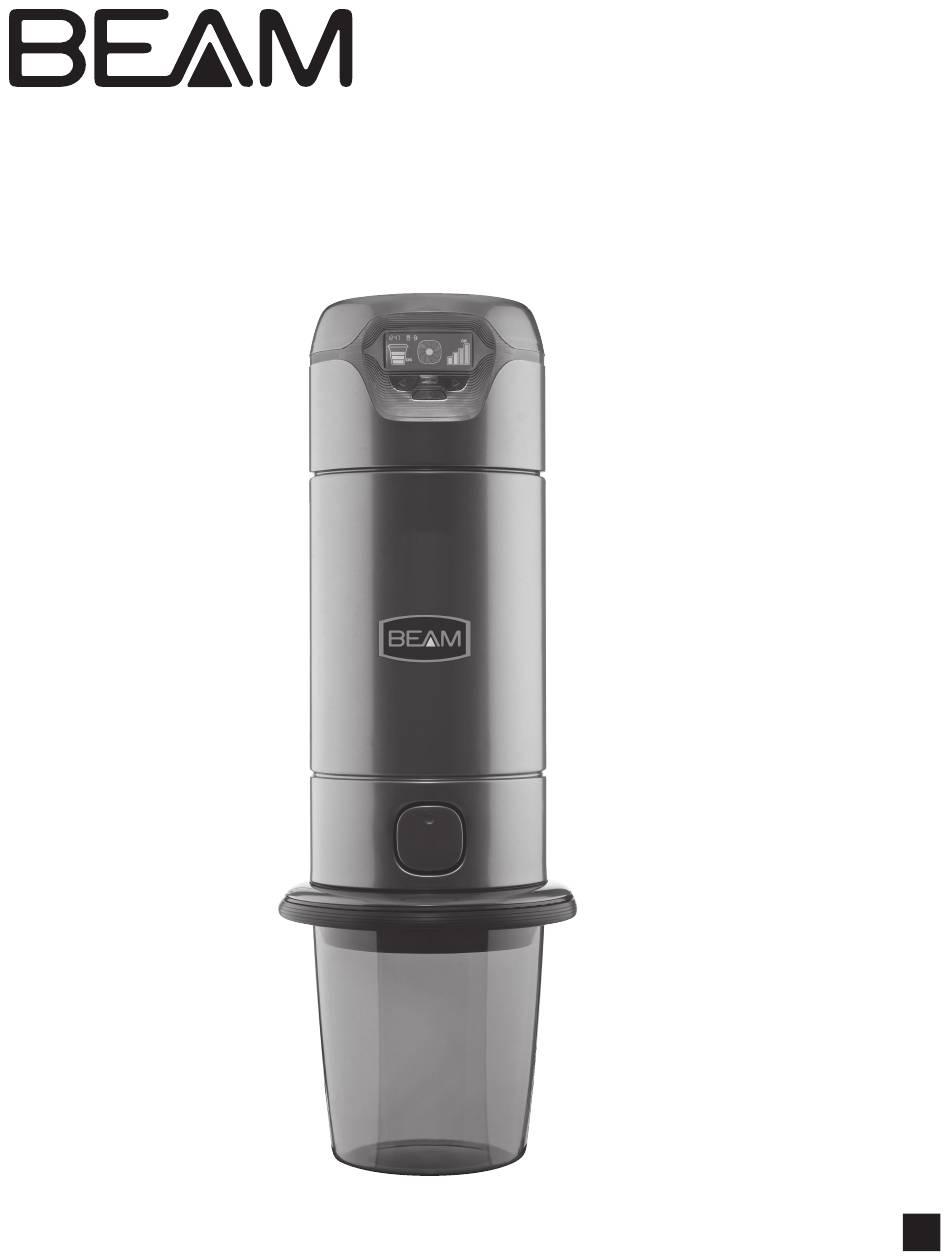

  • Page 1 USER MANUAL Alliance Central Vacuum System DOC-701-INTBM...

  • Page 2: Table Of Contents

    Say “goodbye” to old-fashioned sweepers . You’ll never have to lug a heavy, awkward vacuum again . Your BEAM Central Vacuum System will change your cleaning routine . From its ease of use and versatility, to its quiet and dust-free operation, your BEAM will help eliminate the drudgery of vacuuming and give you a cleaner, healthier indoor environment .

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS When using an electronic appliance, basic safety precautions should always be followed, including those listed below . READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM SYSTEM. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: • This vacuum cleaner is intended for dry pick up only . Do not use on wet surfaces or pick up any liquids, hot debris or any flammable items that would cause harm to the vacuum cleaner .

  • Page 4: General Information

    GENERAL INFORMATION The central vacuum system is designed for dry pick up of household dirt and dust and is not intended to pick up liquids . Avoid picking up hard or sharp objects with the system to prevent hose and plastic pipe damage or clogs .

  • Page 5: Grounding Instructions

    GROUNDING INSTRUCTIONS This vacuum must be grounded (earthed) . If it should malfunction or breakdown, grounding (earthing) provides a path of least resistance for the electric current to reduce the risk of electric shock . This vacuum is equipped with a cord having an equipment-grounding conductor and grounding (earthing) plug . The plug must be inserted into an appropriate outlet that is properly installed and grounded (earthed) in accordance with all local codes and ordinances .

  • Page 6: Installation

    INSTALLATION Planning If your home already has a system of plastic pipes and inlet valves, you are ready to install the power unit . If not, you can contract a profes- sional to have the central vacuum system installed . Contact your local authorized dealer/distributor if you have any questions .
  • Page 7 INSTALLATION Intake Flange Your power unit has been designed for either a left or right pipe intake . If the pipe from your house is located on the right side of the power unit, you will need to change the direction of the intake flange .
  • Page 8 INSTALLATION Optional HEPA Filter Installation 1 . To properly install the optional HEPA filter, secure the 90° elbow to the body of the HEPA filter with the Torx 20 screw provided . 2 . Secure both the 90° elbow and HEPA filter to the back of the power unit using the second Torx 20 screw provided .
  • Page 9 . Motor The BEAM Alliance central vacuum system is equipped with a flow-thru motor and will never need lubrication . Should you experience any motor problems, please contact your local authorized dealer/distributor .

  • Page 10: Care And Maintenance

    CARE AND MAINTENANCE Optional Disposable Bag Your vacuum may be equipped with a disposable filter bag, which can be discarded when full . A full filter bag will reduce the vacuum and minimize performance . Empty the filter bag 2-3 times a year depending, on how much dirt is collected .

  • Page 11: Troubleshooting

    TROUBLESHOOTING Automatic Shut-Off If the central vacuum power unit is unintentionally left ON for a prolonged period, the operating system has an automatic 30 minute shutoff timer . The shutoff timer will automatically reset when the system is turned on by the hose or power unit . To protect the power unit from overheating, the operating system has a thermal protection shutoff and will automatically turn OFF the vacuum .

  • Page 12: Beam Alliance Led/Lcd Icon Chart

    BEAM ALLIANCE LED/LCD ICON CHART SYMBOL DESCRIPTION AVAILABILITY MEANING ACTION REQUIRED ON/OFF Button Standard Turns power unit on or off . None Navigation Buttons On select models These buttons are located below Scroll through using Left ( < ) or the display screen .

  • Page 13: Instructions For Beam Alliance Hose Handle

    NOTE: The BEAM Alliance hose and hose handle will only function with a BEAM Alliance central vacuum system . If you received an Alliance hose and do not have a BEAM Alliance power unit, please contact your local authorized BEAM dealer/distributor to obtain the proper hose for your central vacuum system .

  • Page 14: Service Information

    SERVICE INFORMATION The instructions in this booklet serve as a guide for routine operation and maintenance . For more information, contact your local authorized dealer/distributor . Service Warranty Warranty service is managed by your local authorized dealer/distributor . For additional product information visit beamvac.com Sold and serviced by: 2019 .
