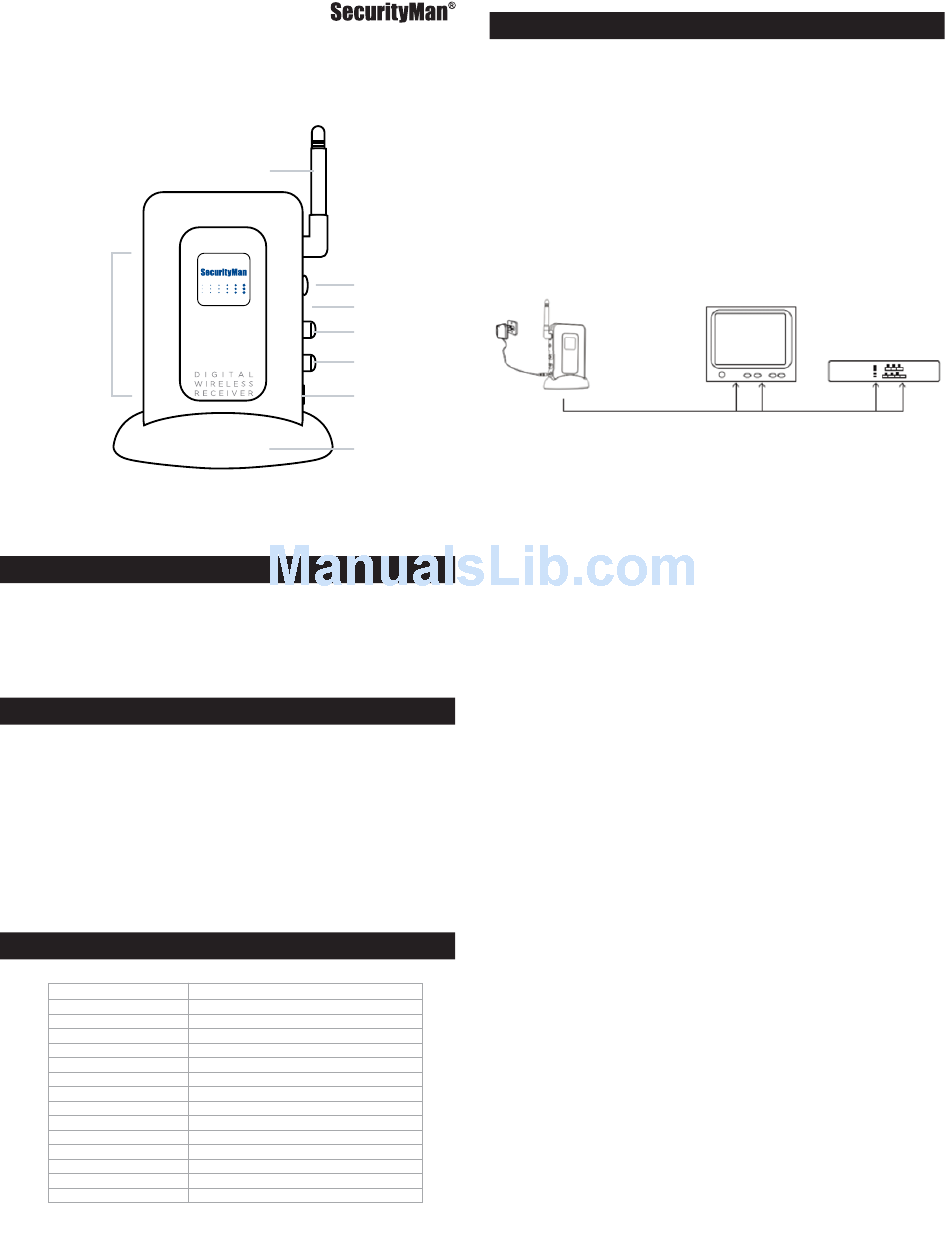

SecurityMan SM-451DR User Manual

SM-451DR
Add-on 2.4GHz digital wireless receiver
(for DigiminiAir and DigioutAir)
LED
Lights
Note: Please see DigiminAir/DigioutAir manual for detailed instructions.
Product Contents
• 1 x SM-451DR receiver with antenna
• 1 x AV cable
• 1 x Power adapter
• 1 x User's manual
Features
• Compatible with SM-703DT & SM-209DT digital wireless cameras
• AV output RCA interface from receiver to monitor for live
display or to a recorder
• Digital wireless pairing channel (Ch1/Ch2/Ch3/Ch4) camera
and receiver, worry-free of signal interception
• One receiver supports up to four digital wireless cameras
(switching one camera at a time)
• Video signal loss alert notification
Specifications
Channel Button
Pairing Button
AV Output
Power Supply
Dimensions (LxWxH)
Stand
Frequency
Transmission power
Receiver Sensitivity
Modulation
Antenna
Transmission Distance
Operating Temperature
Operating Humidity
Antenna
Channel Button
Pairing Button
Audio Output
Video Output
Power Socket
Docking Stand
1 CH button (Manually Select CH1~CH4)
1
1 x Video out (RCA); 1 x Audio out (RCA)
DC 5V / 1.5A
4.2" x 2.7" x 0.9"
1 x docking stand
ISM 2400 – 2480 MHz (CH1/CH2/CH3/CH4)
17 dBm
≤ -85dBm
GFSK
Omni 3dBi
Up to 350 ft clear line of sight;
up to 200ft (indoor)
-20°C to 60°C (-4°F to 140°F)
20% -80% RH
Installation
Please follow the receiver setup instruction below and then reference
the DigiminiAir/DigioutAir user's manual on how to pair the SM-451DR
digital receiver to the compatible cameras (SM-209DT and SM-703DT)..
Receiver Installation (SM-451DR)
1. Plug the receiver power supply (5VDC, 1.5A) to the receiver's DC IN
port and the other end to an electrical power outlet. Next, connect
the AV cable out from the receiver to your TV/monitor or recording
devices (VCR or DVR) AV input.
Note: To power on the receiver, simply plug in the power supply, the
receiver do not have power ON/OFF switch. Make sure all cords are
connected, tight and that you are following the proper color coding
(Video/Yellow, Audio/White or Red)
AV Output to
TV/DVR/VCR
2. Turn on your TV/monitor and set it to the appropriate input channel.
The TV/monitor must be on the A/V Input that you connected the
receiver to. For Example; A/V 1, Input 1, Video 1, Line 1, or Game 1.
Once the TV/monitor is on the proper input channel, and then follow
DigiminiAir/DigioutAir user's manual on how to pair SM-451DR
digital receiver to the digital cameras (SM-209DT/SM-703DT).
Note: To tune your TV/monitor to the proper input channel, you
must do it directly on the TV/monitor itself or with the original
TV remote.
3. By default, the camera is paired to Channel 1. If there is no picture
displayed on your TV/monitor, simply switch the receiver to Channel
1, and press the code-matching buttons on camera and receiver
simultaneously. The camera image will immediately be displayed on
the screen after successfully being matched to the receiver.
Note: Pairing must be done within 20ft.
Input
or
