Q
S
uick
tart
I ntroductIon

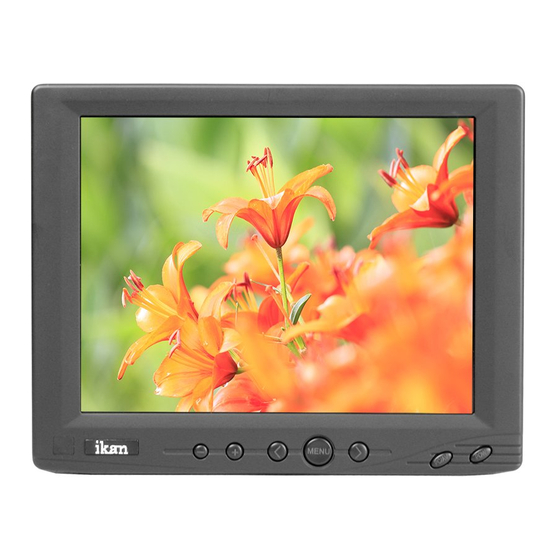

Thank You for purchasing our ikan V8000 LCD monitor. We know you will be satisfied with our
"V" series monitors. Please visit www.ikancorp for more information on our future products including
our award winning fluorescent studio lights and light accessories.
package check lIst
A/V Cable
Remote Control
VGA Cable
AC Adapter
Mounting Rod
Monitor Bracket

gettIng started

1. Getting power to the monitor.
a. Plug the AC adapter into the power input jack on the bottom right corner on the monitor
or through the break out cable.
2. Connecting the A/V (audio/Video)
a. Plugging up the breakout cable to the bottom of the monitor gives you many modes for video input.
(You can switch from these modes by pressing the "PC/AV" button on the monitor)
for the touchscreen model
1.When you purchase The ikan V8000T you will receive a CD-ROM with drivers to different operating systems.
2.When you view the contents on the CD-ROM, you will see a folder titled "GL-619-EN". After, you open that folder
you will see a list of folders with the appropriate operating systems that you need.
3.Once, you have open the folder with your operating system double click on the setup file. This will
take you through the installation.
4.Follow the installation directions. If you need additional help installing drivers there is a folder
in the CD-ROM titled "Manuals". After, you have opened the "Manual" folder double click on the appropriate
Operating system manual file. If you need additional help please call us at 1-713-272-8822.
5. Plug up the black VGA cable to you computer and plug the USB plug to you computer also.
6. Once all is plugged in open TouchKit software. Now, you can customize the touchscreen to your monitor.
Video Modes
Video-1
Video-2
S-Video
VGA-Mode
Menu
Access to all the monitor settings "horizontal shift, color, etc."
>
When left pressed for a few seconds flips the image vertical. Toggles
through menu.
<
When left pressed for a few seconds flips the image horizontal. Toggles
through menu.
+
Increases the volume of the monitor.
Decreases the volume of the monitor.
_
Power
Powers up the monitor.
PC/AV
Toggles through the different video modes.
3903 Stoney Brook Dr. Houston Tx, 77063. 1-713-272-8822, support@ikancorp.com © 2007 ikan corporation. All rights reserved. www.ikancorp.com
G
/ V8000 / T
uide
Checked by
v 8000 t
Description
The yellow AV cable is your Video-1
The red AV cable is your Video-2
This enables you to use an S-Video cable
Using the VGA cable enables you to use you computer as a video source.
-
+
MENU
