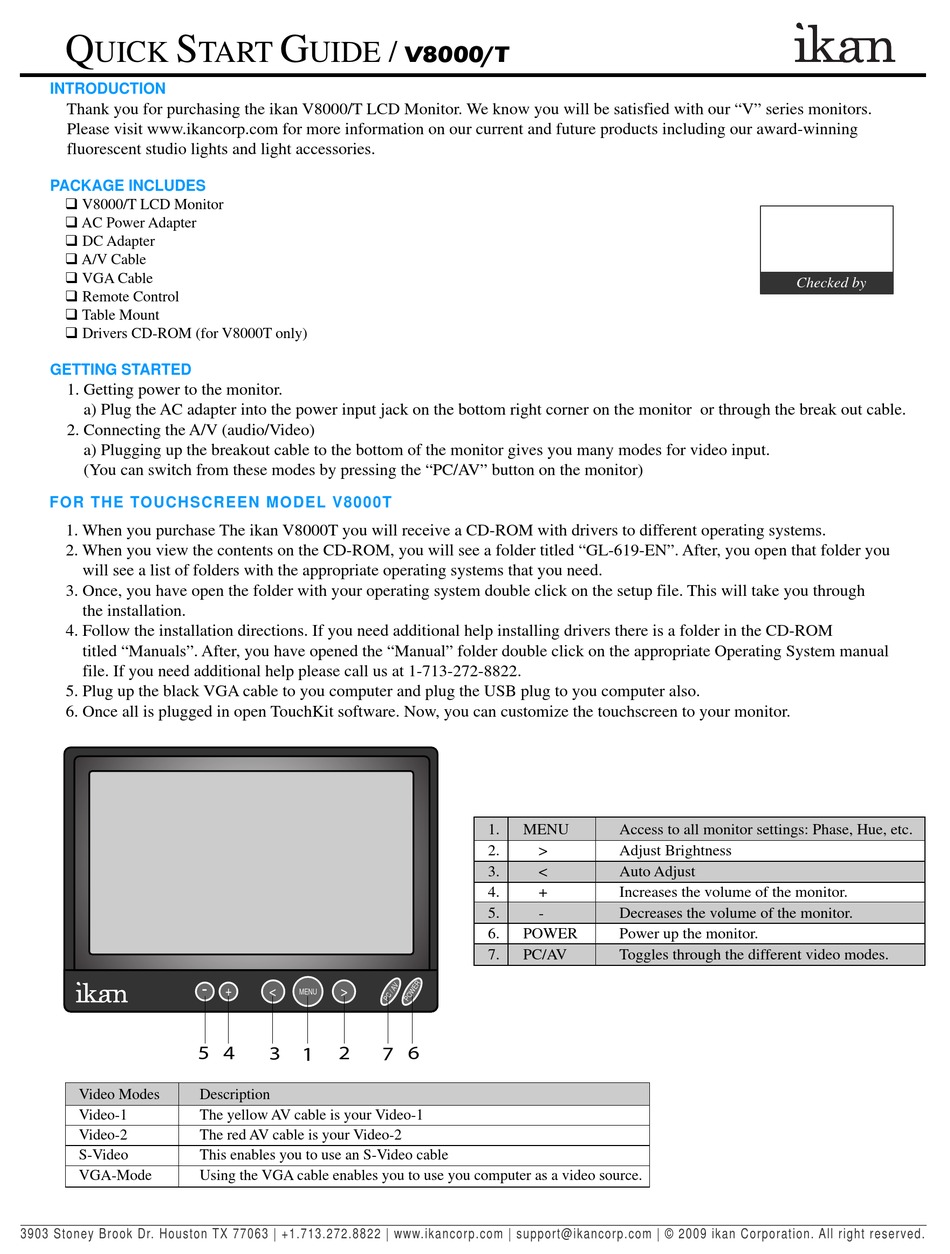

Q
S
UICK
TART
INTRODUCTION

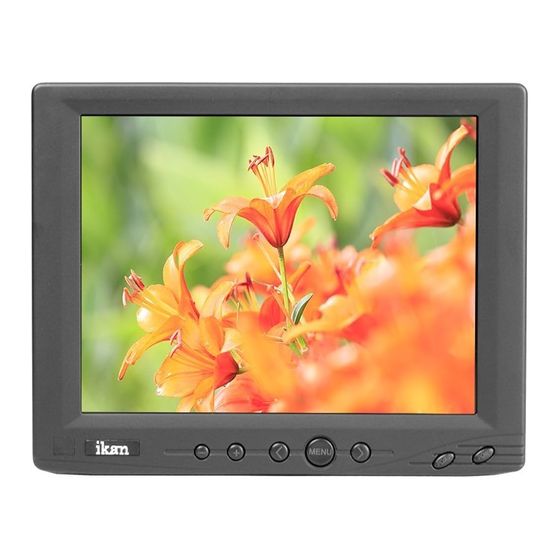

Thank you for purchasing the ikan V8000/T LCD Monitor. We know you will be satisfied with our "V" series monitors.
Please visit www.ikancorp.com for more information on our current and future products including our award-winning
fluorescent studio lights and light accessories.
PACKAGE INCLUDES
 V8000/T LCD Monitor
 AC Power Adapter
 DC Adapter
 A/V Cable
 VGA Cable
 Remote Control
 Table Mount
 Drivers CD-ROM (for V8000T only)
GETTING STARTED
1. Getting power to the monitor.
a) Plug the AC adapter into the power input jack on the bottom right corner on the monitor or through the break out cable.
2. Connecting the A/V (audio/Video)
a) Plugging up the breakout cable to the bottom of the monitor gives you many modes for video input.
(You can switch from these modes by pressing the "PC/AV" button on the monitor)
FOR THE TOUCHSCREEN MODEL V8000T
1. When you purchase The ikan V8000T you will receive a CD-ROM with drivers to different operating systems.
2. When you view the contents on the CD-ROM, you will see a folder titled "GL-619-EN". After, you open that folder you
will see a list of folders with the appropriate operating systems that you need.
3. Once, you have open the folder with your operating system double click on the setup file. This will take you through
the installation.
4. Follow the installation directions. If you need additional help installing drivers there is a folder in the CD-ROM
titled "Manuals". After, you have opened the "Manual" folder double click on the appropriate Operating System manual
file. If you need additional help please call us at 1-713-272-8822.
5. Plug up the black VGA cable to you computer and plug the USB plug to you computer also.
6. Once all is plugged in open TouchKit software. Now, you can customize the touchscreen to your monitor.
5
Video Modes
Video-1
Video-2
S-Video
VGA-Mode
3903 Stoney Brook Dr. Houston TX 77063 | +1.713.272.8822 | www.ikancorp.com | support@ikancorp.com | © 2009 ikan Corporation. All right reserved.
G
UIDE /
-
<
>
+
MENU
4
3
2
1
Description
The yellow AV cable is your Video-1
The red AV cable is your Video-2
This enables you to use an S-Video cable
Using the VGA cable enables you to use you computer as a video source.
V8000/T
1.
MENU
2.
>
3.
<
4.
+
5.
-
6.
POWER
7.
PC/AV
6
7
Checked by
Access to all monitor settings: Phase, Hue, etc.
Adjust Brightness
Auto Adjust
Increases the volume of the monitor.
Decreases the volume of the monitor.
Power up the monitor.
Toggles through the different video modes.
