- Page 1 PEDAL POWER ISO-5 User’s Manual www.voodoolab.com...
- Page 2 This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form without the express prior consent in writing from Digital Music Corporation. Voodoo Lab and Pedal Power are trademarks of Digital Music Corp.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Unpacking Connections DC Power Cables Boss Pedals Line 6 Modeling Pedals TC Electronic Eventide . Additional Cables Isolation . Specifications . Warranty . How to Reach Us... -
Page 4: Introduction

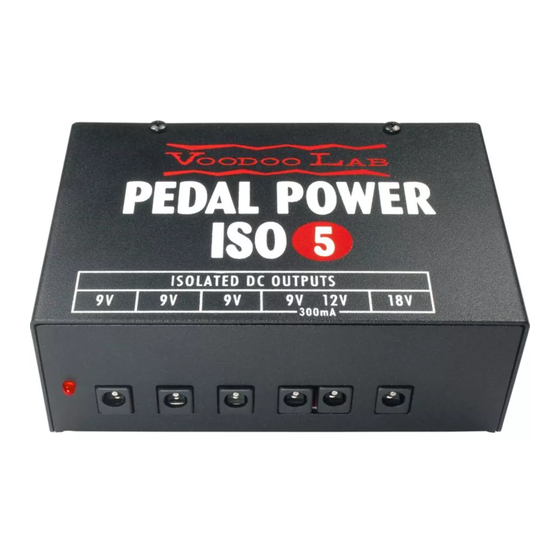

Introduction Pedal Power ISO-5 is an isolated power supply for powering guitar pedal effects and accessories. Its compact design is perfect for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards. Pedal Power ISO-5 features five independent, filtered and regulated output sections, which will keep even the most sensitive vintage and boutique analog pedals dead quiet. -
Page 5: Connections
Connections Pedal Power ISO-5 is powered directly from mains using the supplied AC line cord. This is a standard computer-type IEC line cord, so it’s easy to obtain a replacement or different length. Important: Pedal Power ISO-5 is manufactured to operate from a specific supply voltage (100V, 120V or 240V) which is marked on the bottom of the unit. -
Page 6: Dc Power Cables
“center positive” are the Fulltone ‘69, SoulBender, and Octafuzz pedals and Moogerfoogers. Reverse polarity cables are available from Voodoo Lab to properly power these pedals. Boss Pedals There are two types of Boss pedals which operate from a 9V battery. These are identified by the type of power supply specified, either PSA or ACA. -
Page 7: Tc Electronic
The DC power cables supplied with your ISO-5 are suitable for most common pedal effects. If you need additional cables, different lengths, reversed polarity, or a special connector, these are available from Voodoo Lab. Visit www.voodoolab.com/cables.htm for more information. - 5 -... -
Page 8: Isolation
Isolation Pedal Power ISO-5 has has five isolated output sections. This is sometimes referred to as “galvanic isolation” and means that there is no direct electrical connection between each output. Similarly, when you power your effects with batteries, they are also isolated because there is no electrical connection between the batteries. -
Page 9: Specifications
Specifications Input: IEC connector 120V 50/60Hz (North America model) 100V 60Hz (Japan model) 230V 50/60Hz (Europe/Australia model) Model and input power are marked on the bottom of unit. Outputs: 5.5x2.1mm barrel connectors center negative Short circuit protected. 9VDC (3) - 100mA 9 and 12VDC - 300mA 18VDC - 100mA Physical:... -
Page 10: Warranty
Should you experience any difficulty with this Voodoo Lab product, contact us as described below. If it is determined that the product must be returned to the factory for repair, you will be issued an RMA and given shipping and packaging instructions.
