Back Panel - Voodoo Lab Guitar Preamp Owner's Manual

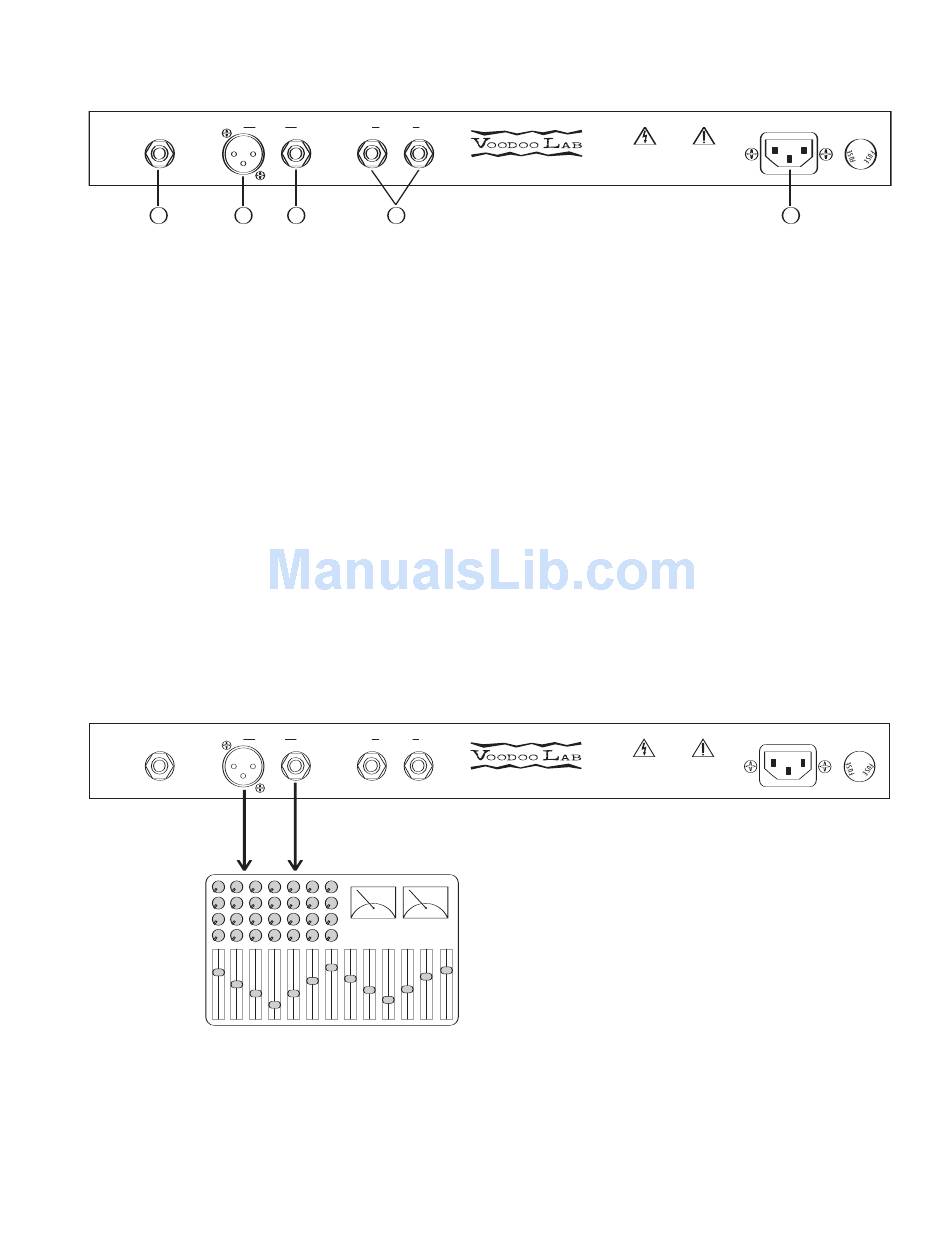

BACK PANEL

FOOTSWITCH DIRECT OUT
1 2
1. Footswitch Jack –
2. Direct Out 1 – balanced XLR with Cabinet Simulator
3. Direct Out 2 – unbalanced
4. Preamp Out (2) – standard
5. AC In – AC power input jack – this is a standard "IEC-style" connector
CONNECTIONS
Here are some of the possible ways that your Preamp can be configured into your setup:
RECORDING:
FOOTSWITCH DIRECT OUT
Balanced
XLR
PREAMP OUT
3 4
1 ⁄ " TRS input jack for footswitch
4
1 ⁄ " with Cabinet Simulator
4
1 ⁄ " outputs
4
Direct out to recording console setup
PREAMP OUT
Unbalanced
1/4"
To prevent electrical shock, do not remove cover.
No user serviceable parts inside. Refer servicing
GUITAR PREAMP
to qualified service personnel.
MADE IN U.S.A.
To prevent electrical shock, do not remove cover.
No user serviceable parts inside. Refer servicing
GUITAR PREAMP
to qualified service personnel.
MADE IN U.S.A.
AC IN (100W MAX)
CAUTION
5
AC IN (100W MAX)
CAUTION
FUSE
F U S E
1 AMP
FUSE
FUSE
1 AMP
3
