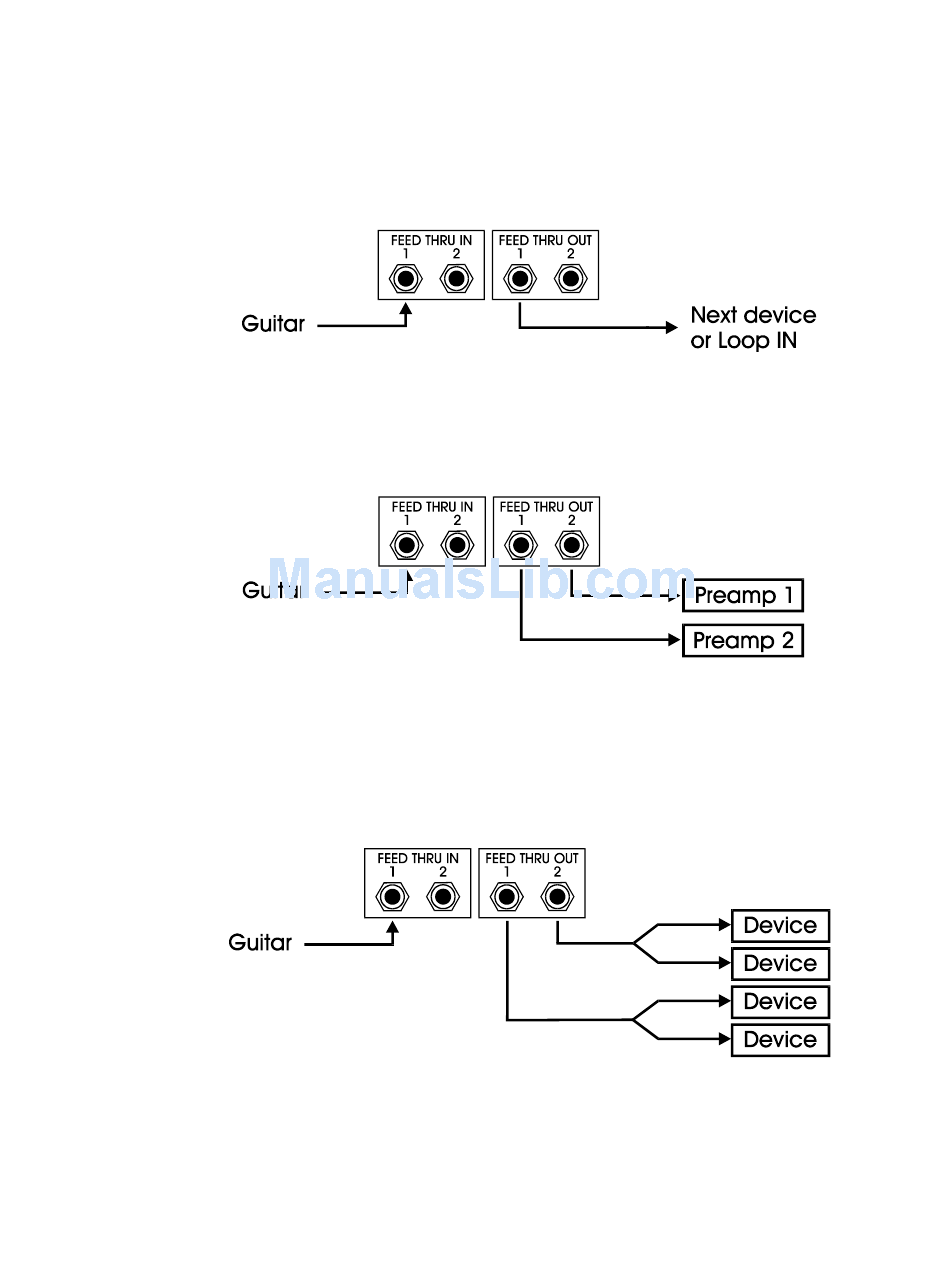

The following diagrams show some common examples of buffered feed thru
connections.
Example 1. Using with one instrument:
The guitar signal passes from
Example 2. Splitting from one instrument to two devices:
Since the two feed thru's are normalled together, the guitar signal passes from
GUITAR IN
to both
Example 3. Splitting to more than two devices using Y-cables:
Because GCX feed thru's have low impedance outputs, you can drive multiple
devices from each output. In this example, the guitar signal passes to all four
devices using two Y-cables.
D I G I T A L M U S I C C O R P O R A T I O N
GUITAR IN
GUITAR OUT
and
FEED THRU
to
.
GUITAR OUT
.
6
