IMPORTANT MANUAL
OWNER'S MANUAL

MODEL NUMBER:

627
P

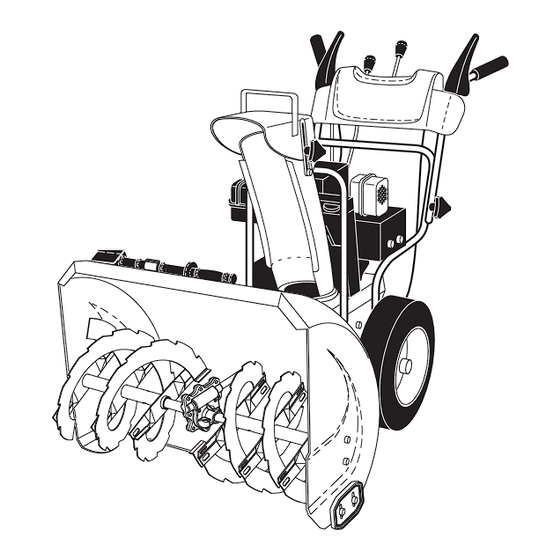

SNOW THROWER
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
Always Wear Eye Protection During Operation
585 23 03-27
ES
Do Not Throw Away
WARNING:
Read the Owner's Manual and
fol low all Warnings and Safety
In struc tions. Fail ure to do so
can result in serious injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P627ES and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro P627ES

Summary of Contents for Poulan Pro P627ES

  • Page 1: Model Number

    IMPORTANT MANUAL Do Not Throw Away OWNER'S MANUAL WARNING: MODEL NUMBER: Read the Owner's Manual and fol low all Warnings and Safety In struc tions. Fail ure to do so can result in serious injury. SNOW THROWER Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.

  • Page 2: Safety Rules

    IMPORTANT Safe Operation Practices for Walk-Behind Snow Throwers This snow thrower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. WARNING: Snow throwers have ex- Look for this symbol to point out im- posed rotating parts, which can cause por tant safety precautions.

  • Page 3: Table Of Contents

    Clearing a Clogged Discharge Chute 6. When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the collector/impel- Hand contact with the rotating impeller inside the discharge ler and all moving parts have stopped. Disconnect chute is the most common cause of injury associated with the spark plug wire and keep the wire away from the snow throwers.

  • Page 4: Assembly / Pre-Operation

    PARTS PACKED SEPARATELY IN CARTON (1) MULTI- WRENCH (180684) (1) POWER CORD (198563) (1) DISCHARGE CHUTE (1) RETAINER SPRING (169675) ROTATOR HEAD MOUNTING (2) FLAT WASHERS SAFTEY IGNITION KEY(S) (443059) (1) WASHER 3/8 (1) LOCKNUT 3/8 (19131316) (73800600) (2) CARRIAGE BOLTS 3/8-16 x 2.25 EXTRA SHEAR BOLTS AND NUTS (2) SHEAR BOLTS 1/4-20 x 1-3/4...
  • Page 5 ASSEMBLY / PRE-OPERATION INSTALL TRACTION DRIVE CONTROL ROD NOTE: The multi-wrench may be used for assembly of the (See Figs. 3 and 4) chute rotator head to snow thrower and making ad just ments to the skid plates. The traction drive control rod is installed on the snow thrower. UNFOLD UPPER HANDLE 1.
  • Page 6 ASSEMBLY / PRE-OPERATION INSTALL DISCHARGE CHUTE / CHUTE ROTATER INSTALL AUGER CONTROL ROD (See Figs. 5 and 6) HEAD (See Fig. 7) The auger control rod is installed on the snow thrower. NOTE: The multi-wrench provided in your parts bag may 1.

  • Page 7: Operation

    OPERATION KNOW YOUR SNOW THROWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product.
  • Page 8 OPERATION MUF FLER ELECTRIC AUGER DISCHARGE CHUTE CONTROL LEVER START CONTROL BUTTON LEVER GAS O LINE TRACTION DRIVE SPEED FILLER CAP DRIVE CON TROL LEVER POWER CONTROL CORD LEVER PLUG CHOKE CHUTE CON- DE FLEC TOR TROL SAFETY IGNITION ON / OFF SWITCH DISCHARGE PRIM ER...
  • Page 9 OPERATION The operation of any snow thrower can result TO CONTROL SNOW DISCHARGE (See Figs. 11 & 12) in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear WARNING: Snow throwers have ex- safety glasses or eye shields while operating posed rotating parts, which can cause your snow thrower or performing any ad just- severe injury from contact, or from ma-...

  • Page 10: Using The Clean-Out Tool

    OPERATION TO THROW SNOW (See Fig. 13) TO MOVE FORWARD AND BACKWARD (See Fig. 15) The auger rotation is controlled by the auger control lever SELF-PROPELLING, forward and reverse movement of located on the right side handle. the snow thrower, is controlled by the traction drive control lever located on the left side handle.

  • Page 11: Before Starting The Engine

    OPERATION ADD GASOLINE (See Fig. 17) TO ADJUST SKID PLATES (See Fig. 16) • Fill fuel tank to bottom of tank filler neck. Do not over- NOTE: The wrench provided in your parts bag may be fill. Use fresh, clean, regular unleaded gasoline with used to adjust the skid plates.

  • Page 12: Snow Throwing Tips

    OPERATION TO START ENGINE 6. When the engine starts, release the recoil starter han dle and slowly move the choke control to the “OFF” posi- • Be sure fuel shut-off valve is in the “OPEN” position. tion. Your snow thrower engine is equipped with both a 120 Volt Allow the engine to warm up for a few minutes.

  • Page 13: Maintenance Schedule

    MAINTENANCE GENERAL REC OM MEN DA TIONS LUBRICATION CHART The warranty on this snow thrower does not cover items that have been sub ject ed to operator abuse or negligence. ➀ SAE 30 Motor Oil To receive full value from the warranty, operator must ➁...

  • Page 14: Cleaning

    MAINTENANCE BELTS TO CHANGE ENGINE OIL Check belts for deterioration and wear after every 50 hours Determine temperature range anticipated before next oil of operation and replace if necessary. The belts are not change. All oil must meet API service classification SG–SL. ad just able.

  • Page 15: Service And Adjustments

    SERVICE AND ADJUSTMENTS To replace the capscrew/shear bolts: WARNING: To avoid serious injury, 1. Disengage all controls and move throttle control to before performing any service or ad- STOP position. Wait for all moving parts to stop. just ments: 2. Remove safety ignition key and disconnect spark plug 1.

  • Page 16: To Replace Belts

    SERVICE AND ADJUSTMENTS TO REPLACE BELTS (See Fig. 20) 8. RELIEVE TENSION ON TRACTION DRIVE BELT IDLER and remove traction drive belt from around The auger and traction drive belts are not adjustable. If pulleys. the belts are damaged or begin to slip from wear, they HINT: Insert a 3/8"...
  • Page 17 SERVICE AND ADJUSTMENTS TO REMOVE WHEELS (See Fig. 21) TO ADJUST CABLE TENSION (See Fig. 23) • Remove the wheel pin and retainer pin and remove Adjust cable tension by turning the adjuster turn buckle, wheel from axle. located on the right hand cable. Grasp the long section tightly and turn the short section to lengthen the adjuster.

  • Page 18: Storage

    STORAGE Immediately prepare your snow thrower for storage at • Empty the fuel tank by starting the engine and letting it run until the fuel lines and car bu re tor are empty. the end of the season or if the unit will not be used for 30 days or more.

  • Page 19: Troubleshooting

    TROUBLESHOOTING See appropriate section in manual unless directed to an authorized service center/department. PROBLEM CAUSE CORRECTION Does not start 1. Fuel shut-off valve (if so 1. Turn fuel shut-off valve to OPEN position. equipped) in OFF position. 2. Safety ignition key 2.

  • Page 20: Repair Parts

    REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) AUGER HOUSING / IMPELLER ASSEMBLY 2 (EXPLODED) 01.07.032-A NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
  • Page 21 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 18 41-05 IMPELLER 584 64 83-01 GEARBOX ASSEMBLY 532 18 89-09 BEARING 585 09 32-01 IMPELLER PULLEY 532 44 24-38 DISCHARGE BASE...
  • Page 22 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 41 52-71 AUGER HOUSING 27 532 40 77-27 SCRAPER BAR 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625 532 15 53-77 NUT 5/16−18...
  • Page 23 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 532 42 04-78 AUGER BEARING 532 41 19-39 BEARING PLUG 532 17 95-82 SCREW 5/16−18 X 1.00 01.07.024-B PART DESCRIPTION 532 43 59-51...
  • Page 24 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) CONTROL PANEL / CHUTE PART DESCRIPTION 532 44 36-24 CHUTE WELDMENT 532 18 45-11 DEFLECTOR WELDMENT 532 42 03-25 DEFLECTOR SEAL 532 18 41-14 STRAP 532 19 19-38 KNOB BLACK...
  • Page 25 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) CONTROL PANEL / CHUTE 01.09.010-C PART DESCRIPTION 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY 817 54 10-08 SCREW 10-24 X .625 532 42 06-78 ROTATOR HEAD 532 40 59-32 ROTATOR PIVOT BRACKET...
  • Page 26 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) HANDLES PART DESCRIPTION 532 42 10-69 PLOW HANDLE LH 532 42 10-70 PLOW HANDLE RH 532 42 91-48 PANEL BRACKET LH 532 42 91-49 PANEL BRACKET RH 532 19 95-13...
  • Page 27 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) HANDLES 01.08.021-A PART DESCRIPTION 585 19 88-02 CONTROL PANEL 581 77 98-01 LH CONTROL LEVER 581 77 97-01 RH CONTROL LEVER 584 80 90-01 INTERLOCK CONTROL ROD 585 00 47-03...
  • Page 28 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) HANDLES PART DESCRIPTION 584 80 87-01 ROD IMPELLER CONTROL 584 80 88-01 ROD TRACTION CONTROL 532 18 04-45 SHIFTER ROD TOP 532 18 77-16 SHIFTER ROD BOTTOM 532 18 04-47...
  • Page 29 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) HANDLES PART DESCRIPTION 532 18 33-52 CONSOLE PANEL 532 18 44-71 SCREW 10−24 X .625 532 17 52-62 SCREW 10−24 X 1.25 01.10.001-B PART DESCRIPTION 532 41 62-88 INTERLOCK SPRING...
  • Page 30 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) DRIVE ITEM 42 EXPLODED 14 15 01.02.013-F NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty.
  • Page 31 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) DRIVE PART PART DESCRIPTION DESCRIPTION 532 19 88-75 SPEED SELECTOR ASSEMBLY 532 17 53-44 BEARING 817 54 10-08 THRED ROLLING SCREW 532 17 86-13 WHEEL HUB 10-24 X .500 874 76 05-14 SCREW 5/16-18-.875...
  • Page 32 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) DRIVE 01.03.005-C PART DESCRIPTION 532 18 82-26 AXLE ASSEMBLY (assy of 1a,1b) 532 17 93-52 AXLE SHAFT 532 18 42-06 ROLL PIN 3/16 532 40 26-91 SPROCKET 532 44 49-49...

  • Page 33: Chassis/Engine/Pulleys

    REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) CHASSIS / ENGINE / PULLEYS PART DESCRIPTION 532 43 60-67 COMPLETE LCT ENGINE PW2HK18650178E 532 42 92-75 FRAME 01.00.034-A 532 15 04-06 BOLT 3/8-16 532 42 88-67 SCREW 5/16-18 X .750...
  • Page 34 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) CHASSIS / ENGINE / PULLEYS 19 20 01.21.003-F PART PART DESCRIPTION DESCRIPTION 532 40 80-07 IMPELLER BELT 532 40 00-26 WASHER 532 41 97-44 TRACTION BELT 532 05 92-89 WASHER...

  • Page 35: Wheels

    REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) WHEELS PART DESCRIPTION 581 18 53-01 WHEEL ASSEMBLY LH 581 18 54-01 WHEEL ASSEMBLY RH 01.06.018-A NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

  • Page 36: Bag Of Parts

    REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) BAG OF PARTS PART DESCRIPTION 532 19 85-63 POWER CORD 532 16 96-75 RETAINER PIN 532 42 91-12 WRENCH 873 80 06-00 LOCKNUT 3/8−16 819 13 13-16 WASHER 3/8 532 19 20-90 SHEAR BOLT 1/4−20 X 1−3/4...
  • Page 37 REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402) DECALS PART DESCRIPTION 532 18 10-37 DECAL, DANGER 532 18 10-35 DECAL, DANGER, DEFLECTOR 532 18 10-42 DECAL, DANGER 532 18 10-33 DECAL, INSTRUCTION 581 43 01-01 DECAL, CON RT SPD/LEV/PWST...

  • Page 38: Engine Breakdown

    REPAIR PARTS SNOW THROWER - MODEL P627ES (96198004402) COMPLETE ENGINE-532436067 GENII 208 HOP SNOW ENGINE SERVICE KIT PW2HK18650178EABGJOQUVYE1M PW2HK18650178PABGOQUVE1M PW2HK18650178EABGOQUVE1M PW2HK18650178ZABGOQUVZE7M 10 10A *Included with part# 40 Electric Start Only NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
  • Page 39 REPAIR PARTS SNOW THROWER - MODEL P627ES (96198004402) COMPLETE ENGINE-532436067 KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 532 43 65-61 HEATER BOX ASSEMBLY-SNOW 26A 532 42 05-85 FLYWHEEL ASSEMBLY, MANUAL 532 43 65-63 MUFFLER ASSEMBLY-SNOW START-SNOW 532 43 65-64...

  • Page 40: Limited Warranty

    In the event you have a claim under this Warranty, you must return the product to an authorized service dealer. Should you have any unanswered questions concerning this Warranty, please contact: In Canada contact: Poulan Poulan Outdoor Products Customer Service Dept.
