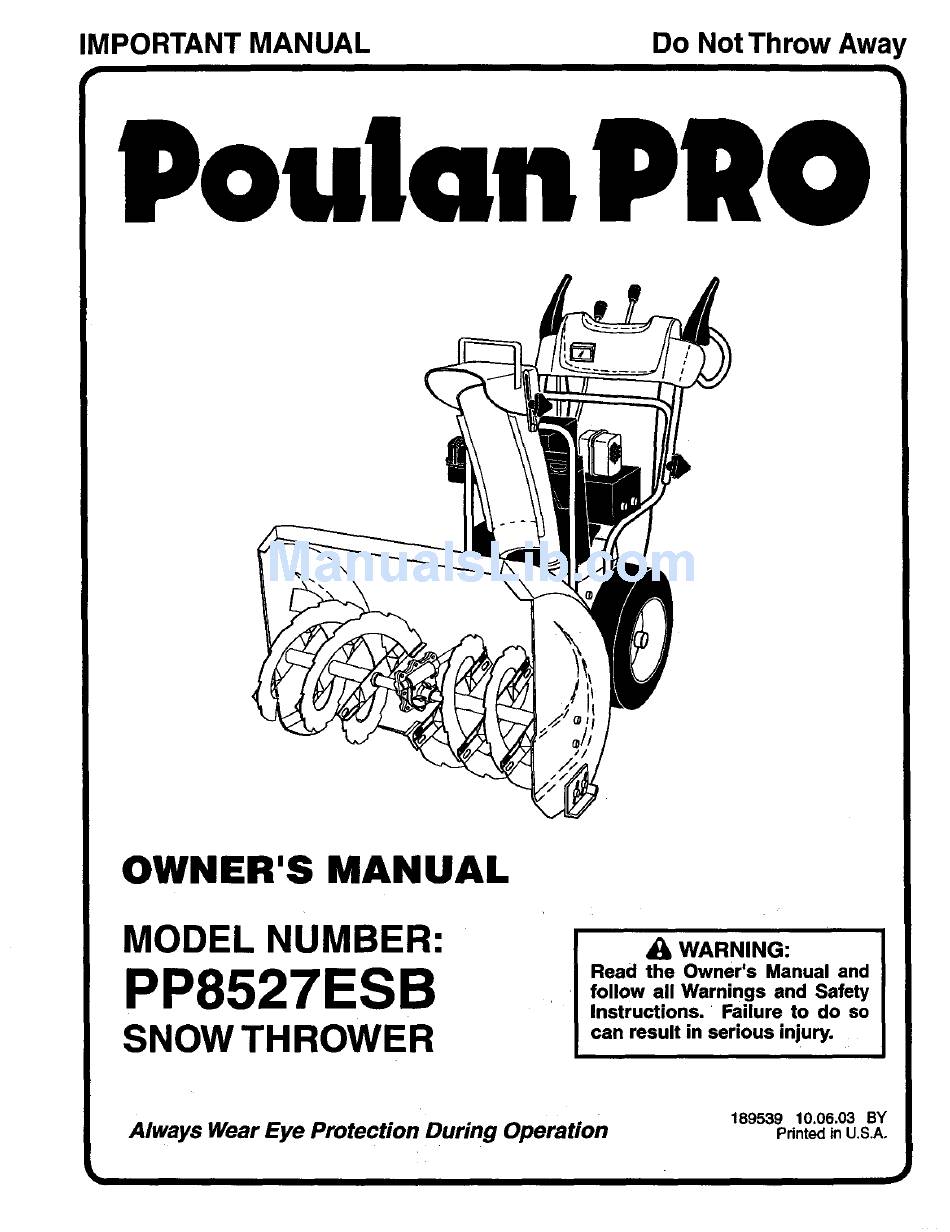

  • Page 1 Do Not Throw Away Poulan OWNER'S MANUAL MODEL NUMBER: • L WARNING: Read the Owner's Manual and PP8527ESB follow all Warnings and Safety Instructions. Failure to do so SNOW THROWER can result in serious injury. Always Wear Eye Protection During Operation 189539pdnted10.06.03in...
  • Page 2 SAFETY RULES Safe Operation Practices for Snow Throwers IMPORTANT: This machine is capable of amputating hands and feet and throwing objects. Failureto observe the following safety instructions could result in serious injury or death. Do not operate the equipment without wearing ade- &...

  • Page 3: Product Specifications

    Do not put hands or feet near or under rotating parts. • Do not overload the machine capacity by attempting to clear snow at too fast a rate. Keep clear of the discharge opening and front auger area at all times. •...
  • Page 4 SAFETY RULES ............MAINTENANCE ............. 14-15 PRODUCT SPECIFICATIONS ........MAINTENANCE SCHEDULE ........CUSTOMER RESPONSIBILITIES ........ SERVICE AND ADJUSTMENTS ......16-18 WARRANTY ..............STORAGE ..............ASSEMBLY / PRE-OPERATION ....... TROUBLESHOOTING ..........OPERATION ............8-13 REPAIR PARTS ............20-31 PARTS PACKED SEPARATELY IN CARTON (1) AUGER CONTROL ROD (1) TRACTION DRIVE CONTROL ROD (1) MULTI-...

  • Page 5: Assembly / Pre-Operation

    ASSEMBLY / PRE-OPERATION Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower. Your new snow thrower has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
  • Page 6 ASSEMBLY / PRE-OPERATION INSTALLTRACTION DRIVE CONTROL ROD INSTALL AUGER CONTROL ROD (See Figs. 5 and 6) (See Figs. 3 and 4) The auger control rod has the short loop on the end of the The traction drive control rod has the long loop on the end spring as shown.
  • Page 7 ASSEMBLY / PRE-OPERATION INSTALL DISCHARGE CHUTE/CHUTE ROTATER HEAD CHECK TIRE PRESSURE (See Fig. 7) The tires on your snow th rower were overinflated at the fac- tory for shipping purposes. Correct and equal tire pressure NOTE: The multi-wrench provided in your parts bag may is important for best snow throwing performance.

  • Page 8: Operation

    OPERATION KNOW YOUR SNOWTHROWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOWTHROWER. Compare the illustrationswith your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand their meaning.

  • Page 9: Safety Requirements

    OPERATION SPARK ENGINE OIL CAP AUGER DISCHARGE CHUTE CONTROL LEVER PLUG -WITH DIPSTICK CONTROL SAFETY LEVER\ DRIVESPEED IGNITION - GASOLINE CONTROL LEVER FILLER TRACTION CHUTE CHOKE DRIVE DEFLECTOR CON- CONTROL LEVER THROI-rLE /ENGINE CONTROL OIL DRAIN PLUG RECOIL POWER (AUXIUAR_ CORD STARTER PLUG...

  • Page 10: How To Use Your Snow Thrower

    OPERATION The operation of any snow th rower can result TO USE CHOKE CONTROL (See Fig. 11) in foreign objects thrown into the eyes, which The choke control is located on the engine. Use the choke can result in severe eye damage. Always wear control whenever you are starting a cold engine.
  • Page 11 OPERATION TO MOVE FORWARD AND BACKWARD (See Fig. 15) SELF-PROPELLING, forward and reverse movement of the snow thrower, is controlled by the traction drive control lever located on the left side handle. Squeeze tractiond rive control lever to handle to engage the drive system.

  • Page 12: Before Starting

    OPERATION TO ADJUST SKID PLATES (See Fig. 16) NOTE:The wrench provided in your parts bag may be used fuel. Do not store, spill or use gasoline WARNING: Wipe off any spilled oil or to adjust the skid plates. near an open flame. Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the ground surface.

  • Page 13: Snow Throwing Tips

    OPERATION COLD START - ELECTRIC STARTER ELECTRIC STARTER Insert safety ignition key into the ignition slot until it Connect the power cord to the engine. clicks. DO NOT turn the key, Keep the extra safety Plug the other end of the power cord into a three-hole ignition key in a safe place.

  • Page 14: Maintenance

    MAINTENANCE Clean / Inspect Snow Thrower I1 / Check for Loose Fasteners Check / Replace V-Belts Lubrication Chart Check Engine Oil Level NE Change Engine Oil Inspect Muffler Check / Replace Spark Plug Empty Fuel Tank GENERAL RECOMMENDATIONS LUBRICATION CHART The warranty on thissnowthrower does not cover items that (_) SAE 30 Motor Oil have been subjected to operator abuse or negligence.
  • Page 15 MAINTENANCE V-BELTS TO CHANGE ENGINE OIL Check V-belts for deterioration and wear after every 50 Determine temperature range anticipated before next oil hours of operation and replace if necessary. The belts change. All oil must meet API service classification SF-SJ. are not adjustable.

  • Page 16: Service And Adjustments

    SERVICE AND ADJUSTMENTS Disengage all controls and move throttle control to WARNING: To avoid serious injury, STOP position. Wait for all moving parts to stop. before performing any service or ad- Disconnect spark plug wire from spark plug and place justments: it wear it cannot come in contact with spark plug.
  • Page 17 SERVICE AND ADJUSTMENTS TO REPLACE BELTS (See Fig. 20) The auger and traction drive belts are not adjustable. If the HINT: Insert a 3/8" drive ratchet (in the "ON" position) into belts are damaged or begin to slip from wear, they should the square hole in idler arm and rotate ratchet clockwise to relieve tension.
  • Page 18 TO REMOVE WHEELS (See Fig. 21) NOTE: To seal punctures or prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts • Remove the klik pin and remove wheel from axle. dealer.Tire sealant also prevents tire dry rotand corrosion. IMPORTANT: When installing wheel, be sure to use the in- nermost hole in axle and the wheel hub hole.

  • Page 19: Troubleshooting

    TROUBLESHOOTING See appropriate section in manual unless directed to a qualified service center. PROBLEM CAUSE CORRECTION Does not start Fuel shut-off valve (if so Turn fuel shut-off valve to OPEN position. equipped) in OFF position. Safety ignition key Insert safety ignition key. is not inserted.
  • Page 20 SNOWTHROWER - MODEL NUMBER PP8527ESB REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY _.51 44 27 23 24...

  • Page 21: Repair Parts

    REPAIR PARTS SNOW THROWER - MODEL NUMBER PP8527ESB AUGER HOUSING / IMPELLER ASSEMBLY KEY PART DESCRIPTION 53847 Washer 181083 Pulley, Impeller 175323 Bearing Assembly, Flange 155377 Nut, Hex Flange 5/16-18 180355 Bolt, Flat Head, Carriage 5/16-18 x 5/8 72270505 Bolt, Carriage...
  • Page 22 REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP8527ESB CONTROL PANEL / DISCHARGE CHUTE ..",..' ..L-"\ _...._.. ".." \ ..".., ',,, ,... " -...
  • Page 23 REPAIR PARTS SNOW THROWER - MODEL NUMBER PP8527ESB CONTROL PANEL / DISCHARGE CHUTE PART DESCRIPTION 183334 Knob, Lever 17501O10 Screw #10-24 x 5/8 179096X479 Strap, Slotted 73800600 Nut, Lock 3/8-16 19131316 Washer, Flat 3/8 178659 Control Assembly, Chute Rotater 178638X479...
  • Page 24 SNOWTHROWER - MODEL NUMBER PP8527ESB REPAIR PARTS HANDLES...
  • Page 25 REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP8527ESB HANDLES PART DESCRIPTION 178875X479 Lever, Auger Control, RH 178648X479 Lever, Traction Drive Control, LH 179439 Nut, Cage 1/4-20 178888 Bushing, Flange 169675 Retainer, Hairpin 180402 Screw, Hex Head 1/4-20 x 3/4 178652 Rod, Interlock...
  • Page 26 REPAIR PARTS SNOW THROWER - MODEL NUMBER PP8527ESB DRIVE...
  • Page 27 REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP8527ESB DRIVE PART DESCRIPTION 146315 Screw, Hex Head 5/16-18 x 3/4 73800500 Nut, Lock 5/16-18 155415 Washer, Flat 17490508 Screw, Hex Head 5/16-18 x 1/2 180017 Bearing, Flange 180134 Shaft, Auxiliary 179270 Spacer, Plate...
  • Page 28 !REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP8527ESB CHASSIS / ENGINE / PULLEYS...

  • Page 29: Engine / Pulleys

    REPAIR PARTS SNOWTHROWER - MODEL NUMBER PP8527ESB CHASSIS / ENGINE / PULLEYS PART DESCRIPTION 181044 Spring, Traction Idler 180522 Pulley, Idler (2-1/4) Engine, Tecumseh, Model Number HMSK85 (Order parts from Engine manufacturer) 74780520 Screw, Hex Head 5/16-18 x 1-1/4 59289...
  • Page 30 SNOW THROWER - MODEL NUMBER PP8527ESB REPAIR PARTS WHEELS / DECALS...
  • Page 31 Washer, Thrust (1 ") NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm KEY, PART DESCRIPTION 181037 Decal, Danger Decal, Poulan Pro, 8.5HP/27" (large) 187871 181035 Decal, Danger, Deflector 181042 Decal, Danger Decal, Poulan Pro, 8.5HP/27" (small)

  • Page 32: Limited Warranty

    LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from de- tects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
