GE Profile Performance CustomStyle TPX24SPBBS Specification Sheet page 2

TPX24SPBBS - GE Profile Performance
Collar Trim Installation
1/2" minimum
70-1/4"*
24-1/2"*
36-1/8"
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
net
24-1/2"* Side panels
Revised 2/99
™ 23.5 Cu. Ft. CustomStyle
Refrigerator
Case
Magnetic
Tape
Door Gasket
Side trim must be installed
flush with the gasket contact
surface on the case.
25"
Counter
Top
Trim
™ Side-By-Side Refrigerator
Overhead
3/4" Cabinet
Cabinet
Side Panel
1/2" Cabinet
Side Panel
Case
Side Trim

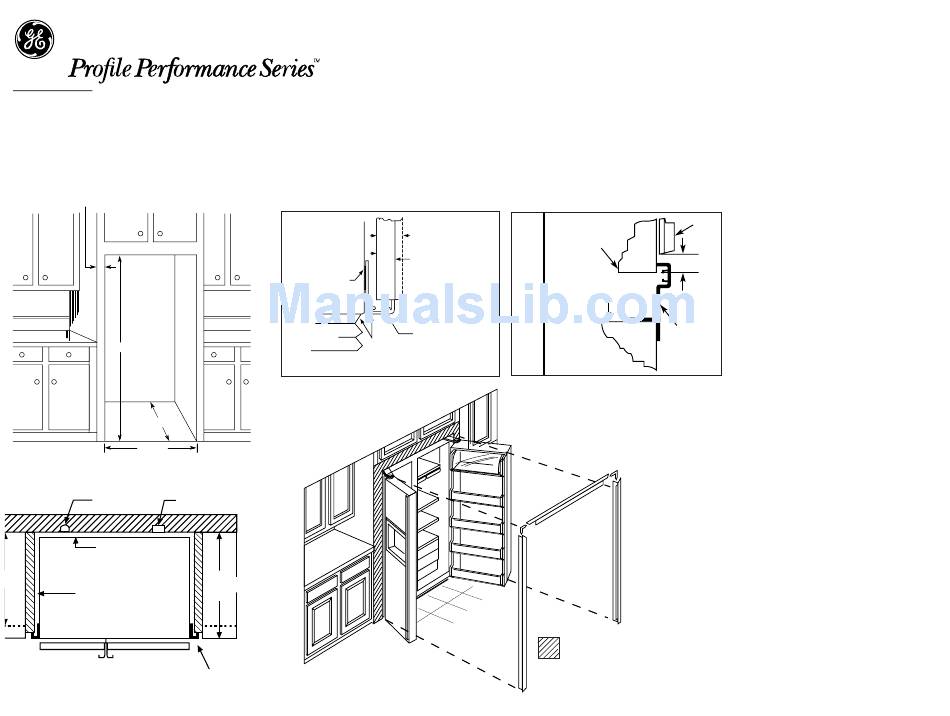

Typical Installation
Shaded areas represent front surfaces
of side panels and overhead cabinet or
soffit that contacts trim.
Collar Trim Installation
Cab
An enclosure is required to match up to the
Doo
trim, see Typical Installation. To obtain the most
integrated look, the cabinet or soffit above the
1"
refrigerator should extend out to the same
depth as the side panels. The refrigerator
opening must have minimum dimensions of
70-1/4" high x 36-1/8" wide x 24-1/4"* deep as
Top shown at right. If there is an overhead cabinet,
allow 1" for cabinet door clearance with the top
Trim
trim piece so the cabinet doors can be opened
without hitting the top trim. If 1/2" side panels
are used, then side trim and panel will be even.
If 3/4" side panels are used, then some of the
side panel will extend beyond the trim and
must be finished.
*24-1/4" depth applies only to the refrigerator opening,
not the actual cabinet depth.
