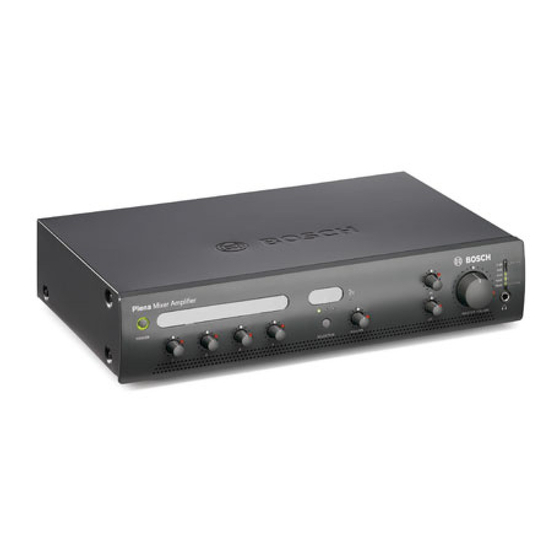

Plena Mixer Amplifier
Installation and User Instructions
en
PLE-1MA030-EU
PLE-1MA060-EU
PLE-1MA120-EU

Advertisement

loading

  Also See for Bosch PLE-1MA030-EU

  Summary of Contents for Bosch PLE-1MA030-EU

  • Page 1 Plena Mixer Amplifier Installation and User Instructions PLE-1MA030-EU PLE-1MA060-EU PLE-1MA120-EU...
  • Page 2: Important Safeguards

    Safety Instructions, which are available as a separate document (9922 141 7014x). These instructions are supplied together with all equipment that can be connected to the mains. Thank you for choosing a Bosch Security Systems product! Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 3: Table Of Contents

    Call only .................................... 20 4.2.3 Master output .................................. 20 4.2.4 Connecting speakers ..............................21 Unit settings ..................................22 4.3.1 Rear panel settings ................................ 22 4.3.2 Pin settings and labelling .............................. 24 Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 4 Emergency / telephone 1 x ............................28 6.1.8 Master/music output 1 x ............................... 28 6.1.9 Loudspeaker outputs 100 V ............................28 6.1.10 Loudspeaker output 8 ohm* ............................28 Mechanical ..................................... 28 Environmental ..................................28 Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 5: Introduction

    Persons can be (severely) injured, or the equipment can be seriously damaged, if the alert is not Caution, Warning, Danger observed. Icon for risk of electrostatic discharge. • Danger Not observing the alert can result in death. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 6: Conversion Tables

    1.3: Conversion of units of pressure 1 psi = 68.95 hPa 1 hPa = 0.0145 psi Note 1 hPa = 1 mbar. °F -- - °C °C -- - °F 32 – Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 7: Description

    For a schematic overview of the Plena Mixer Amplifier, see figure 2.1 on the next page. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 8 Phantom Power 8 Ohm 8 Ohm Click suppression LINE Music/Line Bal. output LINE LINE 1(disc) 2(radio) LINE 3(aux) 115V,230V figure 2. 1 : Schematic overview of the Plena Mixer Amplifier Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 9: Controls, Connectors And Indicators

    11 Air inlet holes. 200 m. Please refer to the relevant datasheet for more information. Note Do not obstruct the airflow into the unit. 12 Headphone socket. figure 2.2: Front panel Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 10: Rear Panel

    2 (see numbers 10 and 11, and 13 respectively). 13 Microphone/line 2 input, XLR connector - DIP switch settings for speech filter, mic/line, VOX, and phantom power (see number 12). Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 11 Plena Mixer Amplifier | Installation and User Instructions | Description en | 11 figure 2.3: Rear panel Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 12 Plena Mixer Amplifier | Installation and User Instructions | Description en | 12 Intentionally left blank Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 13: Installation

    (LBC 1901/00). • remove the 4 feet from the bottom of the unit. figure 3. 1 : Installing the unit in a rack figure 3.2: Power connection and voltage selector Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 14 Plena Mixer Amplifier | Installation and User Instructions | Installation en | 14 Intentionally left blank Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 15: Connections And Settings

    1 input, the input signals will be added together. Set the DIP switch settings next to the XLR connector for microphone/line 1, as required. See section 4.3. figure 4.3: Euro connector with trigger Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 16: Secondary Microphone (Input 2)

    Microphone/line input 2. Set the DIP switch settings next to the XLR connector as required. See section 4.3. figure 4.4: Connecting microphone inputs Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 17: Emergency Inputs

    The master volume control setting (5) does not influence the volume setting of the emergency announcement or signal. figure 4.5: Connecting 100 Volt input signal Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 18 Never try to make a direct connection between the telephone network and the mixer amplifier. figure 4.6: Connecting emergency telephone lines Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 19: Music Source Inputs

    When using a CD player, tuner or other auxiliary device for background music, connect the line-out connectors of the music source to the appropriate line-in connectors of the mixer amplifier. figure 4.7: Connecting music source inputs Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 20: Connecting Outputs

    Only the music inputs (5, 6, and 7) will be Also see section 4.2.4 “Connecting speakers”. audible. All other inputs, including the Tel. emergency/100V input will not be sent to this output. figure 4.8: Connecting music source inputs Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 21: Connecting Speakers

    You can use the Call Only output for 3-wire remote volume control override. You can also use this output as an extra zone where announcements can be heard, but not music. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 22: Unit Settings

    LBC 2900/15. Background music level. and announcements will be heard in the selected zones. A chime is not available in this mode. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 23 –∞ dB (muted). When ducking, the music is also present on the Call only output. If you do not want this, set the ducking control to mute. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 24: Pin Settings And Labelling

    3 Fit the cover into the slot at the front of the unit, and then gently release the cover, making sure that the paper label stays in place. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 25: Operation

    On - pushed in (see figure 5.1). 5.1.2 Switch off Set the power button (1) on the front of the unit to Off - popped out (see figure 5.1). figure 5. 1 : Front panel Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 26: Microphone/Line Controls

    Use the Hi (high) and Lo (low) tone controls (see figure 5.1, numbers 4 and 10) to change the tone. Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 27: Technical Data

    16 V via 1.2 kohm (mic) Max -12/+12 dB (frequency is level dependent) Treble Control Max -12/+12 dB (frequency is level dependent) 6.1.4 RJ-45 input 1 x Wall panel input For PLE-WP3S2Z Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
  • Page 28: Music Inputs 3X

    Screw connector, floating Max / rated PLE-1MA030-EU 45 W / 30 W Max / rated PLE-1MA060-EU 90 W / 60 W Max / rated PLE-1MA120-EU 180 W / 120 W Bosch Security Systems | 2007-11 | PLE-1MA030-EU, PLE-1MA060-EU, PLE-1MA120-EU en...
