Niles VS-6 Installation Manual

6 source, 6 zone component video switcher
Hide thumbs Also See for VS-6:
Table of Contents

Advertisement

Quick Links

Download this manual
I N S T A L L A T I O N G U I D E
6 S O U R C E , 6 Z O N E C O M P O N E N T V I D E O S W I T C H E R
VS-6

Advertisement

Table of Contents
loading

Related Manuals for Niles VS-6

Summary of Contents for Niles VS-6

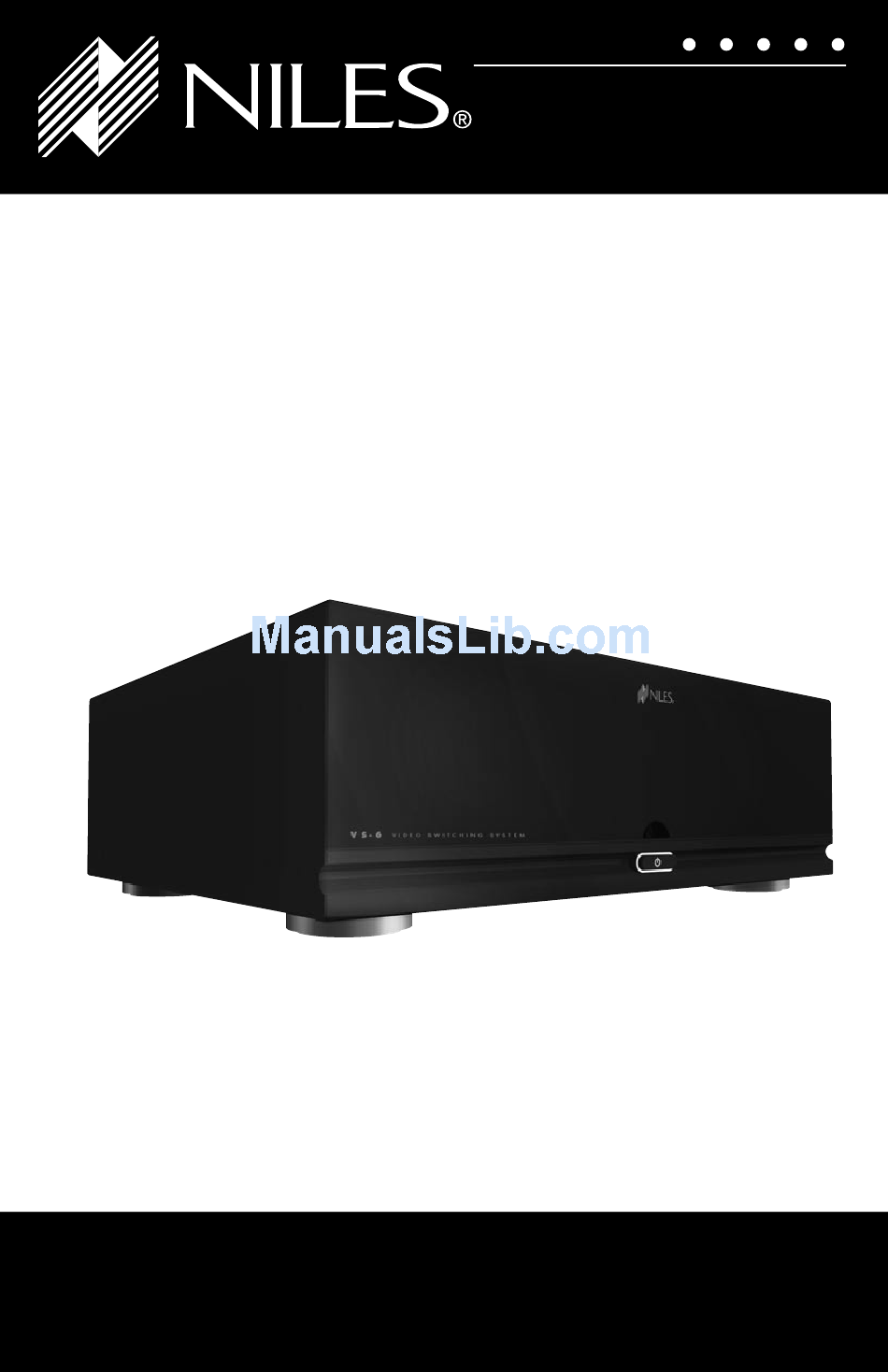

  • Page 1 I N S T A L L A T I O N G U I D E 6 S O U R C E , 6 Z O N E C O M P O N E N T V I D E O S W I T C H E R VS-6...

  • Page 2: Table Of Contents

    CONGRATULATIONS! Thank you for purchasing the VS-6 from Niles. With proper installation and operation, you should enjoy years of trouble-free use. Niles manufactures the industry’s most complete line of custom installation components and accessories for audio/video systems. To see the complete Niles product assortment, visit us on the Internet at: www.nilesaudio.com...

  • Page 3: Introduction

    You can choose between traditional component video output cables, or balanced video signals over CAT-5 cabling. The VS-6 can be used as a stand-alone video switcher, or as part of a complete distributed audio/video solution with compatible Niles MultiZone audio systems.

  • Page 4: Contents

    VS-6 to be controlled by third party control systems. SWITCHABLE POWER The VS-6 has a flexible, high-quality, switchable power supply that can be used in 110V or 230V countries. WARNING: DOUBLE CHECK THAT THE 110V/230V SWITCH IS SET CORRECTLY FOR YOUR INPUT VOLTAGE.
  • Page 5 10 ) IR Control Input Connection - A 3.5mm jack provides an input connection so the VS-6 can be controlled by IR codes from an Infrared Repeater Main System Unit or from a Niles MultiZone Receiver (IR codes available for download at www.nilesaudio.com).

  • Page 6: System Design Considerations

    Niles Technical Support for the latest compatible MultiZone receiver. IR INPUT PORT AND IR SENSOR WINDOW IR (Infrared) codes can control the VS-6. These IR codes have two paths into the VS-6: the IR Input Port or the IR Sensor Window (IR codes available for download at www.nilesaudio.com).

  • Page 7: Installation Considerations

    RS-232 baud rates up to 9,600bps (bits per second). FLASHER CABLE Flasher cable should be run if you plan to control the VS-6 by an infrared flasher on the front panel ® (such as the Niles MF1 MicroFlasher ) or the flasher output connection of a Niles IR Main System...

  • Page 8: System Configuration

    TV/Monitor 1 is connected to a Niles C5-HDDAWM, the wall-mount version of the C5-HDDA. 4. Shown are two control options for the VS-6. For IR control, a Niles WS110R wall-mount IR sensor is connected to a Niles MSU140 Main System Unit and a Niles 3.5mm to 3.5mm accessory cable (FG00933) is connected from one of the four Flasher Output connections of the MSU140 to the IR Input connection of the VS-6.
  • Page 10 Niles Network MultiZone Receiver. 2. Balanced Video Output for Zone 5 of the VS-6 is sent to its respective room using cabling through the wall. The local room control CAT-5 cable is for connection to, and communication with, the optionally supplied IRG (Infrared Gateway FG01426).

  • Page 11: Installation

    12V status signal from a Niles triggering accessory. The dia- gram below shows a Niles CS12V (FG01173) programmed to “see” the extra current draw the TV has when it is powered on. When the power cord for the TV is connected to the current sensing outlet on the CS12V, the CS12V sees the additional current draw and sends out a 12V trigger via a 3.5mm to 3.5mm triggering accessory cable (FG00933) to the IRG’s 3-30V AC/DC Sync Port.
  • Page 12 VS-6 Unit ID (Unit 1-4), dipswitch 3 is used to set the RS-232 communication baud rate for either 9,600 (On) or 19,200 (Off) and dipswitch 4 is used to set the VS-6 for either Network control (On) or RS-232 control (Off).

  • Page 13: Programming

    PROGRAMMING The Niles VS-6 Component Video Switcher uses very simple logic for control: “Choose an output, choose a source.” Programming is based on control options detailed below. CONTROL OPTION #1: Niles Network MultiZone Receivers Integration with Niles Network MultiZone Receivers offers complete flexibility of set-up and seamless operation by utilizing local room control products such as the Niles IRG Infrared Gateway and remote user keypads.
  • Page 14 Please refer to Figure 8 for VS-6 dipswitch settings. Listed in the appendix are the IR codes in a hex IR code format that can be typed into the programming software for many of the popular programmable remote controls.

  • Page 15: Troubleshooting

    Troubleshooting the VS-6 Component Video switcher can be broken down into two main areas: 1) Hardware Issues 2) Control Issues HARDWARE ISSUES There are three basic problems that prevent proper operation of the VS-6 system. In the order of probability the problems are as follows: PROBLEM: 1. No Power If the power connection is loose or not completely plugged into a live AC outlet, the system will not operate.
  • Page 16 1. IR Control Issues IR control of the VS-6 can include an IR flasher placed on the IR Sensor Input window on the front panel or a direct connection to the rear panel IR Sensor Input. If the remote control programmed to operate the VS-6 causes improper operation, the symptom could include IR flooding, no source, or the wrong source to be selected.

  • Page 17: Vs-6 Accessories

    TS110 TABLE TOP IR SENSOR MSU250 FG01413 FG01003 Tabletop infrared sensor IR repeater system with two used with Niles IR MSU’s sensor inputs and five flasher outputs for single zone applications NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 18 MS110 FLUSH-MOUNT IR SENSOR RCA-3D FG0521 FG01409 Flush-mount infrared sensor Wall plate with three (3) RCA used with Niles IR MSU’s to female F connections NET-2D WS110R WALL-MOUNT IR SENSOR FG00842 FG01414 - White Wall plate with 2 eight (8) wire...

  • Page 19: Specifications

    0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0010 0233 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 20 ZONE 1 SOURCE 4 0000 0066 0000 0023 0031 0020 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0020 0020 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0010 0010 0010 0010 0239 ZONE 1 SOURCE 5...
  • Page 21 0010 0010 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0010 0010 0010 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0233 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 22 ZONE 3 SOURCE 6 0000 0067 0000 0023 0030 0020 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0020 0020 0010 0010 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0010 0010 0010 0020 0010 0010 0010 0233 ZONE 4 SOURCE 1...
  • Page 23 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0010 0010 0010 0010 0010 0010 0020 0010 0020 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0020 0010 0233 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 24 ZONE 6 SOURCE 2 0000 0066 0000 0023 0031 0020 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0020 0020 0010 0010 0010 0010 0010 0020 0010 0010 0010 0020 0010 0010 0010 0010 0010 0020 0010 0020 0010 0020 0010 0010 0010 0020 0010 0010 0010 0020 0010 0020 0010 0010 0010 0239 ZONE 6 SOURCE 3...
  • Page 25 ZONE 6 SOURCE 6 ZONE 3 SOURCE 6 26, 56, 38, 38, 33, 2C, 4B, 45, 59, 2C, 30, 34, 35,0D 26, 56, 38, 38, 33, 2C, 4B, 45, 59, 2C, 30, 32, 31,0D NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 26 NOTES...
  • Page 27 NOTES NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 28 NOTES...
  • Page 29 NOTES NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 30 PURCHASE – CLAIMS MADE WITHOUT PROOF OF PURCHASE WILL BE DENIED) WHO WILL TEST THE PRODUCT AND IF NECESSARY, FORWARD IT TO NILES FOR SERVICE. IF THERE ARE NO AUTHORIZED NILES DEALERS IN YOUR AREA, YOU MUST CONTACT NILES TO RECEIVE A FACTORY RETURN AUTHORIZATION NUMBER.

  • Page 31: Warranty

    Quality/Durability ❍ Management Mail-Order Catalog ❍ ❍ Reputation ❍ Professional Newspaper Ad ❍ ❍ Style/Appearance ❍ Sales/Marketing Product Brochure ❍ ❍ Warranty ❍ Student Product Review ❍ ❍ Tradesperson Retail Salesperson ❍ ❍ NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-4373...
  • Page 32 ® L E N D I N G I G H I D E L I T Y R C H I T E C T U R E N i l e s A u d i o C o r p o r a t i o n 1 2 3 3 1 S .
