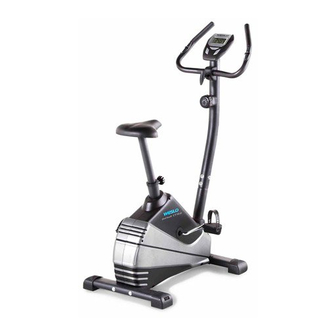

Model No. WLCCEX31213.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
contact Customer Service.
CUSTOMER SERVICE
Call toll-free 1-888-936-4266
Mon.–Fri. 7:30 a.m.–4:30 p.m. ET
(excluding holidays)
or email us at
customerservice@iconcanada.ca
Please do not contact the store.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
2.3 u
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pursuit 2.3 U Bike and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weslo Pursuit 2.3 U Bike

Summary of Contents for Weslo Pursuit 2.3 U Bike

  • Page 1 2.3 u www.weslo.com Model No. WLCCEX31213.0 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, contact Customer Service. CUSTOMER SERVICE Call toll-free 1-888-936-4266 Mon.–Fri.

  • Page 2: Table Of Contents

    If a decal is missing or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on the exercise bike before using the exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 Your new tness equipment represents a signi cant investment in your health. Protect your investment now from unexpected mechanical or electrical failures for up to ve years. PLAN FEATURES • Protection for one to ve years • Easy enrollment • Over 100 authorized repair centers •...

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the new WESLO PURSUIT reading this manual, please see the front cover of this ® 2.3 U exercise bike. Cycling is an effective exercise for manual. To help us assist you, note the product model increasing cardiovascular fitness, building endurance, number and serial number before contacting us.

  • Page 6: Assembly

    ASSEMBLY • Assembly requires two persons. • In addition to the included tool(s), assembly requires the following tool(s): • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you finish all assembly steps.
  • Page 7 2. Identify the Rear Stabilizer (10), which has a leveling dial on each end. Set a sturdy piece of packing material under the rear of the Frame (1). Have a second person hold the Frame to prevent it from tipping while you complete this step.
  • Page 8 4. While a second person holds the Upright (3) near the Frame (1), connect the Extension Wire (38) to the Reed Switch Wire (26). Next, connect the Resistance Cable (24) to the Avoid pinching the Lower Resistance Cable (27) in the following wires and cables way: • S ee drawing A.
  • Page 9 5. Have a second person hold the Handlebar (4) near the Upright (3). Insert the two Pulse Wires (19) into the Upright, and pull them out of the top of the Upright. Tip: Avoid pinching the Pulse Wires (19). Open the indicated clamp on the Upright (3), hold the Handlebar (4) inside the clamp, and close the clamp.
  • Page 10 7. Have a second person hold the Console (2) near the Upright (3). Connect the wires on the Console to the Extension Wire (38) and to the Pulse Wires (19). Insert the excess wire into the Upright (3) or into the Console (2).
  • Page 11 10. Identify the Right Pedal (16). Using an adjustable wrench, firmly tighten the Right Pedal (16) clockwise into the right arm of the Crank (35). Tighten the Left Pedal (not shown) counter- clockwise into the left arm of the Crank (not shown).

  • Page 12: How To Use The Exercise Bike

    HOW TO USE THE EXERCISE BIKE HOW TO ADJUST THE SEAT POST HOW TO ADJUST THE PEDALING RESISTANCE For effective exercise, the seat should be at the proper To increase the height. As you pedal, there should be a slight bend in resistance of the your knees when the pedals are in the lowest position.
  • Page 13 FEATURES OF THE CONSOLE Scan—This mode shows the time, speed, distance, calories, odometer, and pulse displays, for a few The easy-to-use console features seven displays that seconds each, in a repeating cycle. Note: The pulse provide instant exercise feedback during your work- display will appear only while you are using the heart outs.
  • Page 14 HOW TO USE THE CONSOLE 4. Measure your heart rate, if desired. Make sure that there are batteries (not included) in the If there are console (see assembly step 6 on page 9). If there sheets of plastic Contacts is a sheet of plastic on the console, remove the plastic. on the metal contacts of the 1.

  • Page 15: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the exercise bike regu- Next, turn the resistance knob to the lowest setting. larly. Replace any worn parts immediately. Locate the Reed Switch (26). Turn the Crank (35) until the Magnet (36) is aligned with the Reed Switch. To clean the exercise bike, use a damp cloth and a Loosen, but do not remove, the M4 x 20mm Screw (56).
  • Page 16 HOW TO ADJUST THE DRIVE BELT If you can feel the pedals slip while you are pedaling, even when the resistance is set at the highest level, the drive belt may need to be adjusted. To adjust the drive belt, the pedals and the shields must be removed. Use an adjustable wrench to remove the pedals.

  • Page 17: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 18: Part List

    PART LIST Model No. WLCCEX31213.0 R0613A Key No. Qty. Description Key No. Qty. Description Frame Idler Console Crank Bearing Assembly Upright Crank/Pulley Handlebar Magnet Handlebar Foam, Set M6 Washer Seat Extension Wire Seat Post M10 x 78mm Bolt Sleeve M8 Washer Front Stabilizer Eyebolt Rear Stabilizer...

  • Page 19: Exploded Drawing

    EXPLODED DRAWING Model No. WLCCEX31213.0 R0613A...

  • Page 20: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) • the name of the product (see the front cover of this manual) • t he key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual) LIMITED WARRANTY IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
