Installation Manual
INSTRUCTION MANUAL
Color CCD Camera
Please read this manual before installing and using this camera, and always
follow the instructions in it for proper use. Be sure to keep it handy for later
reference.
• Refer to the supplied CD-ROM for the French, German and Chinese
"INSTRUCTION MANUAL".
To view the INSTRUCTION MANUAL contained in the supplied CD-ROM, you
need Adobe
®
Reader
®
application. If your PC has not been installed with it, you
can download it for installation from the following web site at Adobe Systems
Incorporated.
http://www.adobe.com
• Consultez le CD-ROM fourni pour le « MANUEL D'INSTRUCTIONS » en
français, allemand et en chinois.
Pour visualiser le MANUEL D'INSTRUCTIONS contenu dans le CD-ROM
®
fourni, l'application Adobe
Reader
été installé sans cette application, vous pouvez la télécharger depuis le site
Web suivant d'Adobe Systems Incorporated.
http://www.adobe.com
• Die "BEDIENUNGSANLEITUNG" in den Sprachen Französich, Deutsch und
Chinesisch finden Sie auf der mitgelieferten CD-ROM.
Zum Öffnen der BEDIENUNGSANLEITUNG auf der mitgelieferten CD-ROM
benötigen Sie das Programm Adobe
auf Ihrem PC installiert ist, können Sie das Programm unter der nachstehend
angegebenen Internet-Adresse bei Adobe Systems Incorporated zur
Installation herunterladen:
http://www.adobe.com
• 请参阅随附的光盘以了解法语、德语和中文 "说明手册" 。
要查看随附光盘中包含的说明手册，您需要安装有 Adobe
如果您的 PC 上没有安装此应用程序，则您可以从 Adobe Systems Incorporated 的
以下网站下载并进行安装。
http://www.adobe.com
VCC-XZ200P
®
vous est nécessaire. Si votre ordinateur a
®
®
Reader
. Falls diese Anwendung nicht
应用程序。
®
®
Reader
Advertisement
Table of Contents
Related Manuals for Sanyo VCC-XZ200P
Summary of Contents for Sanyo VCC-XZ200P
-
Page 1: Instruction Manual

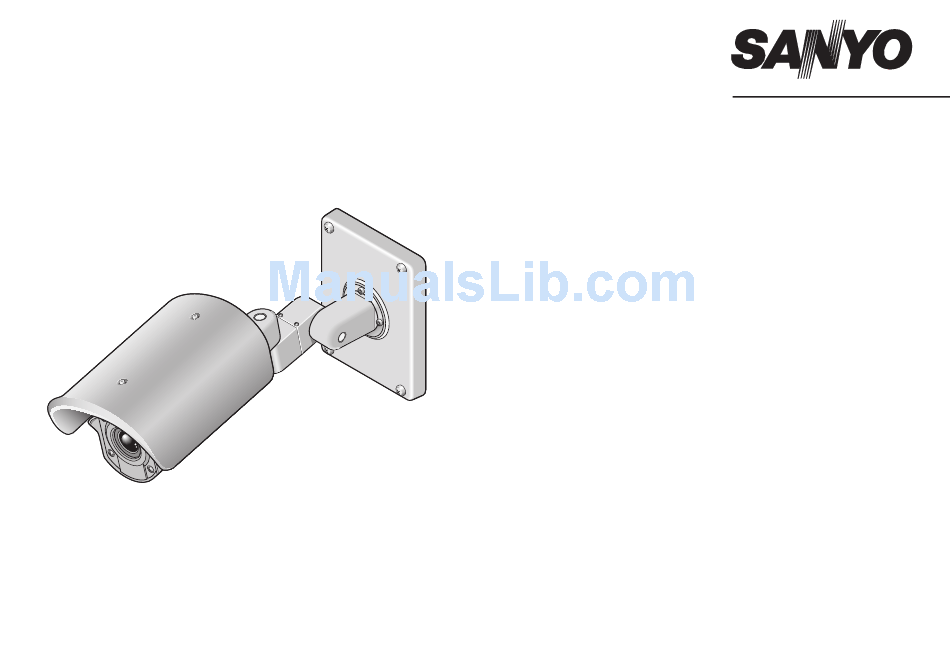

INSTRUCTION MANUAL VCC-XZ200P Color CCD Camera • Refer to the supplied CD-ROM for the French, German and Chinese “INSTRUCTION MANUAL”. To view the INSTRUCTION MANUAL contained in the supplied CD-ROM, you need Adobe ® Reader ® application. If your PC has not been installed with it, you can download it for installation from the following web site at Adobe Systems Incorporated. -
Page 2: Table Of Contents
Contents ☞The contents in angle brackets <> are the menu screen title. Precautions ..........Adjusting DAY/NIGHT Function <DAY/NIGHT>... -
Page 3: Precautions
Do not open the cabinet, as it may be dangerous and cause damage to the unit. For repairs, consult your dealer or an Authorized Sanyo Service • Dirt can be removed from the cabinet by wiping it with a soft cloth. To Center. -
Page 4: Information
Information ■ Characteristics ■ Accessory • Complies with the IP66 international standard for dust and water • CD-ROM for Instruction manual ........... 1 protection • Installation manual • Equipped with motorized zoom pan focus auto iris lens. Thanks to English, French, German, Chinese ........each 1 its large depth of field, focused images can be obtained in a wider •... -
Page 5: Useful Operations
■ Putting titles to camera images: Please note: R OPTION → TITLE (See page 9) Your SANYO product is designed and manufactured with high quality materials and components which can be ■ Capturing clear image of fast-moving subject by recycled and reused. -
Page 6: Accessing The Main Menu
Accessing the Main Menu You can configure various adjustments and preference settings on the monitor screen. ☞In this manual, the buttons and their names on the camera are used for description. ■ Using the buttons on the circuit board ■ Using the Camera Control Unit (VAC-70: Separately ordered) Open the camera cover. -
Page 7: An Example For Basic Operation For Settings And Adjustments
Accessing the Main Menu Indicates to press the Indicates to press the Indicates to press the SET Select button up and down Select button side to side button for decision. to select an item. to switch over to other values. An Example for Basic Operation for Settings and Adjustments Selecting item. - Page 8 Accessing the Main Menu Closing the setting screen. ·SYNC Once the settings are complete, set “MENU” to “END” and press the SET button. IRIS WHITE BALANCE AGC GAIN NORM GAMMA 0.45 SHUTTER APERTURE HIGH DAY/NIGHT AUTO y PRESET OPTION ·MENU PRESET MENU ·MENU...
-
Page 9: Selecting Display Language
Selecting Display Language <LANGUAGE> You can change the language displayed on the settings and adjusting screens. (Default setting: ENGLISH) OPTION SYNC TITLE IRIS WHITE BALANCE PRIVACY MASK AGC GAIN PASSWORD NORM ALARM GAMMA 0.45 SHUTTER ·LANGUAGE APERTURE HIGH DAY/NIGHT AUTO y ·OPTION ·LANGUAGE PRESET... -
Page 10: Naming Cameras
Naming Cameras <TITLE> You can give a name (title) to each camera. The specified names are displayed on the monitor so that you can easily distinguish the monitoring images when you use multiple cameras. ROOM2 ROOM1 SYNC OPTION IRIS ·TITLE ROOM1 ROOM2 WHITE BALANCE... - Page 11 Naming Cameras <TITLE> Repeat step to complete the name and select On the monitor screen, determine the location “ID”. where the name should be displayed by pressing the Select button up-down or side to side; and Example: ROOM1 then press the SET button. TITLE SETTING ABCDEFGHIJKLM ROOM1...
-
Page 12: Password Lock Setting/Cancelling
Password Lock Setting/Cancelling <PASSWORD> You can lock the accessing the Main menu by specifying a password. You will be prompted to enter the password to access the Main menu. SYNC OPTION IRIS TITLE WHITE BALANCE PRIVACY MASK AGC GAIN NORM ·PASSWORD GAMMA ALARM... - Page 13 Password Lock Setting/Cancelling <PASSWORD> Select “PASSWORD CHANGE” and press the Enter a new password (4 numerical values) and SET button. press the SET button. ☞ Write down the new password before you forget it. PASSWORD RYou will see the “OK” message. PASSWORD LOCK ·PASSWORD CHANGE SET y...
-
Page 14: Adjusting Synchronization Error
Adjusting Synchronization Error <SYNC> By default, the synchronization adjustment for the camera is performed internally (INT). However, you must make adjustments in the Line Lock (L-L) Setting screen, if the monitor screen seems out of sync after switching over among multiple cameras using AC 24 V. -
Page 15: Backlight Compensation
Backlight Compensation <BLC> If the images of subjects are not clear because of backlight, correct it by adjusting conditions or changing correction method. Select “BLC” and specify a correction method. ■ CENT (Center zone metering) Correction is made based on the optical measurement that is focused on the central area of the screen (The image of subject to SYNC ·BLC... -
Page 16: Adjusting Iris Level
Adjusting Iris Level <IRIS> If you need to adjust the brightness follow the steps below. SYNC IRIS SETTING ·IRIS WHITE BALANCE <LEVEL> AGC GAIN NORM · GAMMA 0.45 SHUTTER APERTURE HIGH DAY/NIGHT AUTO y OPTION PRESET PRESET ·IRIS MENU MENU BACK (SET) Adjust the brightness (iris) (0 –... -
Page 17: Adjusting White Balance
Adjusting White Balance <WHITE BALANCE> With its default Auto-tracing White Balance (ATW) setting, this unit is able to obtain natural colors even when the light source is changed. However, you may manually change the white balance settings or its mode to obtain better tone, especially when the screen color does not match actual objects. -
Page 18: Awc Setting (One-Push Adjustment)
Adjusting White Balance <WHITE BALANCE> AWC SETTING (One-Push Adjustment) ■ To perform fine adjustment of color Select “AWC LOCK” – “SET”. In the “AWC SETTING” screen, select “GO TO MWB” – “SET”, and press the SET button. AWC SETTING R The “MWB SETTING” screen appears. Specify values manually. (See next page) ·AWC LOCK MEMO: Transferring to the “MWB SETTING”... -
Page 19: Mwb Setting (Manual White Balance)
Adjusting White Balance <WHITE BALANCE> MWB SETTING (Manual White Balance) Select “R” or “B” to adjust tint (0 – 255). Set “MENU” to “END” and press the SET button. RFinishes the settings screen and returns to the normal monitoring screen. MWB SETTING •... -
Page 20: Setting Gain Value
Setting Gain Value <AGC GAIN> If you need to adjust the sensitivity in dark places (AGC*), follow steps below. Select “AGC GAIN” and specify a mode. ■ NORM SYNC Normal setting IRIS WHITE BALANCE ·AGC GAIN NORM ■ HIGH (For a dark subject) GAMMA 0.45 SHUTTER... -
Page 21: Correcting Gamma Characteristic
Correcting Gamma Characteristic <GAMMA> Change the mode for Gamma correction*. Select “GAMMA” and specify a mode. ■ 0.45 SYNC γ Gamma value of = 0.45 IRIS WHITE BALANCE AGC GAIN NORM ■ 1 ·GAMMA 0.45 γ SHUTTER Gamma value of APERTURE HIGH DAY/NIGHT... -
Page 22: Specifying Shutter Speed
Specifying Shutter Speed <SHUTTER> You can specify the electronic shutter speed to capture fast-moving subjects. Note: With the increase in shutter speed number, faster movement can be captured, though the image becomes darker. Select “SHUTTER” and specify a shutter speed. Set “MENU”... -
Page 23: Accentuating Subject Outline
Accentuating Subject Outline <APERTURE> By specifying the APERTURE* setting, you can accentuate the outline of the subject when its image is blurred and unidentifiable. Select “APERTURE” and specify a mode. ■ OFF No accentuating is performed for aperture. SYNC ■ NORM IRIS Normal setting WHITE BALANCE... -
Page 24: Adjusting Day/Night Function
Adjusting DAY/NIGHT Function <DAY/NIGHT> The DAY/NIGHT function automatically switches over between COLOR and B/W mode depending on the ambient brightness; for example, choosing COLOR mode during daytime, and B/W mode for nighttime monitoring with its increased sensitivity in a darker environment. “AUTO” is preselected by default, which provides an automatic switch feature to detect the ambient darkness. -
Page 25: Day/Night Setting-Auto
Adjusting DAY/NIGHT Function <DAY/NIGHT> DAY/NIGHT SETTING-AUTO Select “LEVEL” and specify a level for DAY/ Set “MENU” to “END” and press the SET button. NIGHT switching. RFinishes the settings screen and returns to the normal monitoring screen. • If you want to return to the previous screen, select “BACK” and DAY/NIGHT SETTING press the SET button. -
Page 26: Day/Night Setting-B/W (Black-And-White)
Adjusting DAY/NIGHT Function <DAY/NIGHT> DAY/NIGHT SETTING-B/W (Black-and-white) Set “BURST” to “ON” or “OFF” for the burst Set “MENU” to “END” and press the SET button. signal*. RFinishes the settings screen and returns to the normal monitoring screen. • If you want to return to the previous screen, select “BACK” and DAY/NIGHT SETTING press the SET button. -
Page 27: Hiding Partial Image
Hiding Partial Image <PRIVACY MASK> If privacy protection is required for any shot, apply the masking feature for any position to be prevented from being presented. SYNC OPTION IRIS TITLE WHITE BALANCE ·PRIVACY MASK AGC GAIN PASSWORD NORM GAMMA 0.45 ALARM SHUTTER LANGUAGE... - Page 28 Hiding Partial Image <PRIVACY MASK> Privacy Masking Setting (continued) ■ To cancel the masking setting Specify the masking size and press the SET button. Change “ON” of the MASK number to “OFF” in “MASK NO.SELECT” screen. ■ To change the previously specified masking setting SIZE Choose “ON”...
-
Page 29: Specifying Alarm Input
Specifying Alarm Input <ALARM> If you have connected an external door switch or an infrared sensor, specify the following settings. This unit has a built-in motion sensor, which outputs alarm signals when any moving subject, such as a would be intruder, is detected. OPTION SYNC TITLE... -
Page 30: Motion Sensor Setting
Specifying Alarm Input <ALARM> Motion Sensor Setting Select “MOTION” and specify “ON”. Move the cursor to the area where should not be motion-detected and press the SET button to change “---”. ALARM SETTING ALARM IN e.g., frequently moving objects such as trees swaying in the wind ·MOTION as well as flickering. - Page 31 Specifying Alarm Input <ALARM> Motion Sensor Setting (continued) Select “uSENSITIVITY” and press the SET Select “<TIME>” and specify a detection time of button. duration (1 – 60). RThe greater the number, the lower the detectability against fast-moving subjects. ALARM SETTING ■...
-
Page 32: Zoom Setting
Specifying Alarm Input <ALARM> ZOOM setting Select “ZOOM” and specify the zoom factor for Set “MENU” to “END” and press the SET button. alarm detection (included motion-detected). RFinishes the settings screen and returns to the normal monitoring screen. • If you want to return to the previous screen, select “BACK” and ALARM SETTING press the SET button. -
Page 33: Duration Setting
Specifying Alarm Input <ALARM> DURATION setting ALARM SIGN setting Select “DURATION” and specify the duration for Select “ALARM SIGN” and specify “ON”. the alarm sign indication (a time until next alarm input becomes enabled). ALARM SETTING ALARM IN MOTION ALARM SETTING uAREA uSENSITIVITY ALARM IN... -
Page 34: Troubleshooting
Troubleshooting Before seeking repair service, please review the following points first. If the trouble persists, consult your dealer or an Authorized Sanyo Service Center. Symptom Items to Be Checked Symptom Items to Be Checked • Is the coaxial cable connected securely? -
Page 35: Specifications
Specifications Scanning system PAL standard 625 lines, 50 fields/sec. 3.5 W (without options) Power consumption 6.0 W (with options) Image sensor 1/4" interline transfer method CCD (approx.) Max. 13.0 W Number of effective (with heater turned on: VA-50H, option board) 752(H) x 582(V) pixels Base: W141.0 (5.7) x H172.0 (6.8) -
Page 36: Screen Sequence
·TITLE <MOVE> PRIVACY MASK · PASSWORD LANGUAGE ALARM <TIME> LANGUAGE ·LANGUAGE ENGLISH LANGUE FRENCH TEST SPRACHE GERMAN PRESET MENU OFF/X1.0/X1.4/X2.0/X2.6 BACK 5S/10S/15S/20S/30S/1M/2M/3M/4M/5M 5S/10S/15S/20S/30S/1M/2M/3M/4M/5M OFF/ON Printed on recycled paper SANYO Electric Co., Ltd. 1AC6P1P3049-- L5BJ2/XE (0306KP-SY) Pri nt ed in Japan...
