GE JDP39BKBB Dimensions And Installation Information

JDP39WK/CK/BK
GE 30" Drop-In Electric Range
®
Dimensions and Installation Information
KW Rating
240V 10.8
208V 8.1
Note: Cabinets installed adjacent to drop-in
ranges must have an adhesion spec of at
least 194°.
Important
30" Drop-In Ranges are designed to hang from
the countertop. It does not rest on the floor.
For installation alternatives, refer to installation
instructions packed with product.
Note: 30" Drop-In Electric Ranges conform to
U.L. requirements for 3" minimum spacing between
range and side walls above countertop.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
6" Min.
from walls
23-3/16
If necessary,
build upsides
to 1-1/4" thick 27-1/2
to provide
countertop
36
support
2-7/8"
To Front Surface
of Countertop
or
™
service,
30" Min.
30" Min.
Acceptable Electrical Outlet
Area Also In Adjacent
18" Min.
Cabinet Or Under Floor
Conduit is 40" long
25
If necessary,
build upsides
to 1-1/4" thick
7-1/2
to provide
countertop
support
30
Accessory
Backguard
A/B*
24
31-1/4
27
20-5/8" Door
Clearance
From Front
Surface of
Countertop
26-1/2**
*JXS37 is 5-1/4" and JXS32 is 4"
(excluding handle)
**Total depth from wall to
front of closed oven door
including handle is 29-1/2.
30" Min.
6" Min.
from walls
30" Min.
23-3/16
27-1/2
36
30
24
2-7/8"
To Front Surface
of Countertop

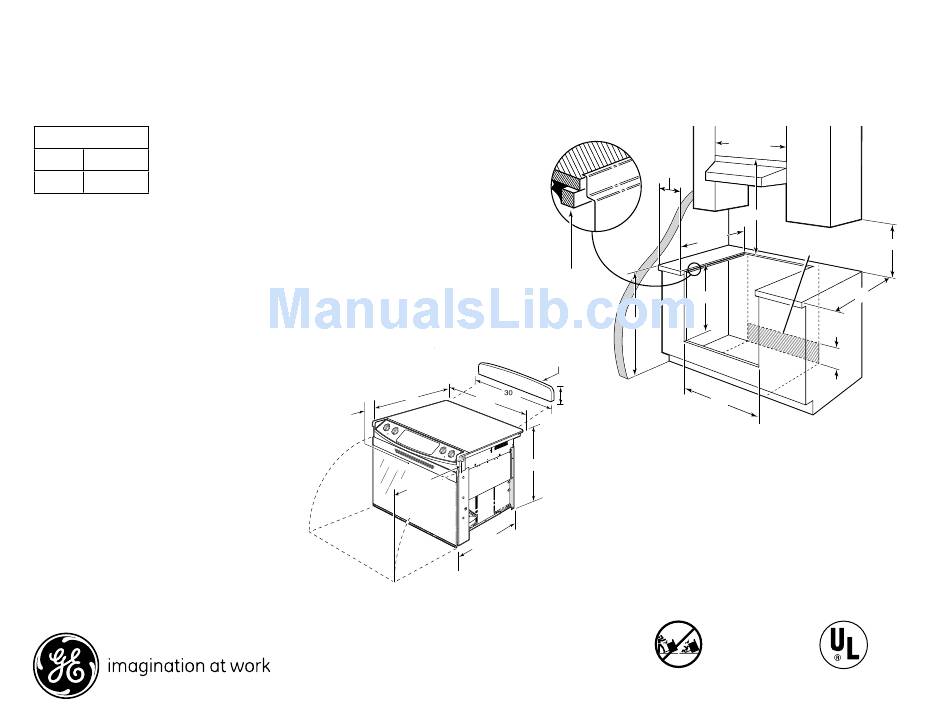

Dimension and installation information are shown in inches.
20-5/8" Door
Clearance
From Front
All GE ranges are equipped with
Surface of
an Anti-Tip device. The installation
Countertop
of this device is an important,
required step in the installation
of the range.
Specification Revised 9/06
Acceptable Electrical Outlet
Area Also In Adjacent
18" Min.
Cabinet Or Under Floor
Conduit is 40" long
25
7-1/2
Accessory
Backguard
A/B*
31-1/4
27
Listed by
Underwriters
Laboratories
26-1/2**
*JXS37 is 5-1/4" and J
(excluding handle)
**Total depth from wall
front of closed oven
320825
including handle is 2
