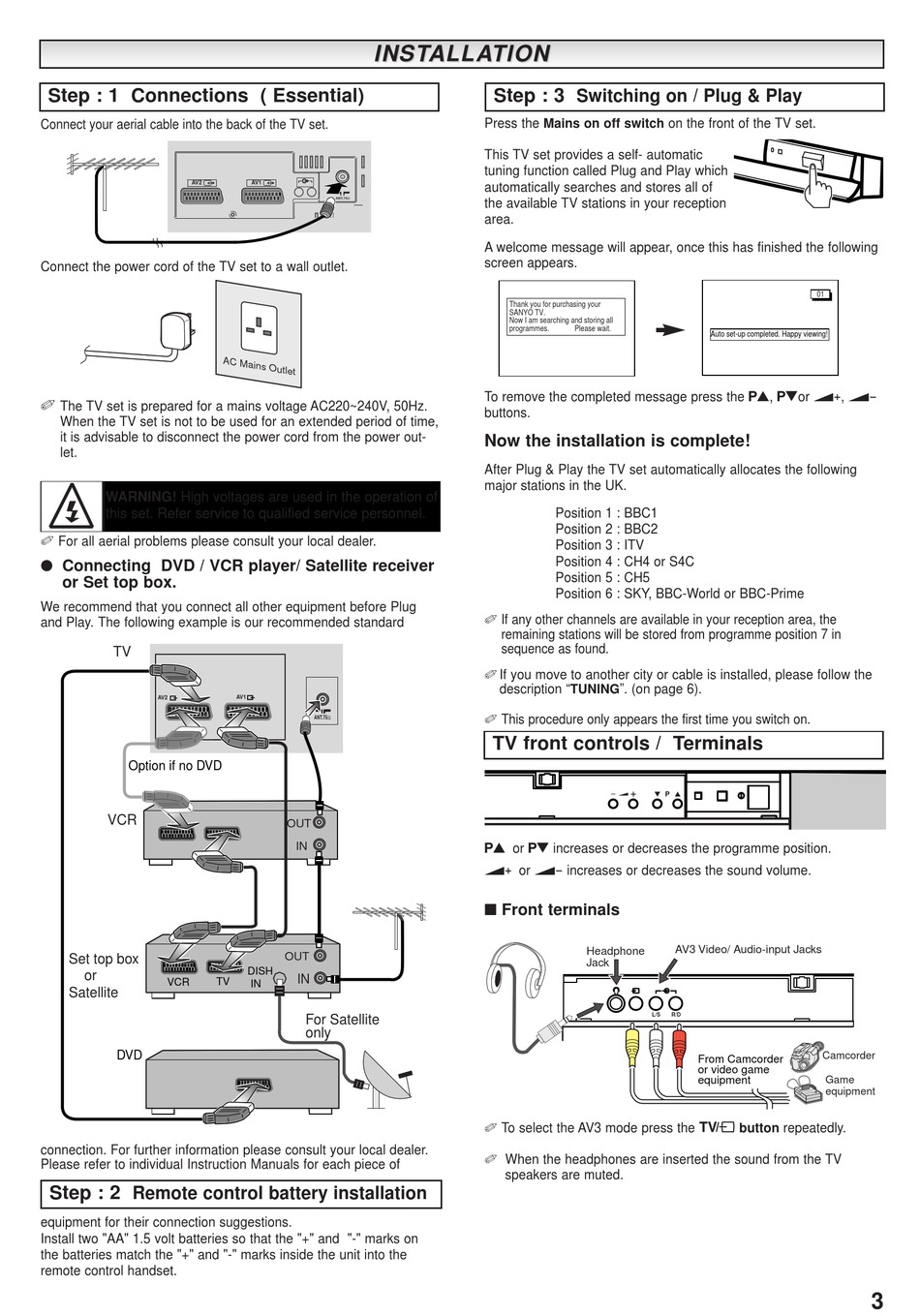

Step : 1 Connections ( Essential)
Connect your aerial cable into the back of the TV set.
AV2
Connect the power cord of the TV set to a wall outlet.
The TV set is prepared for a mains voltage AC220~240V, 50Hz.
When the TV set is not to be used for an extended period of time,
it is advisable to disconnect the power cord from the power out-
let.
WARNING! High voltages are used in the operation of
this set. Refer service to qualified service personnel.
For all aerial problems please consult your local dealer.
Connecting DVD / VCR player/ Satellite receiver
or Set top box.
We recommend that you connect all other equipment before Plug
and Play. The following example is our recommended standard
TV
AV2
Option if no DVD
VCR
Set top box
or
VCR
Satellite
DVD
connection. For further information please consult your local dealer.
Please refer to individual Instruction Manuals for each piece of
Step : 2
Remote control battery installation
equipment for their connection suggestions.
Install two "AA" 1.5 volt batteries so that the "+" and "-" marks on
the batteries match the "+" and "-" marks inside the unit into the
remote control handset.
INST
INST
AV1
ANT.75
AV1
ANT.75
OUT
IN
OUT
DISH
IN
TV
IN
For Satellite
only
ALLA
TION
ALLA
TION
Step : 3
Switching on / Plug & Play
Press the Mains on off switch on the front of the TV set.
This TV set provides a self- automatic
tuning function called Plug and Play which
automatically searches and stores all of
the available TV stations in your reception
area.
A welcome message will appear, once this has finished the following
screen appears.
Thank you for purchasing your
SANYO TV.
Now I am searching and storing all
programmes.
Please wait.
To remove the completed message press the 5, 6or 1, 2
buttons.
Now the installation is complete!
After Plug & Play the TV set automatically allocates the following
major stations in the UK.
Position 1 : BBC1
Position 2 : BBC2
Position 3 : ITV
Position 4 : CH4 or S4C
Position 5 : CH5
Position 6 : SKY, BBC-World or BBC-Prime
If any other channels are available in your reception area, the
remaining stations will be stored from programme position 7 in
sequence as found.
If you move to another city or cable is installed, please follow the
description "TUNING". (on page 6).
This procedure only appears the first time you switch on.
TV front controls / Terminals
5 or 6 increases or decreases the programme position.
1 or 2 increases or decreases the sound volume.
Front terminals
Headphone
Jack
To select the AV3 mode press the v button repeatedly.
When the headphones are inserted the sound from the TV
speakers are muted.
01
Auto set-up completed. Happy viewing!
P
AV3 Video/ Audio-input Jacks
L/S
R/D
Camcorder
From Camcorder
or video game
equipment
Game
equipment
3
