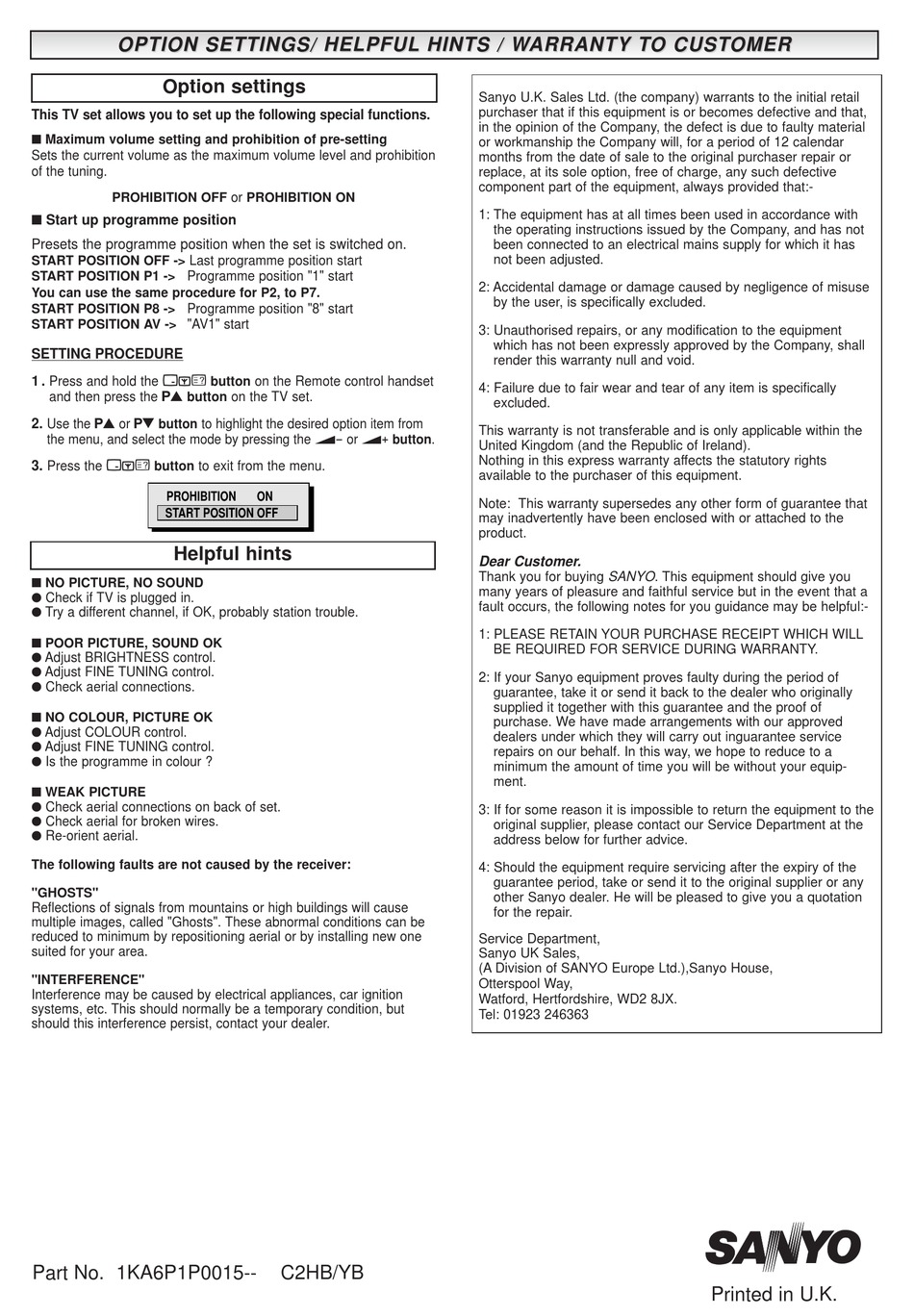

OPTION SETTINGS/ HELPFUL
OPTION SETTINGS/ HELPFUL
Option settings
This TV set allows you to set up the following special functions.
Maximum volume setting and prohibition of pre-setting
Sets the current volume as the maximum volume level and prohibition
of the tuning.
PROHIBITION OFF or PROHIBITION ON
Start up programme position
Presets the programme position when the set is switched on.
START POSITION OFF -> Last programme position start
START POSITION P1 -> Programme position "1" start
You can use the same procedure for P2, to P7.
START POSITION P8 -> Programme position "8" start
START POSITION AV -> "AV1" start
SETTING PROCEDURE
1 .
Press and hold the rD button on the Remote control handset
and then press the 5 button on the TV set.
2.
Use the 5 or 6 button to highlight the desired option item from
the menu, and select the mode by pressing the 2 or 1 button.
3.
Press the rD button to exit from the menu.
PROHIBITION
START POSITION OFF
Helpful hints
NO PICTURE, NO SOUND
Check if TV is plugged in.
Try a different channel, if OK, probably station trouble.
POOR PICTURE, SOUND OK
Adjust BRIGHTNESS control.
Adjust FINE TUNING control.
Check aerial connections.
NO COLOUR, PICTURE OK
Adjust COLOUR control.
Adjust FINE TUNING control.
Is the programme in colour ?
WEAK PICTURE
Check aerial connections on back of set.
Check aerial for broken wires.
Re-orient aerial.
The following faults are not caused by the receiver:
"GHOSTS"
Reflections of signals from mountains or high buildings will cause
multiple images, called "Ghosts". These abnormal conditions can be
reduced to minimum by repositioning aerial or by installing new one
suited for your area.
"INTERFERENCE"
Interference may be caused by electrical appliances, car ignition
systems, etc. This should normally be a temporary condition, but
should this interference persist, contact your dealer.
Part No. 1KA6P1P0015--
HINTS / W
HINTS / W
ON
C2HB/YB
ARRANTY
T
O CUST
ARRANTY
T
O CUST
Sanyo U.K. Sales Ltd. (the company) warrants to the initial retail
purchaser that if this equipment is or becomes defective and that,
in the opinion of the Company, the defect is due to faulty material
or workmanship the Company will, for a period of 12 calendar
months from the date of sale to the original purchaser repair or
replace, at its sole option, free of charge, any such defective
component part of the equipment, always provided that:-
1: The equipment has at all times been used in accordance with
the operating instructions issued by the Company, and has not
been connected to an electrical mains supply for which it has
not been adjusted.
2: Accidental damage or damage caused by negligence of misuse
by the user, is specifically excluded.
3: Unauthorised repairs, or any modification to the equipment
which has not been expressly approved by the Company, shall
render this warranty null and void.
4: Failure due to fair wear and tear of any item is specifically
excluded.
This warranty is not transferable and is only applicable within the
United Kingdom (and the Republic of Ireland).
Nothing in this express warranty affects the statutory rights
available to the purchaser of this equipment.
Note: This warranty supersedes any other form of guarantee that
may inadvertently have been enclosed with or attached to the
product.
Dear Customer.
Thank you for buying SANYO . This equipment should give you
many years of pleasure and faithful service but in the event that a
fault occurs, the following notes for you guidance may be helpful:-
1: PLEASE RETAIN YOUR PURCHASE RECEIPT WHICH WILL
BE REQUIRED FOR SERVICE DURING WARRANTY.
2: If your Sanyo equipment proves faulty during the period of
guarantee, take it or send it back to the dealer who originally
supplied it together with this guarantee and the proof of
purchase. We have made arrangements with our approved
dealers under which they will carry out inguarantee service
repairs on our behalf. In this way, we hope to reduce to a
minimum the amount of time you will be without your equip-
ment.
3: If for some reason it is impossible to return the equipment to the
original supplier, please contact our Service Department at the
address below for further advice.
4: Should the equipment require servicing after the expiry of the
guarantee period, take or send it to the original supplier or any
other Sanyo dealer. He will be pleased to give you a quotation
for the repair.
Service Department,
Sanyo UK Sales,
(A Division of SANYO Europe Ltd.),Sanyo House,
Otterspool Way,
Watford, Hertfordshire, WD2 8JX.
Tel: 01923 246363
OMER
OMER
Printed in U.K.
