IOGear GWRH1 Quick Start Manual

Netshair link portable wi-fi router & usb media hub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

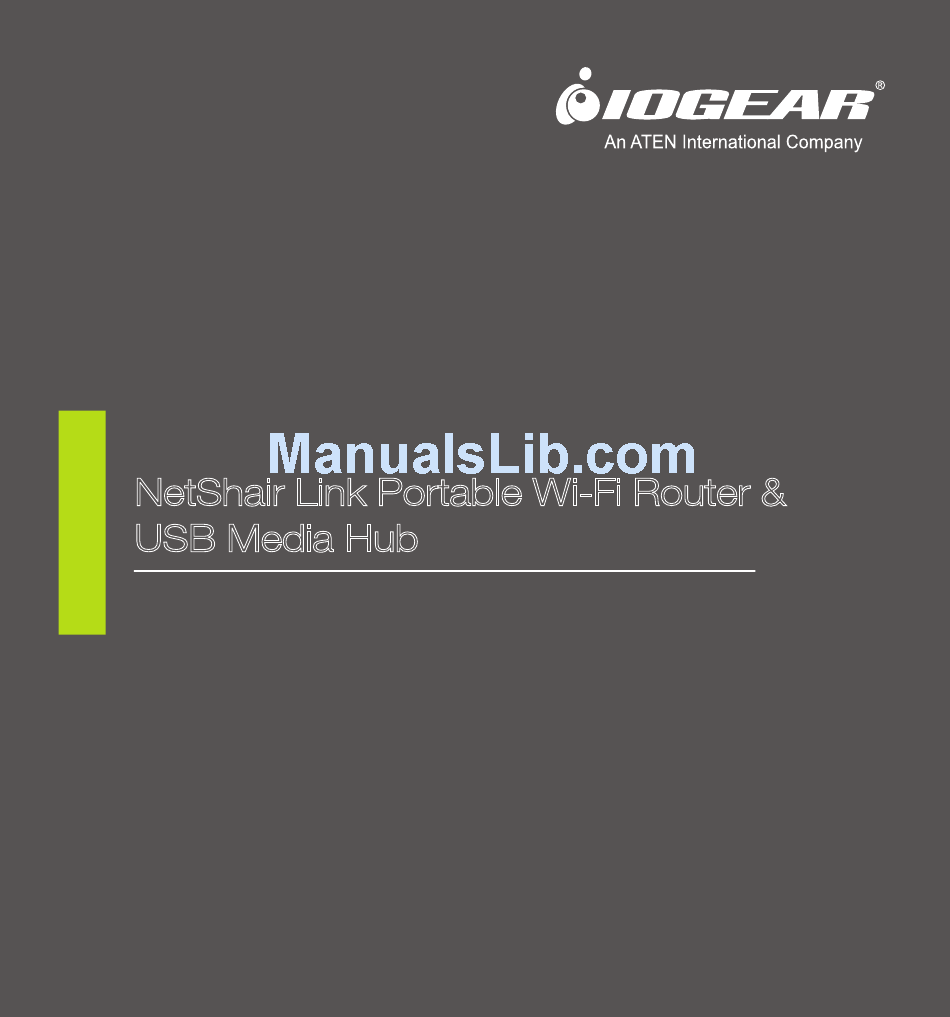

Quick Start Guide
NetShair Link Portable Wi-Fi Router &
USB Media Hub
GWRH1
PART NO. Q1238-a
www.iogear.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWRH1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IOGear GWRH1

Summary of Contents for IOGear GWRH1

  • Page 1 Quick Start Guide NetShair Link Portable Wi-Fi Router & USB Media Hub GWRH1 PART NO. Q1238-a www.iogear.com...

  • Page 2: Package Contents

    Package Contents 1 x NetShair Link module 1 x Warranty Card 1 x U.S. power plug 1 x Quick Start Guide System Requirements - Wired Ethernet connection with standard RJ45 connector - Standard electrical outlet - Optional extenal USB storage device to share media content - Wi-Fi equipped wireless devices Overview 1.

  • Page 3: Hardware Installation

    Hardware Installation 1. Plug the NetShair Link into a power source. 2. Connect an Ethernet cable from your modem to the RJ45 Connector NetShair Link. 3. Connect a USB flash drive or external hard drive with movies, music, photos or files. ®...
  • Page 4 1. Open the App Store on your iPod, iPhone or iPad. Search for NetShair NetShair the "NetShair" app and download it. NetShair IOGEAR 2. After installation is complete, the NetShair App icon will be shown on the device. 3. Turn on the NetShair Link by sliding NetShair Link the switch to “AP ON”.
  • Page 5 Viewing USB device (iPod / iPhone / iPad) 1. Connect your USB Flash Drive or USB Hard Drive to the upper USB port. For Charging Only DC 5V 1A~2.1A USB Device 2. Make sure the “NetShair Link” Wi-Fi network is connected. Open the App and log in (only necessary the first time).

  • Page 6: Internet Connection

    Internet Connection (iPod / iPhone / iPad) Option 1: DHCP or PPPoE Ethernet connection: Connect an Ethernet cable from the modem to the WAN port of the NetShair Link. In the App, choose DHCP (for most users) and tap submit or select PPPoE and enter username and password then tap submit.
  • Page 7 Select an AP (wireless network) then tap join and enter the pre-shared key. Tap Setup > Internet > Choose Hotspot > Tap Submit Select an AP to connect > Fill in wireless pre-shared key of the AP > Tap Join IOGEAR Meeting Room Office Warehouse...

  • Page 8: Wireless Security Settings

    Wireless Security Settings (iPod / iPhone / iPad) Option 1: Wireless Password To change the pre-shared network key, enter a new key with minimum 8 characters. Tap Setup > Wireless > Fill in new Password > Tap Submit Option 2: Network Name To change the name of your wireless network (SSID) enter the new name in the SSID box.
  • Page 9 NetShair Link Setup (Android Devices) 1. Open the Google Play store on your Android device. NetShair Search for the "NetShair" app and download it. NetShair NetShair 2. After installation is complete, the NetShair App icon will be shown on the device. 3.
  • Page 10 Viewing USB device (Android Devices) 1. Connect your USB Flash Drive or USB Hard Drive to the upper USB port. For Charging Only DC 5V 1A~2.1A USB Device 2. Make sure the “NetShair Link” Wi-Fi network is connected. Open the App and log in (only necessary the first time). Default Username: admin Default Password: admin Tap OK to log into the device.
  • Page 11 Internet Connection (Android Devices) Option 1: DHCP or PPPoE Ethernet connection: Connect an Ethernet cable from the modem to the WAN port of the NetShair Link. In the APP, choose DHCP (most users) and tap submit or select PPPoE and enter username and password then tap submit.
  • Page 12 Select an AP (wireless network) then tap join and enter the pre-shared key. Tap Setup > Internet > Choose Hotspot > Tap Submit Select an AP to connect > Fill in wireless pre-shared key of the AP > Tap Join IOGEAR Meeting Room Office Shop...
  • Page 13 Wireless Security Settings (Android Devices) Option 1: Wireless Password To change the pre-shared network key, enter a new key with minimum 8 characters. Tap Setup > Wireless > Fill in new Password > Tap Submit Option 2: Network Name To change the name of your wireless network (SSID) enter the new name in the SSID box. Tap Setup >...
  • Page 14 NetShair Link Setup (Laptop / Computer) 1. Turn on the NetShair Link by sliding the switch to “AP ON”. 2. Click on the wireless icon on the bottom right corner of the screen 3. Choose “NetShair Link” Network. 4. Enter the default password "12345678"...
  • Page 15 Internet Connection 1. Make sure the “NetShair Link” Wi-Fi network is connected. Open the Brower and enter 192.168.168.1 into the address bar to log in. Default Username: admin Default Password: admin 2. Click Wizard icon to setup the NetShair Link. File Server Wizard 3.
  • Page 16 Gateway In Hotel/Office/Home (DSL/Cable Modem) applications using Ethernet connection to access the Internet, select Gateway. Choose either DHCP Client and click Next, or select PPPoE and enter User Name and Password then click Next. Wireless Network Name and Password To change the name of your wireless network (SSID) enter the new name in the SSID box, then enter a new network key with minimum 8 characters and click Finished.
  • Page 17 Hotspot/Repeater To connect the NetShair Link to a wireless internet connection, choose Hotspot (creates a new password protected hotspot) or Repeater (extends the signal of the current AP without new security controls) then tap Scan network. Select an AP (wireless network) then click Next. Wireless Security Enter the pre-shared netwrok key then click Finished.
  • Page 18 Viewing USB device 1. Connect your USB Flash Drive or USB Hard Drive to the upper USB port. For Charging Only DC 5V 1A~2.1A USB Device 2. Make sure the “NetShair Link” Wi-Fi network is connected. Open the Brower and enter 192.168.168.1 into the address bar to log in.

  • Page 19: Hotel Usage Explanation Note

    Hotel Usage Explanation Note A. Hotel provides wired Internet access 1. Turn on the NetShair Link by sliding the switch to “AP ON”. 2. Connect your iPhone/iPad/Android Phone/Android Tablet/Laptop to the device through Wi-Fi (Note: if hotel requires user name & password for internet access, you must connect your device to the NetShair Link before you plug in the Ethernet cable!) 3.

  • Page 20: Limited Warranty

    Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support Warranty Information This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty...
