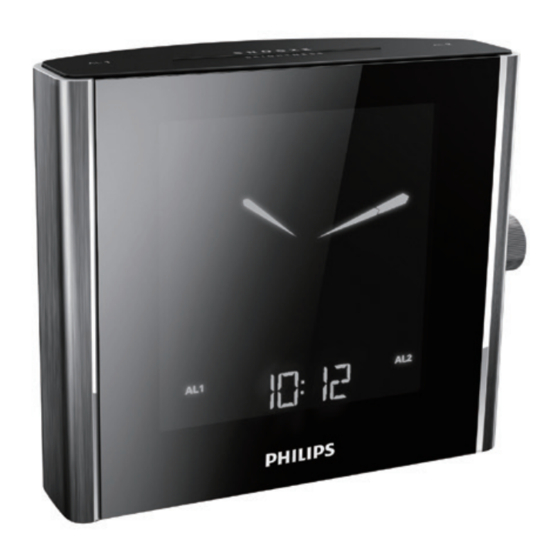

Digital tuning clock radio
Hide thumbs Also See for AJ7000:

Advertisement

Quick Links

Register your product and get support at
AJ7000
User manual
EN

Advertisement

Table of Contents
loading

Summary of Contents for Philips AJ7000

  • Page 1 Register your product and get support at AJ7000 User manual...
  • Page 6 Important Safety • Read these instructions. • Heed all warnings. • Follow all instructions. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 7: Your Clock Radio

    Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the disconnect device shall remain readily operable. Your clock radio Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this clock radio, you can: •...
  • Page 8: Overview Of The Main Unit

    Overview of the main unit a SLEEP • Set sleep timer. b Main knob • Adjust volume. • Confirm selection. • Adjust settings. c TIME ZONE • Set time zone. d FM/MW • Select tuner source. e SET TIME/PROG • Set time. • Program radio stations. f AL1/AL2 • Set alarm.
  • Page 9: Get Started

    k AC 6V ~ 450mA • Connect power. l FM ANT • Improve FM reception. m Battery tray n Display panel • Show status. Get started Always follow the instructions in this chapter in sequence. Install battery Caution • Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire.
  • Page 10: Plug And Set

    Connect power Caution • Risk of product damage! Ensure that the power voltage corresponds to the voltage printed on the back or underside of the clock radio. • Risk of electric shock! When you unplug the AC adapter, always pull the plug from the socket. Never pull the cord. Warning •...
  • Page 11: Select Time Zone

    Select time zone You can adjust time zone setting according to your location. In standby mode, press TIME ZONE. » The current time zone number blinks on the display. Rotate the main knob to set time zone (-1 to +12 adjustable).
  • Page 12: Listen To Fm/Mw Radio

    Listen to FM/MW radio Tune to radio stations • Position the antenna as far as possible from TV, VCR, or other radiation source. • For better reception, fully extend and adjust the position of the antenna. Press FM/MW to select FM or MW tuner source. Press TUNING MODE repeatedly until [FIND] (find) blinks.
  • Page 13: Store Radio Stations Manually

    In tuner mode, press TUNING MODE repeatedly until [AUTO] (auto) blinks. Rotate the main knob slowly. » The clock radio stores all the available FM/MW radio stations and broadcasts the first available station automatically. Store radio stations manually Tune to a radio station. Press PROG. » The preset number begins to blink. Rotate the main knob to select a number.
  • Page 14: Set Alarm Timer

    Set alarm timer Set alarm You can set two alarms to ring at different time. Note • Make sure that the clock is set correctly. In standby mode, press and hold AL1/AL2 for two seconds to activate alarm setting mode. »...
  • Page 15: Snooze Alarm

    Snooze alarm When alarm sounds, press SNOOZE. » The alarm snoozes and repeats ringing nine minutes later. Other features Set sleep timer This clock radio can switch to standby mode automatically after a preset period. Press SLEEP. Rotate the main knob to select the sleep timer period (in minutes).
  • Page 16: Product Information

    Select DST (daylight saving time) mode For countries with daylight saving time (DST), the clock radio offers you DST option to adjust summer time. In standby mode, press and hold DST for 3 seconds. » The clock advances by one hour and [DST] is displayed. Adjust display brightness Press BRIGHTNESS repeatedly to select different brightness levels: [HI] (high), [MID] (mid), and [LOW] (low).
  • Page 17: General Information

    Tuner Tuning Range FM: 87.5 - 108 MHz MW: 531-1602 KHz Sensitivity FM: <22 dBu - Mono, 26dB S/N Ratio MW: <92 dBuV/M Search Selectivity FM: <28 dBf MW:<98 dBuV/M Total Harmonic Distortion FM: <3% MW:<5% Signal to Noise Ratio FM: >45 dB MW:>40 dB General information AC Power Model : AGC060V0450T; Input : 220-240V ~, 50/60Hz; Output : AC6V 450MA Operation Power <5 W...
  • Page 18: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. No power •...
  • Page 19 Notice This product complies with the radio interference requirements of the European Community. Any changes or modifications made to this device that are not expressly approved by WOOX Innovations may void the user’s authority to operate the equipment. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.
  • Page 20 Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. Environmental information All unnecessary packaging has been omitted.
  • Page 21 Norge Typeskilt finnes på apparatens underside. Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten. For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.
  • Page 22 WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. AJ7000_12_UM_V3.0...
