DLP™ Projector
UD8400U/UD8400LU/UD8350U/UD8350LU

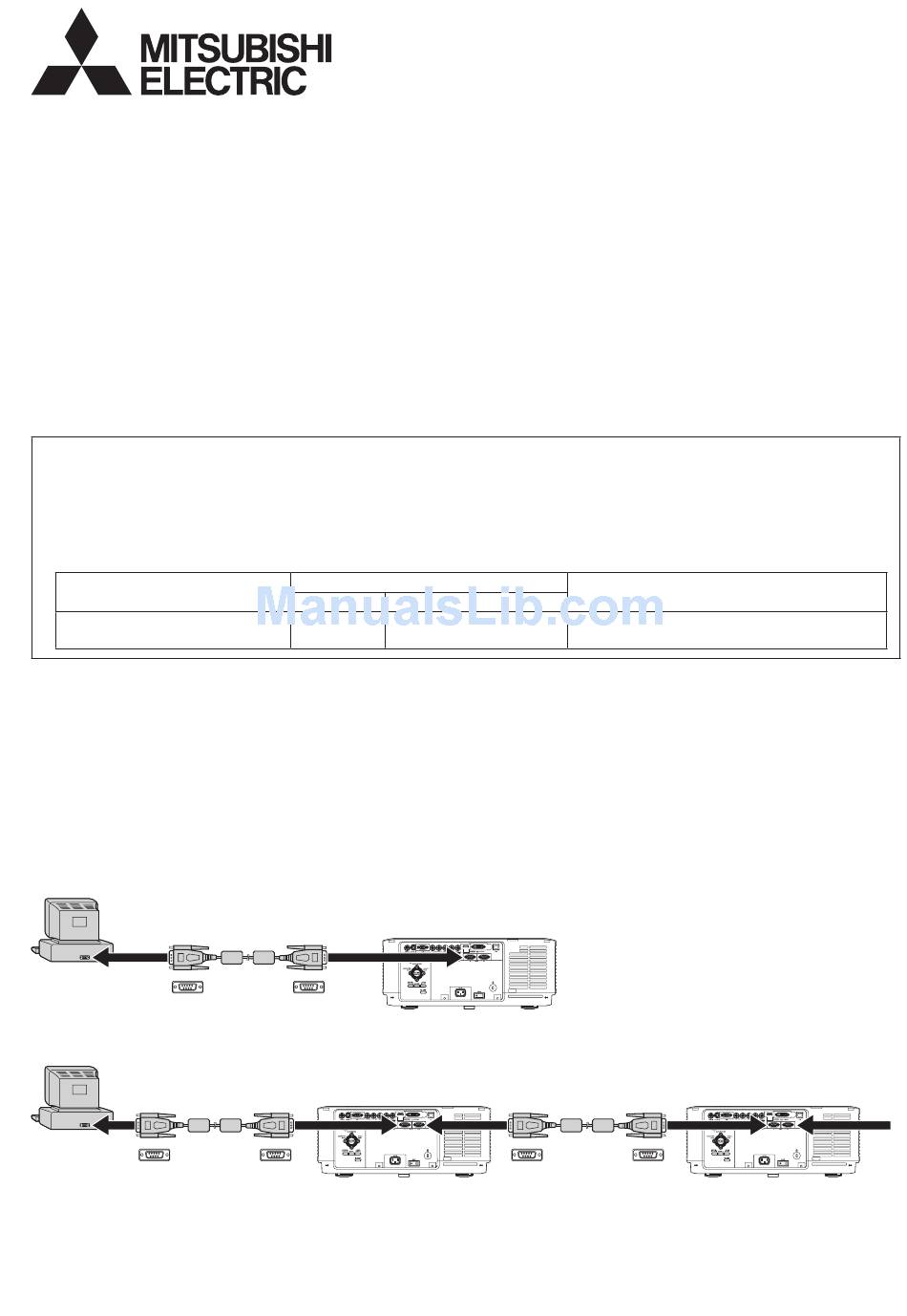

Controlling the projector using a personal computer
This projector can be controlled by connecting a personal computer with RS-232C terminal.
In addition, by connecting multiple projectors to each other in a daisy chain configuration, you can control each
projector from one personal computer.
PC-controllable functions:
• Turning the power ON or OFF
• Changing input signals
• Inputting commands by pressing the buttons on the control panel and remote control
• Menu setting
[Compatibility with the former models]
To use the RS-232C commands designed for the former models of Mitsubishi projector, by inputting
"00COMMAND0", the projector responds in the same way as the former models. (No NAK is returned. ID code
cannot be designated at command sending.)
(For the recommended procedure to use the former command systems, see "Controlling the projector using a
personal computer" for FL7000U.)
ITEM
Changing the RS-232C
command system
Connection
Important:
• Make sure that your computer and projector are turned off before connection.
• Boot up the computer first, and then plug the power cord of the projector.
(If you do not follow this instruction, the Com port may not function.)
• To use a daisy chain configuration, make sure to use Mitsubishi projectors supporting RS-232C communication. If
the projectors or other devices made by other manufacturers are connected, operation is not guaranteed.
To connect with one projector:
To RS-232C terminal
D-SUB 9-pin
To connect with multiple projectors (in a daisy chain configuration):
To RS-232C terminal
RS-232C cable
D-SUB 9-pin
Character
COMMAND
To SERIAL IN
terminal
RS-232C cable
D-SUB 9-pin
To SERIAL IN
terminal
D-SUB 9-pin
Function
ASCII code
43h 4Fh 4Dh 4Dh 41h 4Eh 44h
To SERIAL OUT
terminal
RS-232C cable
D-SUB 9-pin
1
Data
0 (Former command system), 1 (New
command system)
To SERIAL IN
terminal
D-SUB 9-pin
To SERIAL OUT
terminal

Advertisement

   Related Manuals for Mitsubishi Electric UD8400U

   Summary of Contents for Mitsubishi Electric UD8400U

  • Page 1 (If you do not follow this instruction, the Com port may not function.) • To use a daisy chain configuration, make sure to use Mitsubishi projectors supporting RS-232C communication. If the projectors or other devices made by other manufacturers are connected, operation is not guaranteed.
  • Page 2: Communications Format

    • Example of ID setting (When Group A, which performs multi-projection with two projectors, and Group B, which performs multi-projection with three projectors, are connected.) Multi-projection Group A Projector 1 Projector 2 PROJECTOR ID : 01 PROJECTOR ID : 02 GROUP ID GROUP ID Multi-projection Group B...
  • Page 3: Control Command Configuration

    2. Control command configuration The command consists of the address code, ID code, function code, data code, ACK/NAK, and end code. The length of the command varies among the functions. Address code ID code Function code Data code ACK/NAK End code ASCII code ‘30h’...
  • Page 4 • The projector may not receive a command when the splash screen is being displayed immediately after turning on the power. Use command “00r10” to cancel the splash screen. • While using the LAN terminals, the LAN functions take precedence. •...
  • Page 5 [RS-232C control flowchart] START Sending out command No response for No NAK returned 1 second or longer Awaiting response from projector NAK returned Command is sent successfully. Command is sent successfully. Command sending fails. Command is executed successfully. Command execution fails. Check the following.
  • Page 6: Command List

    This command is not received during stand-by, BLANK, and input switch control with the contact control. *1: This function works only on UD8400U/UD8400LU. [Example] When setting the input signal to COMPUTER 1. (Values enclosed in quotation marks are ASCII codes.): •...
  • Page 7 “hhhh” represents the operating time. “HHHH” and “VVVV” represent the horizontal and vertical resolutions respectively. “***.**” represents the vertical frequency (in Hz) or the horizontal frequency (in kHz). *1: This function works only on UD8400U/UD8400LU. Use the following commands to obtain other information. Function...
  • Page 8 • When ID is specified (when the command is sent to the projector with the ID of “01” or “ALL”): Status code returned Command sent from the PC, etc. Description from the projector ‘30’ ‘30’ ‘3B’ ‘30’ ‘31’ ‘3B’ ‘76’ ‘49’ ‘0D’ Command for checking the input 00;01;vI terminal is sent to the projector with...
  • Page 9: Function Commands

    4.4 Direct commands (Not executable in stand-by mode. Possible only to read during BLANK.) The direct commands are used to numerically adjust the geometrical correction and bright uniformity correction. When the computer sends the command without adding the setting value, the projector returns the received command with the current setting value added as a data code.
  • Page 10 4.6 Menu setting commands (Not executable in stand-by mode. Possible only to read during BLANK.) The menu setting commands are used for the menu setting of this projector. If the personal computer sends the command without attaching the data code, the projector attaches to the received command its current setting value as the data code and send it back to the PC.
  • Page 11 Function ITEM Data Character ASCII code COOLING CONDITION 41h 47h 0 (0°), 1 (45°), 2 (90°), 3 (135°), 4 (180°), 5 (225°), 6 (270°), 7 (315°) TEST PATTERN 54h 50h 0 (OFF), 1 (CROSS HATCH), 2 (WHITE), 3 (BLACK), 4 (H. COLOR BARS), 5 (V.
  • Page 12 Function ITEM Data Character ASCII code EDGE BLENDING EBRST 45h 42h 52h 53h 54h (RESET) COLOR MATCHING 43h 4Dh 43h 0 (OFF), 1 (MANUAL), 2 (MEASURE) COLOR MATCHING- MNTG 4Dh 4Eh 54h 47h x±30 MANUAL (GAIN) x: Color selection R (RED), Y (YELLOW), G (GREEN),C (CYAN), B (BLUE), M (MAGENTA) COLOR MATCHING- MNTS...
  • Page 13 4Eh 41h 4Dh 45h Up to 15 single-byte alphanumeric characters *1) 7 (SDI) works only on UD8400U/UD8400LU. *2) Setting range differs depending on the input signals. • Some commands are not executed depending on the input signal. The operational restrictions same as those...
  • Page 14 How to set the value Use the character or ASCII code as shown below to set the value. Character ASCII code ‘2Bh’ ‘2Dh’ ‘30h’ ‘31h’ ‘32h’ ‘33h’ ‘34h’ ‘35h’ ‘36h’ ‘37h’ ‘38h’ ‘39h’ [Example 1] When setting the AUTO POWER ON to ON. (Values enclosed in quotation marks are ASCII codes.): •...
  • Page 15 [Example 3] When checking the TINT setting (when the TINT is set to +10). (Values enclosed in quotation marks are ASCII codes.): • When ID is not specified: Status code returned Command sent from the PC, etc. Description from the projector ‘30’...
  • Page 16: Password Lock Commands

    4.7 Password lock commands The password lock commands control the password lock. The password lock enabling or disabling command is sent with a 4 to 8-digit password comprised of any figures 1 to 4 added to the end of the data code. When the password lock is enabled or disabled successfully, the projector sends a return command comprising the data code, password, and “1”...
  • Page 17 Execution procedure of RS-232C commands via LAN When the RS-232C command is executed via LAN, a 32-byte connection certification data must be added before the RS-232C command. To create a 32-byte certification data, following information and procedure are required. • Random character string for creating the certification data that is acquired from the projector (8 characters) •...
