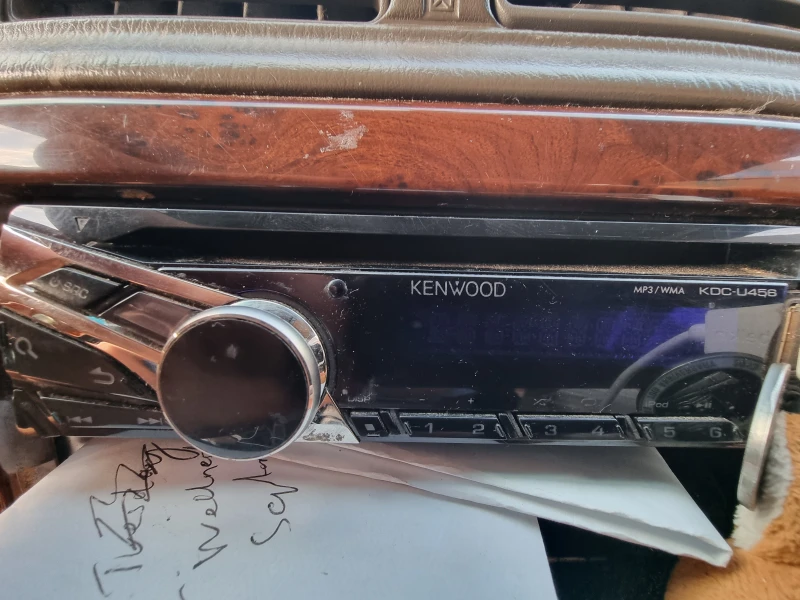

KDC-U456
KDC-U356
KDC-U3056
CD-RECEIVER
INSTRUCTION MANUAL
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or
iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible
for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• The "AAC" logo is a trademark of Dolby Laboratories.
• Android is trademark of Google Inc.
© 2012 JVC KENWOOD Corporation
KDC-3257UGM
KDC-3357URM
KDC-3157UAM
GET0851-001A (MW/M0/M20)
Advertisement
Table of Contents
Related Manuals for Kenwood KDC-U456
Summary of Contents for Kenwood KDC-U456
-
Page 1: Instruction Manual
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. • The “AAC” logo is a trademark of Dolby Laboratories. • Android is trademark of Google Inc. © 2012 JVC KENWOOD Corporation GET0851-001A (MW/M0/M20) -
Page 2: Table Of Contents
CONTENTS BEFORE USE BEFORE USE Warning Do not operate any function that takes your attention away from safe driving. BASICS GETTING STARTED Caution Volume setting: RADIO • Adjust the volume so that you can hear sounds outside the car to prevent accident. •... -
Page 3: Basics
BASICS Faceplate Remote control (RC-406) KDC - U456 KDC - U356 KDC - U3056 (supplied for Volume knob Attach KDC - 3257UGM KDC - 3357URM KDC - 3157UAM (turn/press) Loading slot can also be remotely controlled with an optionally purchased remote control. -
Page 4: Getting Started
F/W UP F/W xx.xx <Y>/N: Starts upgrading the firmware. ; Y/<N>: Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/ KDC - U456 KDC - U356 KDC - U3056 •... -
Page 5: Radio
RADIO Direct Access Tuning (using RC-406) Press AM– / #FM+ to select a band. Press DIRECT to enter Direct Access Tuning. “– – – • –” (for FM), “– – – –” (for MW/ LW/ SW1) or “– – – – –” (for SW2) appears on the display. -
Page 6: Cd / Usb / Ipod
CD / USB / iPod RADIO Default: XX Start playback KDC - 3257UGM KDC - 3357URM KDC - 3157UAM : Selectable only when the source is FM. 0: Eject disc Label side PTY SRCH Press the volume knob to enter PTY language selection. Turn the volume knob to select the PTY language (ENGLISH/ FRENCH/ GERMAN), then press the knob. - Page 7 • AAC/MP3/WMA file: Select the desired folder, then a file. Press again. • iPod or KENWOOD Music Editor Light (KME Light)/ KENWOOD Music Turn the volume knob to select the Control (KMC) file * : Select the desired file from the list (PLAYLISTS, character to be searched for.
-
Page 8: Aux
DISPLAY SETTINGS CD / USB / iPod Preparation: Press the volume knob to enter [FUNCTION]. Set the skip ratio Select [AUX ON] for [AUX SET]. (➜ 4) Turn the volume knob to select [SETTINGS], then KDC - U456 While listening to iPod (for ) or KME press the knob. -
Page 9: Audio Settings
AUDIO SETTINGS While listening to any source... B. BOOST BB-L LV1* / BB-L LV2/ BB-L LV3: Selects your preferred bass boost Press AUDIO to select [AUD CTRL]. level. ; BB-L OFF* : Cancels. Turn the volume knob to make a selection (see the table below), then press LOUDNESS LOUD LV1* / LOUD LV2: Selects your preferred low and high... -
Page 10: More Information
“NO MUSIC” appears. Connect a USB device that contains playable audio files. • You cannot operate iPod if “KENWOOD” or “NA DVICE” appears. Connect a supported USB device, and check the connections. Unplayable discs “... -
Page 11: Specifications
SPECIFICATIONS Subject to change without notice. KDC - U456 KDC - U356 KDC - U3056 Frequency Range Total Harmonic Distortion (1 kHz) 0.01 % 87.9 MHz to 107.9 MHz (200 kHz space) Signal-to-Noise Ratio (1 kHz) 105 dB 87.5 MHz to 108.0 MHz (50 kHz space) Dynamic Range 90 dB KDC - 3257UGM... -
Page 12: Installation / Connection
Installating the unit (in-dash mounting) Warning • The unit can only be used with a 12 V DC power supply, negative ground. Do the required • Disconnect the battery’s negative terminal before wiring and wiring. (➜ 13, 14) mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. -
Page 13: Wiring Connection
KDC - U3056 Brown To the terminal that is grounded when either the telephone rings or during conversation. ( ×1 ) (Mute control wire) (To connect the Kenwood navigation system, consult your navigation manual.) MUTE KDC - 3257UGM (for KDC - 3357URM... - Page 14 P. CONT To the terminal that is grounded when either the telephone rings or Sembollü (üzerinde çarpı işareti olan çöp kutusu) Brown during conversation. (To connect the Kenwood navigation system, refer ürünler ev atıkları olarak atılamaz. (Mute control wire) MUTE your navigation manual.)
