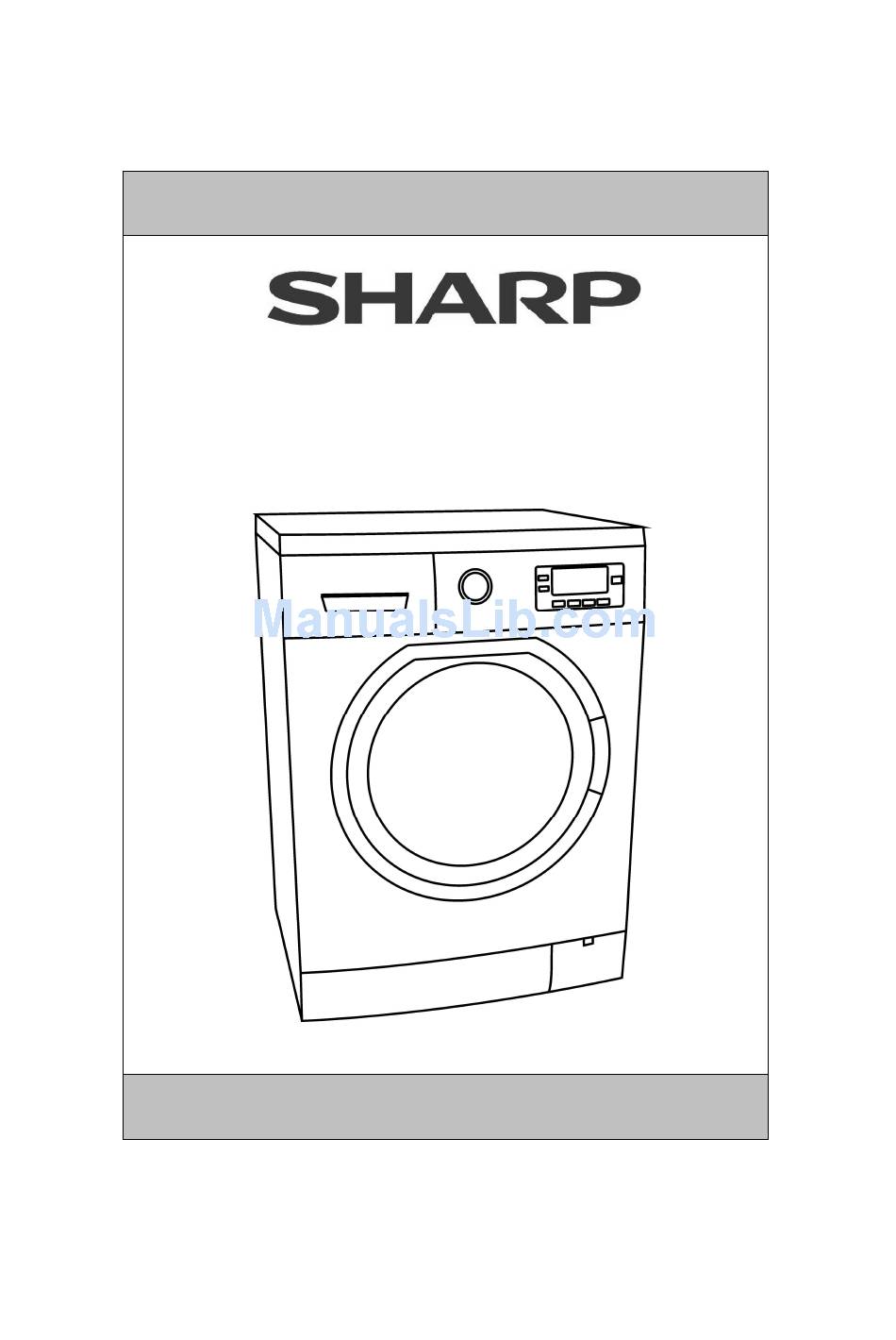

- Page 1 WASHING MACHINE USER’S MANUAL ES-V80HA BEFORE USING THE WASHING MACHINE, PLEASE READ THE INFORMATION IN THIS MANUAL.
-
Page 4: Table Of Contents
CONTENTS CHAPTER-1: TECHNICAL SPECIFICATIONS CHAPTER-2: BEFORE USING WASHING MACHINE Safety warnings Recommendations CHAPTER-3: SETTING UP ..Removing transport safety screws Adjusting adjustable stays Electrical connection Water inlet connection Water discharge connection CHAPTER-4: PRELIMINARY PREPARATION FOR WASHING CHAPTER-5: CONTROL PANEL Detergent drawer Programme knob Electronic display CHAPTER-6: OPERATING YOUR MACHINE... -
Page 5: Chapter-1: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS 1.Detergent drawer 2. Upper tray 3.Programme knob 4.Electronic display 5.Door 6.Pump filter cover 7. Transport safety screws 8.Power cable 9. Discharging hose 10.Water inlet valve... - Page 6 CHAPTER -1: TECHNICAL SPECIFICATIONS (220-240) V ~/50Hz Operating voltage / frequency (V/Hz) Total current (A) Maximum: 1 MPa Water pressure (MPa) Minimum: 0.1 MPa 2200 Total power (W) Maximum dry laundry capacity (kg) 1400 Maximum spin speed (rev / min) Number of washing programmes Dimensions 845 x 597 x 587...
-
Page 7: Chapter-2: Before Using Washing Machine
CHAPTER -2: BEFORE USING YOUR WASHING MACHINE SAFETY WARNINGS SAFETY WARNINGS Do not use double adaptors, power boards or extension cords. Do not use if the power cord or plug is damaged. Never pull the cable when unplugging. Do not plug-in or pull out the plug from the receptacle with wet hands to prevent electric shock. -
Page 8: Recommendations
CHAPTER -2: BEFORE USING YOUR WASHING MACHINE SAFETY WARNINGS / RECOMMENDATIONS You must remove the transport screws of your machine before the first usage. Faults occurring in a machine operated with the transport screw fitted shall be out of scope of warranty. Do not put discharging hose of your machine in a vessel or bucket. -
Page 9: Chapter-3: Setting Up
CHAPTER -3: SETTING UP REMOVING TRANSPORT SAFETY SCREWS Before operating your washing machine, you must remove the transport safety screw on the rear side of the machine. For this reason, transport safety screws shall be loosened by being rotated in counter-clockwise using an appropriate spanner. - Page 10 CHAPTER -3: SETTING UP REMOVING TRANSPORT SAFETY SCREWS Transport screws shall be removed by pulling out. Fit the plastic transport screw taps delivered in accessories bag to the places where transport screws have been removed. The transport safety screws should be stored to be used in case of a transportation.
-
Page 11: Adjusting Adjustable Stays
CHAPTER -3: SETTING UP ADJUSTING ADJUSTABLE STAYS Do not install your machine on a carpet or suchlike grounds. To ensure silent and vibration-free operation of your machine, it should be placed on a non-sliding and firm ground. Loosen the plastic locking nut. Adjust the feet upward and downward by rotating them. -
Page 12: Electrical Connection
CHAPTER -3: SETTING UP ELECTRICAL CONNECTION / WATER INLET CONNECTION Electrical connection Your washing machine is set to 220-240V and 50Hz. Water inlet connection Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specifications. White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable for machines with double water inlets). -
Page 13: Water Discharge Connection
CHAPTER -3: SETTING UP WATER INLET CONNECTION / WATER D SCHARGE CONNECTION Water discharge connection Ensure that water discharge hose is not folded, twisted, crushed or elongated. Water discharge hose can be fitted minimum 60 cm and maximum 100 cm above the ground. The end of water discharge hose can be attached to dirty water discharge hole or outlet joint of the basin elbow. -
Page 14: Chapter-4: Preliminary Preparation For Washing
CHAPTER-4: PRELIMINARY PREPARATION FOR WASHING Separate your laundries according to their types (cotton, synthetic, sensitive, woollen, etc.), their temperatures (cold, 30°, 40°, 60°, 90°) and degree of contamination (slightly stained, stained, highly stained). Never wash your coloured and white laundries together. Wash your coloured laundries separately in the first washing as they may colour bleed. - Page 15 CHAPTER-4: PRELIMINARY PREPARATION FOR WASHING Open the door of your machine. Spread your laundries in your machine. Note: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.
- Page 16 CHAPTER-4: PRELIMINARY PREPARATION FOR WASHING The amount of detergent you will put in your machine will depend on the following criteria: Your detergent requirement will be based on the degree of contamination of your laundries. Do not prewash your less stained laundries and put your slight amount of detergent in the 2 compartment of the detergent drawer.
-
Page 17: Chapter-5: Control Panel
CHAPTER 5: CONTROL PANEL... -
Page 18: Detergent Drawer
CHAPTER 5: CONTROL PANEL DETERGENT DRAWER A. Prewashing compartment B. Main washing compartment C. Softener compartment D. Siphon cover E. Liquid level detergent plate... -
Page 19: Programme Knob
CHAPTER 5: CONTROL PANEL PROGRAMME KNOB Select the programme you wish to wash your laundries through programme knob. You may set the programme selection operation by rotating the programme knob in both direction. Ensure that the programme knob is exactly on the programme you want to select. -
Page 20: Electronic Display
CHAPTER 5: CONTROL PANEL ELECTRONIC DISPLAY 1-Adjusting button for revolution speed 2-Adjusting button for temperature of washing water 3-Auxiliary function prewash 4-Auxiliary function for rapid wash 5-Auxiliary function for easy ironing 6-Auxiliary function for delay timer 7-Start/Pause button 8-Electronic display On the electronic display, you may view washing water temperature, spin speed of your machine, the amount time your machine will continue washing, the auxiliary functions you have selected and... -
Page 21: Chapter-6: Operating Your Machine
CHAPTER 6: OPERATING YOUR MACHINE Plug your machine in. Turn on the tap. Open the machine door. Load your laundries in your machine. Push the door of your machine until hearing the locking sound to close it. Put detergent and softener in the detergent drawer. First washing operation Some water may be left in your machine due to quality control test carried out during production. - Page 22 CHAPTER 6: OPERATING YOUR MACHINE Half-load detection system Your machine features a half-load detection system. In case you put approximately half or less amount of laundries of maximum laundry capacity in your machine, your machine will run so as to save washing time, water consumption and energy in some programmes (White cotton 95°, Colorfast cotton 60°, Non colorfast cotton 40°).
- Page 23 CHAPTER 6: OPERATING YOUR MACHINE PROGRAM TABLE MAXIMUM AMOUNT OF TEMPERATURE DETERGENT PROGRAMME LAUNDRY TYPE (°C) COMPARTMENT LAUNDRY (kg) Very dirty cotton and flax textiles. (Underwears, linen, tablecloth, (towel maximum 4 kg), 1-COTTON bedclothes, etc.) Dirty cotton and flax textiles. (Underwears, linen, tablecloth, (towel maximum 4 kg), 2-COTTON bedclothes, etc.) Normally soiled cotton clothes (Underwears, linen, tablecloth, (towel maximum 4 kg),...
-
Page 24: Auxiliary Functions
CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 1-Spin speed selection and auxiliary function of soaking You can set the spin speed for your laundry via spin speed setting button. When you select a new programme, the maximum spin speed of the programme you have selected will be viewed on the display of spin speed. - Page 25 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS If this function is selected, your laundries will be soaked in the latest rinsing water. When your machine soaks your laundries in the latest rinsing water, symbol will blink on electronic display. If you want to take your laundries out, press on “Start / Pause” button. Your machine will empty the water in it and finish the programme without spinning.
- Page 26 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 2-Washing water temperature selection You can select the washing water temperature with the washing water temperature adjustment button. Whenever you select a new programme, the maximum washing water temperature is shown on the washing water temperature display.
- Page 27 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 3-Auxiliary function prewash Very dirty laundry can be pre- washed before the main wash with this function. When using this function, you should put detergent in front washing compartment of the detergent drawer. 4-Auxiliary function for rapid wash This auxiliary function will enable the washing duration of your...
- Page 28 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 6-Auxiliary function for delay timer By using this auxiliary function, you can let your machine start washing after half an hour to 23 hours. For time of use electricity customer, this allows you to use your electricity at a cheaper tariff rate.
- Page 29 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 7-Anti-Allergic auxiliary function In the programmes where this auxiliary function is active, your machine will perform an extra rinsing operation on your laundries prior to latest rinsing operation. Note: Anti-Allergic auxiliary function is selected automatically only in Hygiene programme.
-
Page 30: Starting The Programme
CHAPTER 6: OPERATING YOUR MACHINE STARTING THE PROGRAMME Start/Pause button By pressing on Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to pause mode, the electronic display will blink. -
Page 31: Adding/Removing Laundry
CHAPTER 6: OPERATING YOUR MACHINE ADDING/REMOVING LAUNDRY Laundry adding to / removing from the machine If you want to add or remove laundries when your machine is running: - Switch your machine to pause mode by pressing on Start/Pause button. - After a while, if you see that the symbol has changed on the display, this means that the door of your machine can now be opened. -
Page 32: Child Lock
CHAPTER 6: OPERATING YOUR MACHINE CHILD LOCK Child lock To avoid programme flow from being affected if programme knobs are pressed or programme knob is turned when performing washing operation in your machine, child lock is available. Child lock will be activated by pressing on both auxiliary functions of rapid wash and easy ironing at the same time in excess of 3 seconds. -
Page 33: Cancelling Programme
CHAPTER 6: OPERATING YOUR MACHINE CANCELLING PROGRAMME Cancelling programme If you want to cancel any programme running: - Switch the programme knob to 0. - Your machine will stop the washing operation and the programme will be cancelled. - To get rid of the water accumulated in the machine switch the programme knob to any programme. -
Page 34: Finishing Programme
CHAPTER 6: OPERATING YOUR MACHINE FINISHING PROGRAMME Finishing programme - Your machine will stop by itself as soon as the programme you have selected finishes. -Expression of “END” will flash on the electronic display. Note: Within 2 minutes after the programme has finished, your machine will extinguish the electronic display to save energy. -
Page 35: Chapter-7: Electronic Display Warning Symbols
CHAPTER -7: ELECTRONIC DISPLAY WARNING SYMBOLS WARNING OF WATER CUT-OFF / LOW MAINS WATER PRESSURE If symbol flashes on the electronic display: - Tap may be closed. Check. - Mains water may be cut-off. Check. If so, switch the programme knob to position 0. -
Page 36: Warning Of Clogged Pump Fitler
CHAPTER -7: ELECTRONIC DISPLAY WARNING SYMBOLS WARNING OF CLOGGED PUMP FILTER If symbol flashes on the electronic display: - Pump filter may be clogged. Clean the pump filter. (*) - Discharging hose may be clogged or twisted. Check the discharging hose. -
Page 37: Chapter-8: Maintenance And Cleaning Of Your Machine
CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE Unplug your machine. Turn the tap off. WATER INLET FILTERS Filters to avoid dirt and foreign substances in the water from penetrating into the machine filters are available both on the side of the tap and on the ends of water valves along the water inlet hose of your machine. - Page 38 CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / PUMP FILTER A filter system which avoids small items (i.e. coins) from entering into the pump during water discharging is carried out by your machine after completing washing to prolong the lifecycle of your pump. It is recommended that you clean your pump filter once in 2 months.
- Page 39 CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / PUMP FILTER After cleaning the filter, fit the filter cover by rotating it clockwise. Fit the pump section of the toe board. Remember that water will leak if you do not fit the filter cover properly.
- Page 40 CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / DETERGENT DRAWER Your detergents may deposit residue in the detergent drawer and housing of detergent drawer over time. To clean the residue formed, disassemble the detergent drawer in particular periods. To eject the detergent drawer: Pull the detergent drawer up to the end Keep on pulling by depressing on the flush cover in the detergent...
- Page 41 CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / SIPHON PLUG / BODY / DRUM Siphon plug Disassemble the detergent drawer. Disassemble the flush stopper and clean the softener residues completely. Refit the flush stopper after cleaning it. Check whether it has settled properly. Body Clean the outer body of your machine with warm water and a non- inflammable cleaning agent that will not abrade the body of your...
-
Page 42: Chapter-9: Practical Information
CHAPTER -9: PRACTICAL INFORMATION Alcoholic drinks: Spotted areas should initially be washed using cold water, and then be wiped with glycerine and water and rinsed with vinegar-mixed water. Shoe shine: Spots should be rubbed out gently without damaging the cloth and be scrubbed and rinsed with detergent. - Page 43 CHAPTER -9: PRACTICAL INFORMATION Blood stain: Submerge your laundries in cold water for 30 minutes. If the stain is not removed, then submerge in a mixture of water and ammoniac (3 spoons of ammoniac in 4 litres of water) for 30 minutes. Cream, ice cream and milk: Submerge your laundry in cold water and scrub the spotted area with detergent.
-
Page 44: Chapter-10: Troubleshooting
CHAPTER -10: TROUBLESHOOTING All repairing operations required for your machine should be carried out by authorised service, personnel If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows: Unplug your machine. - Page 45 CHAPTER -10: TROUBLESHOOTING REMOVING FAULT POSSIBLE CAUSE METHODS Discharging hose Check the clogged or twisted. discharging hose. Clean the pump Pump filter clogged. Your machine does filter. (*) not discharge water. Spread your Laundries settled in laundries in the the machine non- machine properly homogeneously.
- Page 46 CHAPTER -10: TROUBLESHOOTING REMOVING FAULT POSSIBLE CAUSE METHODS Press on Start/Pause button. To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture Excessive amount of in the detergent detergent used. drawer. After 5-10 Excessive foam is minutes, press on formed in the...
- Page 47 CHAPTER -10: TROUBLESHOOTING REMOVING FAULT POSSIBLE CAUSE METHODS Adjust the amount of detergent based on Water being hard. the instruction of (Dirty, hard, etc.) detergent Unsatisfactory manufacturer. washing result. Spread your laundries Laundries distributed in the machine in your machine non- properly and homogenously.
- Page 48 CHAPTER -10: TROUBLESHOOTING REMOVING FAULT POSSIBLE CAUSE METHODS Unbalanced load control system will try to spread your laundries homogeneously. Spinning operation No fault. Unbalanced Wringing operation is will start after load control system not performed or spreading your has been activated. runs late.
-
Page 49: Chapter-11: Automatic Fault Warnings And What To Be Done
CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE Your machine is equipped with the systems which are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations. - Page 50 CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE TROUBLE CODE POSSIBLE WHAT TO DO FAULT - Tap may be closed. Check. - Mains water may be cut-off. Check. - If so, switch the programme knob to position 0. You can select a programme and run your machine after the mains water is supplied.
-
Page 51: Chapter-12: Saving Energy And Water
CHAPTER -12: SAVING ENERGY AND WATER Energy and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, laundry amount, additional function selection, voltage fluctuations. It will reduce energy and water consumption to use your machine with the laundry capacity proposed for the selected programme, wash your less dirty or daily laundries in short programmes, carry out cleaning and maintenance periodically, use your machine in... -
Page 52: Disposal Of Your Old Machine
DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is...
