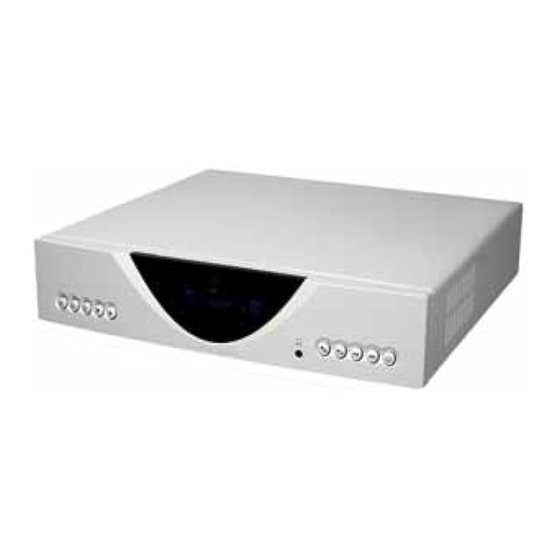

Linn Classik Music Owner's Manual

Integrated music system
Hide thumbs Also See for Classik Music:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
CLASSIK MUSIC
INTEGRATED MUSIC SYSTEM
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classik Music and is the answer not in the manual?

Questions and answers

Related Manuals for Linn Classik Music

Summary of Contents for Linn Classik Music

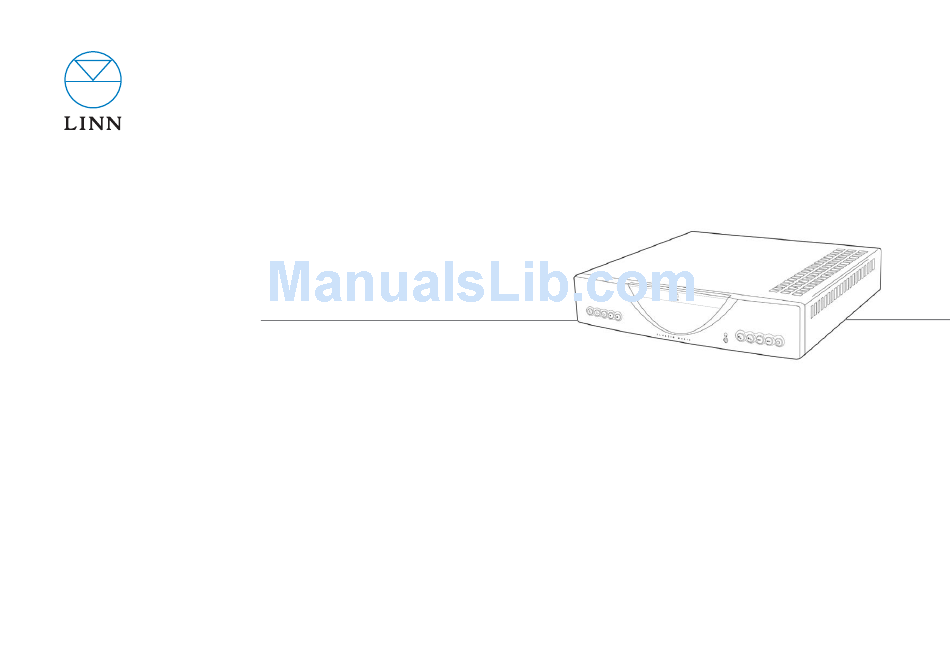

  • Page 1 CLASSIK MUSIC INTEGRATED MUSIC SYSTEM OWNER’S MANUAL...
  • Page 2 Linn Products Limited. Linn Products Limited assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Trade marks used in this publication: Linn, the Linn logo and Knekt are registered trade marks of Linn Products Limited. Classik Music is a trade mark of Linn Products Limited.

  • Page 3: Table Of Contents

    TUNER Voltage selection, fuses and mains lead Positioning About RDS Cleaning Setup Back panel First of all Connecting the Classik Music Tuning functions AM and FM band selection FRONT PANEL AND HANDSET Frequency selection Front panel Signal searching Handset Signal scanning...
  • Page 4 CLASSIK MUSIC OWNER’S MANUAL USER OPTIONS Changing the user options’ settings Table of user options TECHNICAL SPECIFICATIONS GUARANTEE AND SERVICE ww w. l i nn. c o .u k...

  • Page 5: Introduction

    Linn quality music throughout your home. the above-listed disc types, it is impossible to guarantee full operation of every function of the Classik Music with every disc that is on sale now or in Add Linn loudspeakers to your Classik Music for optimum performance.

  • Page 6: Connecting

    We recommend that you retain all packaging in case you need to transport the Classik Music at a later date. Important: Do not open the Classik Music’s disc drawer if the unit is behind glass doors Voltage selection, fuses and mains lead as this can damage the drawer’s mechanism.

  • Page 7: Back Panel

    Speaker output connectors ROOM 1 - 4, MAIN IN Amplified output for direct connection to loudspeakers Knekt connectors. For linking to other units in a Linn Knekt multi-room system PRE-AMP OUT Pre-amplifier line output connectors. For connecting to a power amplifier...

  • Page 8: Connecting The Classik Music

    Analogue audio inputs for auxiliary sources other is completed. DIG IN 1 & 2 Use the mains lead provided to connect the Classik Music to a mains supply. One digital electrical (coaxial) and one digital optical input for connecting auxiliary sources Connecting the tuner aerials Connect the supplied AM and FM aerials as shown.
  • Page 9 TO LOUDSPEAKERS Note: If you connect a source product’s digital output to the Classik Music you will be using the Classik Music to convert the audio signal from digital to analogue. This may provide better audio quality than using the analogue output on the source product.
  • Page 10 TO RECORDING DEVICE Connecting to an external pre-amplifier If you wish to listen to CDs via the digital-to-analogue converter in an external pre-amplifier, connect the Classik Music’s OPTICAL DIG OUT to the external pre-amplifier. TO POWER AMP INPUT TO EXTERNAL PRE-AMPLIFIER...

  • Page 11: Front Panel And Handset

    Mutes/unmutes the audio to the loudspeakers Plays or pauses a disc and headphones Previous/next track selection Adjust the volume level Brings the Classik Music out of, or puts into, standby mode Change source ww w. l i nn. c o .u k...

  • Page 12: Handset

    LEDs Indicate the mode of the handset when a key is pressed DVD, CD Puts the handset into Disc mode. Allows operation of an auxiliary Linn CD player AMP Puts the handset into Amp mode (for access to functions marked in blue)
  • Page 13 Next track selection Fast scan forwards Fast scan backwards Keys and functions not listed above do not function with the Classik Music but may with other Linn products. * Used if the Classik Music is installed in a Linn Knekt system.

  • Page 14: Handset Modes

    Disc mode, or the AMP key for Amp mode. If you have a Linn DVD player in the same room as the Classik Music, both the DVD player and the Classik Music may respond to key presses from the handset.

  • Page 15: Source Selection

    CLASSIK MUSIC OWNER’S MANUAL SOURCE SELECTION There are six sources available on the Classik Music: two internal sources (disc and tuner) and four auxiliary sources (AUX 1, AUX 2, DIG 1 and DIG 2). To select a source: using the handset –...

  • Page 16: Playing Cds

    OWNER’S MANUAL PLAYING CDs First of all Press on the Classik Music’s front panel or handset. Front panel display If the front panel does not show the disc display (see below), press DVD Key to front panel display symbols: on the handset, or repeatedly press or hold...

  • Page 17: Navigating A Cd

    CLASSIK MUSIC OWNER’S MANUAL To pause/resume playback: Next and previous track selection • Press on the handset or on the front panel. To skip forwards or backwards through the tracks on a CD: using the front panel or handset –...

  • Page 18: Fast Scan Forwards And Backwards

    CLASSIK MUSIC OWNER’S MANUAL Fast scan forwards and backwards Using program modes to control playback To fast scan forwards or backwards while a CD is playing: using the handset – • Press Further presses of increases the speed of playback: 4x, 6x, 8x normal speed.

  • Page 19: Repeat Track

    CLASSIK MUSIC OWNER’S MANUAL Repeat track Shuffle program The CD must be stopped before this function can be accessed. To repeat a specific track: using the handset – To shuffle the order in which tracks are played: • While the chosen track is playing press SHIFT, then press TRACK using the handset –...

  • Page 20: Exclude Program

    CLASSIK MUSIC OWNER’S MANUAL Repeat steps 2 and 3 for all tracks you wish to select. Press to store the program and start playback of the selected tracks. To clear a stored program or cancel include program mode: • Press SHIFT, then press INCLUDE within two seconds.

  • Page 21: Tuner

    Tuning functions The Classik Music must be set for the correct radio frequency range for your country. Use the keys on the handset to select your region (either Europe, USA or Japan), then press ‘select’ on the handset. If you are unsure of the correct setting for your country please contact your local Linn retailer.

  • Page 22: Am And Fm Band Selection

    CLASSIK MUSIC OWNER’S MANUAL AM and FM band selection Signal searching This function allows you to search up or down the AM or FM band until a To toggle between AM and FM: signal is found. • Press BAND on the handset.

  • Page 23: Rds Tuning Function

    • Press SCAN. Automatic preset storage Note: If no stations of a particular type are available the Classik Music will return to To automatically scan for all available stations and store them as the last station selected. presets: using the handset –...

  • Page 24: Manual Preset Storage

    CLASSIK MUSIC OWNER’S MANUAL • To skip the 5 second pause and store the station as a preset, press and You are able to give each preset a name of up to 10 characters. hold . Scanning will then continue.

  • Page 25: Preset Deletion

    CLASSIK MUSIC OWNER’S MANUAL • Press to select the last/first preset of each letter of the alphabet. • Enter the first character of the preset’s name using the digit keys on the handset, remembering that digit 2 accesses any preset that begins with either A, B, C or 2, digit 3 accesses presets that begin with D, E, F or 3, etc.

  • Page 26: Pre-Amplifier

    Press SRC – / SRC + on the handset or on the front panel. To return to operating the disc source on the Classik Music using the • Wait a few seconds and the front panel will revert to its previous display.

  • Page 27: Balance Adjustment

    CLASSIK MUSIC OWNER’S MANUAL Balance adjustment To exit balance adjustment: • Press SRC – / SRC +. • Wait a few seconds and the front panel will revert to its previous display. Bass and treble adjustment This function allows you to shift the balance between the left and right loudspeakers.
  • Page 28 CLASSIK MUSIC OWNER’S MANUAL • To increase the level of bass/treble, repeatedly press or hold on the handset. • To decrease the level of bass/treble, repeatedly press or hold on the handset. To exit bass or treble adjustment: • Press SRC – or SRC +.

  • Page 29: Recording A Source

    Classik Music to a recording device (such as a DAT recorder). To direct a source signal to a recording device, simply select the desired source using the handset or front panel. (The outputs of the Classik Music always carry the audio signal of the currently selected source.)

  • Page 30: User Options

    • Press Changing the user options’ settings The user settings are saved and the Classik Music turns on. Table of user options The following table shows the user options that are available, briefly describes them and shows the available settings for each.
  • Page 31 IR out 1 infrared flasher 1. If the default 6 to 1005 kHz Disc Classik Music is not on the is not used then the frequency disc source and you press is in the range 6 to 1005 kHz one of the disc function keys (non-linear).

  • Page 32: Technical Specifications

    1 x optical TOSLINK Control RS232 input Speaker outputs Linn accessory socket: RJ45 Input impedance Linn Knekt main input: RJ45 Aux inputs 100 kΩ Linn Connect: 4 x RJ45 Input voltage IR out: 2 x 3.5 mm mono jack, variable...

  • Page 33: Guarantee And Service

    Linn offices opposite. Hühnerposten 1d, D-20097 Hamburg, Deutschland Phone: +49-(0) 40-890 660-0 Full details of your local retailer/distributor can be found on the Linn web site: Fax: +49-(0) 40-890 660-29 www.linn.co.uk Email: info@linngmbh.de www.linn.co.uk...
