PowerBass XAX 2160FD Owner's Manual

Xtreme series mini amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

XAX 2160FD
XAX 4160FD
XAX 5640FD

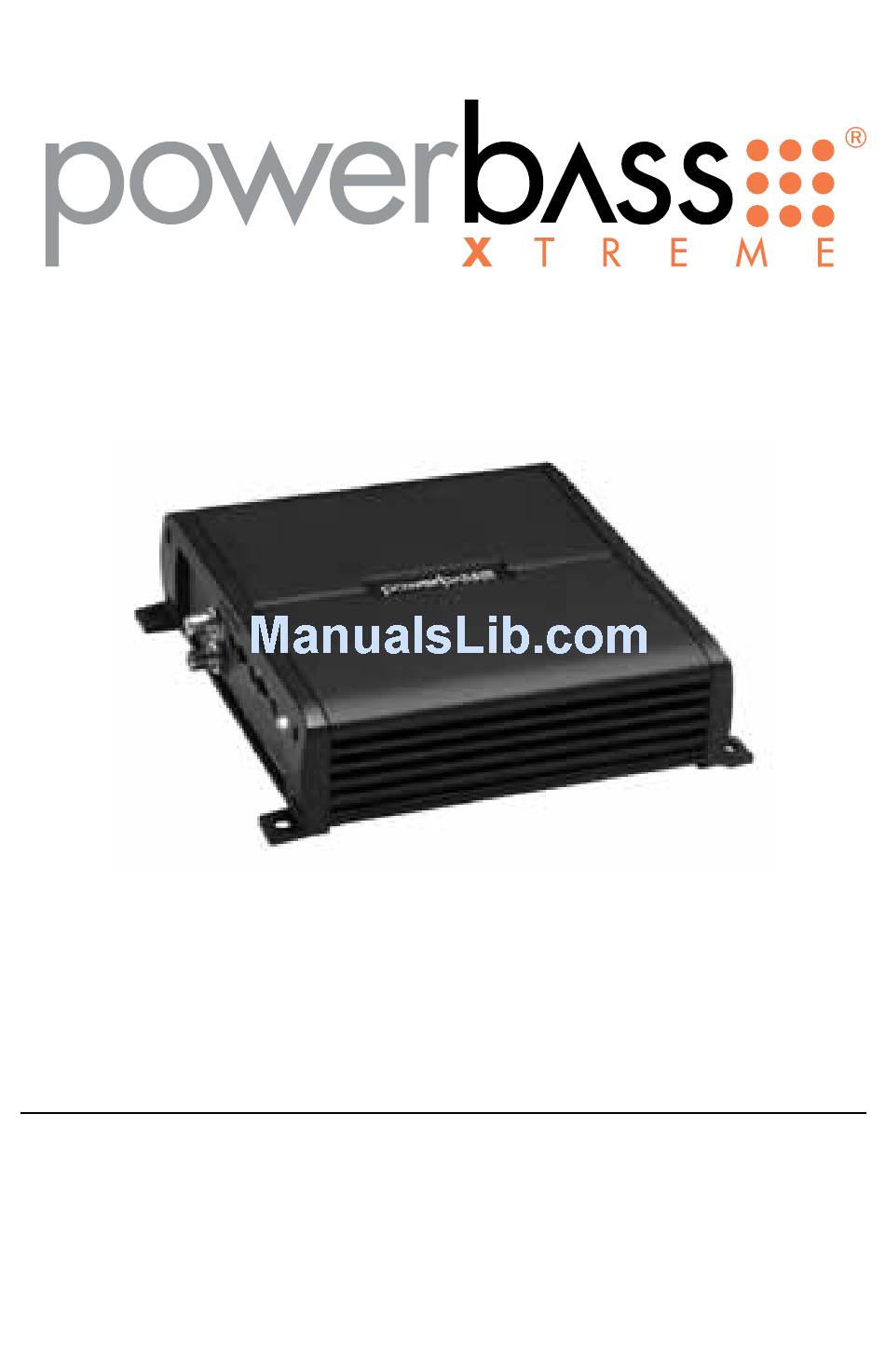

XTREME SERIES MINI AMPLIFIER

Owners Manual

Please read through this manual to familiarize yourself with your new amplifier. Should your PowerBass
Xtreme mobile amplifier ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAX 2160FD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass XAX 2160FD

Summary of Contents for PowerBass XAX 2160FD

  • Page 1: Owners Manual

    XAX 4160FD XAX 5640FD XTREME SERIES MINI AMPLIFIER Owners Manual Please read through this manual to familiarize yourself with your new amplifier. Should your PowerBass Xtreme mobile amplifier ever require service, you will need to have the original dated receipt.
  • Page 2 In the interest of safety, PowerBass USA highly recommends listening at lower volume levels when driving.

  • Page 3: Technical Features

    TECHNICAL FEATURES • FRD (Full Range Class-D) technology • Philips/NXP Chip Set • Ultra Low Current Draw • High Damping Control Circuit • High Efficiency SMD Circuit Technology • Double Sided Copper Plated PCB • Digital Sound Optimization Circuitry • Dead Zero Switching •...

  • Page 4: Preparing For Installation

    Soldering iron • Electronic (not Acid Core) Solder INSTALLATION PRECAUTIONS NOTE: Proceed only if you are a qualified installer, otherwise; see your Authorized PowerBass Dealer to professionally install this amplifier. Always wear protective eyewear when using tools. • Turn off all stereo and other electrical devices before you begin.

  • Page 5: Mounting The Amplifier

    (volume) to maintain operation. For this reason the amplifier should be mounted in a location which will allow air to circulate freely. The compact size of the PowerBass XAX Series amplifier allows greater flexibility in mounting.

  • Page 6: Mounting Location

    The best places to mount your amplifier are: The floor of the trunk, under a seat, or on the back of the rear seat. For alternate installation locations, please consult your authorized PowerBass Dealer. *** WARNING *** •...

  • Page 7: Control Panel Layout

    CONTROL PANEL LAYOUT BRIGED BA TT+ REMOTE FUSE SPEAKER OUTPUT Fig.2 Panel Layout NOTE: Panel Layout and Controls may differ by model. 1. Line INPUT (RCA) Jacks These RCA style input jacks are for use with source units that have RCA line level outputs. A source unit with a minimum of 0.5 volt is required for proper operation.

  • Page 8: Power/Status Indicator

    12. GND (Ground Input Connection) A good quality ground is required for your PowerBass Xtreme amplifier to operate at peak performance. A short length of cable the same gauge as the Power cable should be used to attach the Ground terminal directly to the chassis of the vehicle.
  • Page 9 Remember, bigger wire is better! For best results we recommend a PowerBass ampli- fier install kit, available at your local PowerBass dealer.

  • Page 10: Power Wiring

    These amplifiers are designed to work within a 10 to 16 volt DC range. Before any wires are connected, the vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter. First, check the voltage at the battery with the ignition in the OFF position. The voltmeter should read no less than 12V.
  • Page 11 Secure the ground cable to the body using a bolt, star washer and nut. Spread silicon over the screw and bare metal to prevent rust and possible water leaks. NOTE: The Ground must be capable of carrying the same amount of current as the positive wire. Now it’s time to connect the power and ground cables to the amplifier.
  • Page 12 RCA INTERCONNECT Fig.4 Low Level Input using RCA Choose the correct length and style of RCA interconnects for your needs. Always use high quality RCA audio cables (not supplied) for signal connections—those with multiple layers of shielding or a twisted pair variety for better noise rejection.

  • Page 13: Set-Up Adjustments

    SET UP ADJUSTMENTS INPUT Gain Adjustment GAIN Input Sensitivity Control Fig.5 GAIN Control This control allows you to match the input level of the amplifier to the output level of your head unit. Matching the input can be accomplished in three simple steps: Set the volume of GAIN on the amplifier to Min (completely counter clock wise).
  • Page 14 25Hz 250Hz Fig.8 Low Pass Control (LPF) LPF (Low Pass Filter) Adjustment Using this volume, adjust the LPF frequency for your subwoofer speaker(s) operation. The X-OVER switch position should be at “LPF”. SPECIAL CONTROLS FOR THE XAX 5640FD The following instructions apply to the model XAX-5640FD only. You will not find these controls on any of the other models in this series.

  • Page 15: Speaker Wiring

    SPEAKER WIRING AND CONFIGURATIONS Speaker Load Keep in mind your PowerBass Autosound amplifier is a high power amplifier and not a high current amplifier. In other words this amplifier requires a minimum impedance of 2 ohms STEREO and 4 ohms bridged MONO to operate trouble free.
  • Page 16 Speaker Output Connections 2 Channel Model ( XAX 2160FD 2-Channel Speaker Output Connection SWITCH POSITION FULL RANGE SPEAKERS X–OVER 2 Ohms 2 Ohms Minimum Minimum FULL BRIGED BA TT+ REMOTE FUSE SPEAKER OUTPUT Fig.11 2-CH Speaker Connection (Do not connect total impedance under 2 ohms)
  • Page 17 Speaker Output Connections 4 Channel Model ( XAX 4160FD 3. 4-Channel Speaker Output Connection CH1,2 SWITCH FULL RANGE SPEAKERS SWITCH POSITION 2 ohm 2 ohm minimum minimum X–OVER FULL CH1C BA TT+ REMOTE FUSE CH3,4 SWITCH SWITCH POSITION CH3C 25A2 SPEAKER OUTPU T X–OVER 2 ohm...
  • Page 18 Speaker Output Connections 5 Channel Model ( XAX 5640FD 6. 5-Channel Speaker Output Connection Fig.16 5-CH Speaker Connection / 2 ohms minimum 7. 3-Channel Speaker Output Connection Fig.17 3-CH Speaker Connection...

  • Page 19: Recommended Wire Sizes

    Miscellaneous: ______________________________________________________ This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. © Copyright 2010 PowerBass USA, Inc.

  • Page 20: Troubleshooting Tips

    NOTE: If the Status L.E.D. is activated and glows RED with no speakers connected to the amplifier, and all the power connections are correct, this would indicate an internal problem with the ampli- fier. Contact PowerBass USA or your local dealer.
  • Page 21 SPECIFICATIONS FOR XTREME MINI AMPLIFIER Two Channel Model XAX 2160FD 4 Ohms Power (Watts) 100 x 2 2 Ohms Power (Watts) 160 x 2 4 Ohms Mono Power (Watts) 320 x 1 Peak Power (Watts) < 0.02% Frequency Response 20Hz - 30kHz S/N Ratio >...
  • Page 22 SPECIFICATIONS FOR XTREME MINI AMPLIFIER Cont. XAX 5640FD Five Channel Model 4 Ohms Stereo Power (Watts) 100 x 4 + 200 x 1 2 Ohms Stereo Power (Watts) 160 x 4 (2 ohms min) + 200 x 1 (4 ohms min) 4 Ohms Mono Power (Watts) 320 x 2 + 200 x 1 Peak Power (Watts)
  • Page 23 Please call (909) 993-5399 for PowerBass Customer Service. You must obtain an RA# (Return Authorization Num- ber) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping.
  • Page 24 PowerBass Xtreme – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
