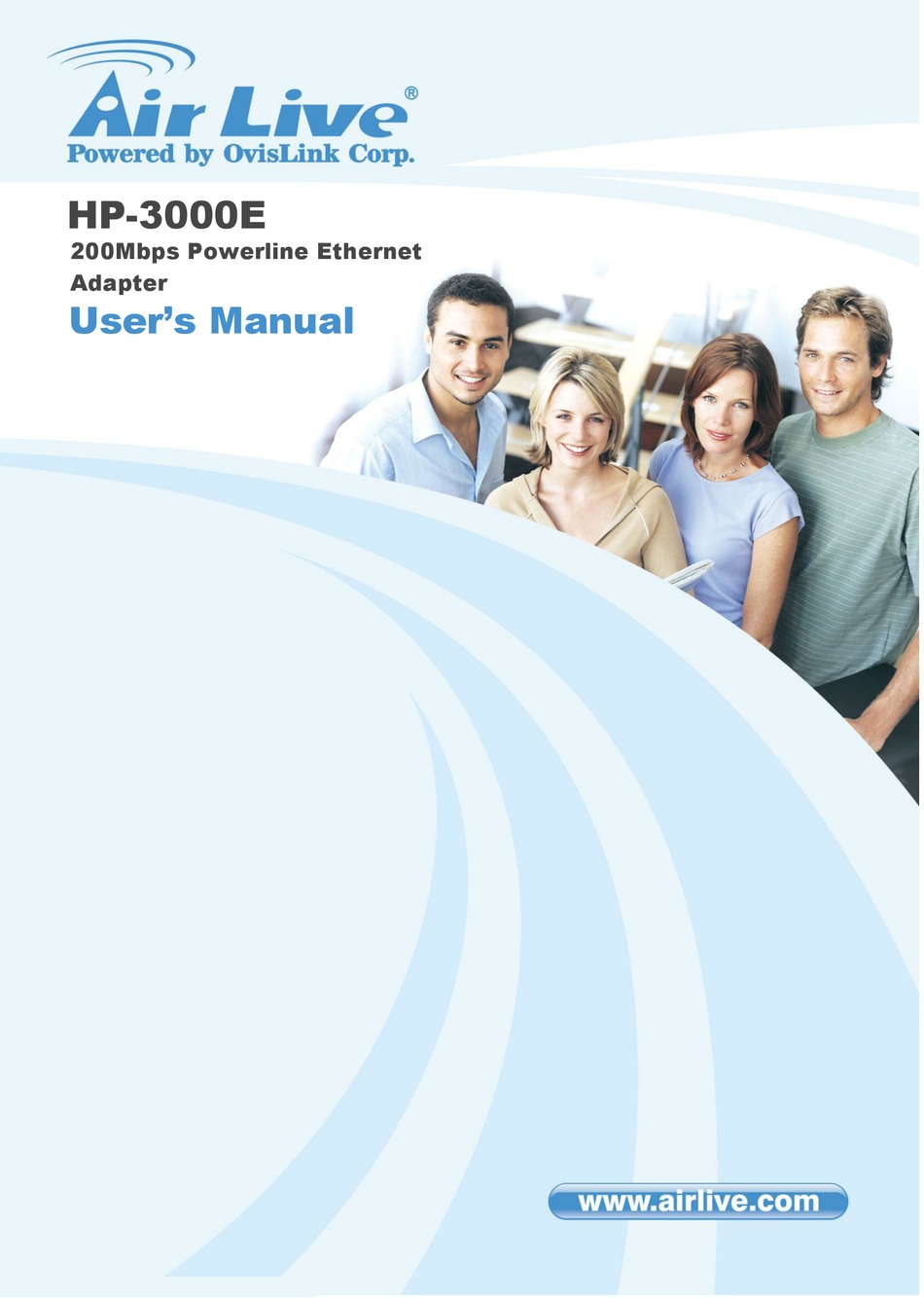

- Page 1 HP-3000E 200Mbps Powerline Ethernet Adapter User’s Manual ...
-
Page 2: Declaration Of Conformity
OvisLink Corp. 5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product 200Mbps Powerline Ethernet Adapter AirLive HP-3000E is in conformity with In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive Clause Description... - Page 3 Directiva 1999/5/CE. disposiciones aplicables o exigibles de la Directiva 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ OvisLink Corp. ΔΗΛΩΝΕΙ OvisLink Corp izjavlja, da je ta AirLive HP-3000E v Ελληνική [Greek] ΟΤΙ AirLive HP-3000E ΣΥΜΜΟΡΦΩΝΕΤΑΙ Slovensko skladu z bistvenimi zahtevami in ostalimi relevantnimi ΠΡΟΣ...
-
Page 4: Federal Communication Commission Interference Statement
This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. AirLive HP-3000E User’s Manual... - Page 5 Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. AirLive HP-3000E User’s Manual...
-
Page 6: Table Of Contents
1.2 Physical Details .......................... 4 1.2.1 LEDs ..........................5 1.2.2 Buttons ..........................5 Chapter II : Setup..............................6 Chapter III : Security Button .......................... 10 Chapter IV : Operation ............................ 11 Chapter V : Specification ..........................12 AirLive HP-3000E User’s Manual... -
Page 7: Chapter I : Introduction
200Mbps. The 200Mbps Powerline Ethernet Adapter is a simple plug and play installation, no configuration or software setup required. But a Windows PC can be used for configuration when needed. 1.2 Physical Details AirLive HP-3000E User’s Manual... -
Page 8: Leds
This button is used to clear ALL data and restore ALL Button settings to the factory default values. The rear panel contains only the AC plug and a sticker containing the 200Mbps Powerline Ethernet Adapter's Password. (Each Powerline device has a unique Password.) AirLive HP-3000E User’s Manual... -
Page 9: Chapter Ii : Setup
SETUP.EXE. Follow the prompts to install the HP-3000E utility. Microsoft .NET Framework 1.1 is needed for installing HP-3000E utility. The wizard will check automatically whether the Microsoft .NET Framework 1.1 was installed on your PC or not. If not, the wizard will pop up a message box. Click OK to install Microsoft .NET Framework 1.1 first. - Page 10 Once installation is completed, run the HP-3000E utility program. The first screen (Network Tab) will display information of the compatible devices found. Choose the desired device from the Device Selection, and the information of the selected device will be displayed in the Network Topology table.
- Page 11 All Powerline devices must use the same Network Key, or they will not be able to communicate with each other. On this screen, you can also click Use default to use the 200Mbps Powerline Ethernet Adapter's default Network Key. Click Close to exit the HP-3000E utility. AirLive HP-3000E User’s Manual...
- Page 12 If your PC is not the device you wish to use with the 200Mbps Powerline Ethernet Adapter, connect the Ethernet cable from the 200Mbps Powerline Ethernet Adapter to the desired device. The 200Mbps Powerline Ethernet Adapter is now ready for use. AirLive HP-3000E User’s Manual...
-
Page 13: Chapter Iii : Security Button
Press the security button on the adapter (c) for less than 3 seconds. The Power LEDs start to flash. After a few seconds, the Power and PLC link LEDs should be on. The configuration is successful. AirLive HP-3000E User’s Manual... -
Page 14: Chapter Iv : Operation
You can use the Encryption tab of theHP3000E utility to assign a Network Key to other Powerline devices. 200Mbps Powerline Ethernet Adapter works better when plugged into the wall socket. Connect the 200Mbps Powerline Ethernet Adapter into the power strip or surge protectors may degrade the network performance. AirLive HP-3000E User’s Manual... -
Page 15: Chapter V : Specification
FCC Part 15 Class B CE Mark, 89/336/EEC Safety Approvals UL Listed (UL60950-1)/cUL CSA No.22-60950-01-03 CB, IEC/EN 60950-1;2001 Operating Systems Windows 98, Windows Me, Windows 2000, Windows XP, Linux, Mac OS X or any other operating system with network support AirLive HP-3000E User’s Manual...
