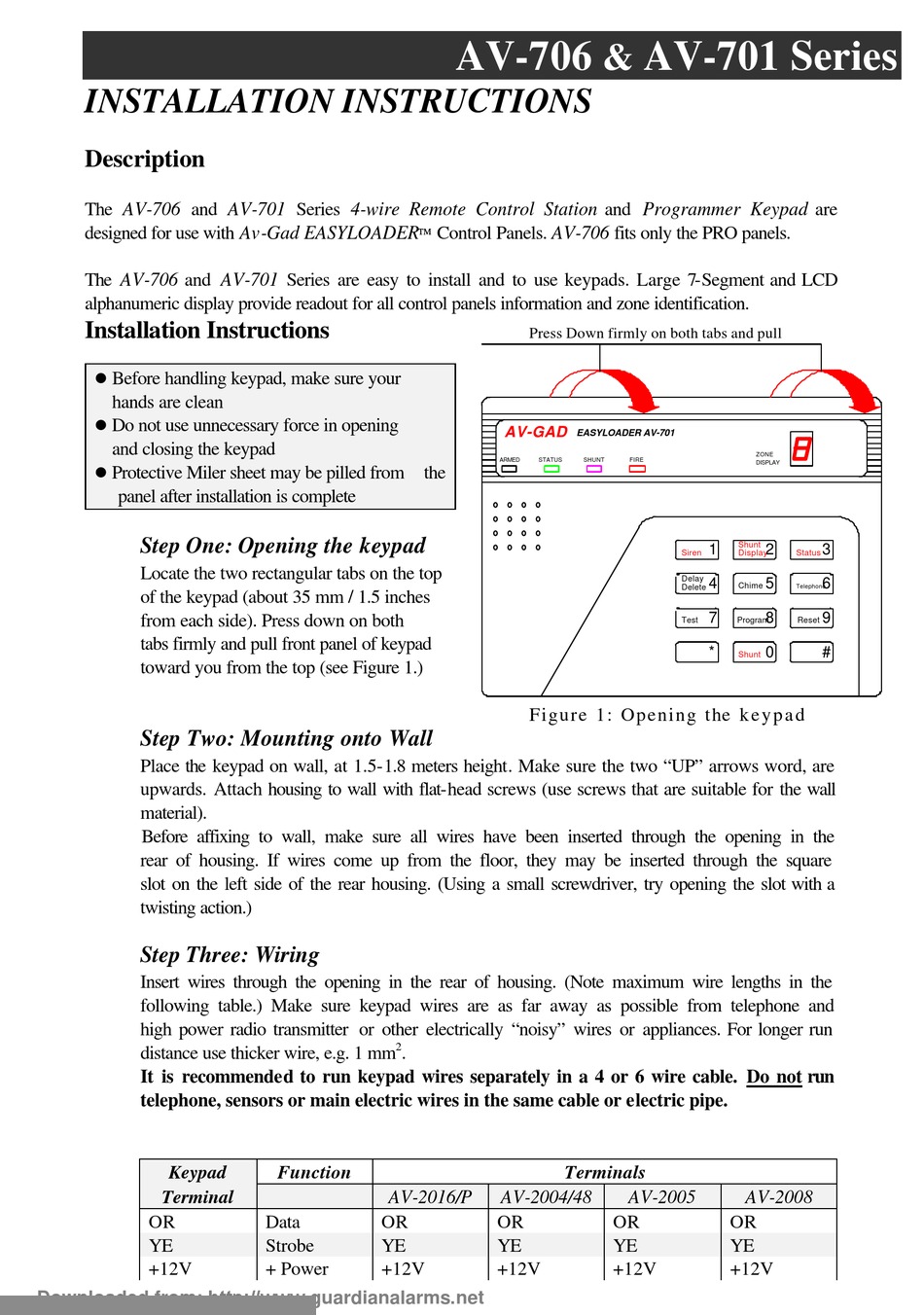

AV-GAD EasyLoader AV-701TS Installation Instructions

INSTALLATION INSTRUCTIONS

Description

The AV-706 and AV-701 Series 4-wire Remote Control Station and Programmer Keypad are
designed for use with Av-Gad EASYLOADER Control Panels. AV-706 fits only the PRO panels.
The AV-706 and AV-701 Series are easy to install and to use keypads. Large 7-Segment and LCD
alphanumeric display provide readout for all control panels information and zone identification.
Installation Instructions
l
Before handling keypad, make sure your
hands are clean
l
Do not use unnecessary force in opening
and closing the keypad
l
Protective Miler sheet may be pilled from the
panel after installation is complete

Step One: Opening the keypad

Locate the two rectangular tabs on the top
of the keypad (about 35 mm / 1.5 inches
from each side). Press down on both
tabs firmly and pull front panel of keypad
toward you from the top (see Figure 1.)

Step Two: Mounting onto Wall

Place the keypad on wall, at 1.5-1.8 meters height. Make sure the two "UP" arrows word, are
upwards. Attach housing to wall with flat-head screws (use screws that are suitable for the wall
material).
Before affixing to wall, make sure all wires have been inserted through the opening in the
rear of housing. If wires come up from the floor, they may be inserted through the square
slot on the left side of the rear housing. (Using a small screwdriver, try opening the slot with a
twisting action.)

Step Three: Wiring

Insert wires through the opening in the rear of housing. (Note maximum wire lengths in the
following table.) Make sure keypad wires are as far away as possible from telephone and
high power radio transmitter or other electrically "noisy" wires or appliances. For longer run
distance use thicker wire, e.g. 1 mm
It is recommended to run keypad wires separately in a 4 or 6 wire cable. Do not run
telephone, sensors or main electric wires in the same cable or electric pipe.
Keypad
Terminal
OR
YE
+12V
Downloaded from: http://www.guardianalarms.net
2
.
Function
AV-2016/P
Data OR
Strobe YE
+ Power +12V
AV-706
&
Press Down firmly on both tabs and pull
AV-GAD
EASYLOADER AV-701
ARMED STATUS SHUNT FIRE
Figure 1: Opening the k e y p a d
Terminals
AV-2004/48 AV-2005
OR OR
YE YE
+12V +12V
AV-701 Series
ZONE
DISPLAY
Shunt
1 2
Siren Display Status
Delay
4 5
Chime
Delete
Telephone
7 8
Test Program Reset
* 0
Shunt
AV-2008
OR
YE
+12V
3
6
9
#
