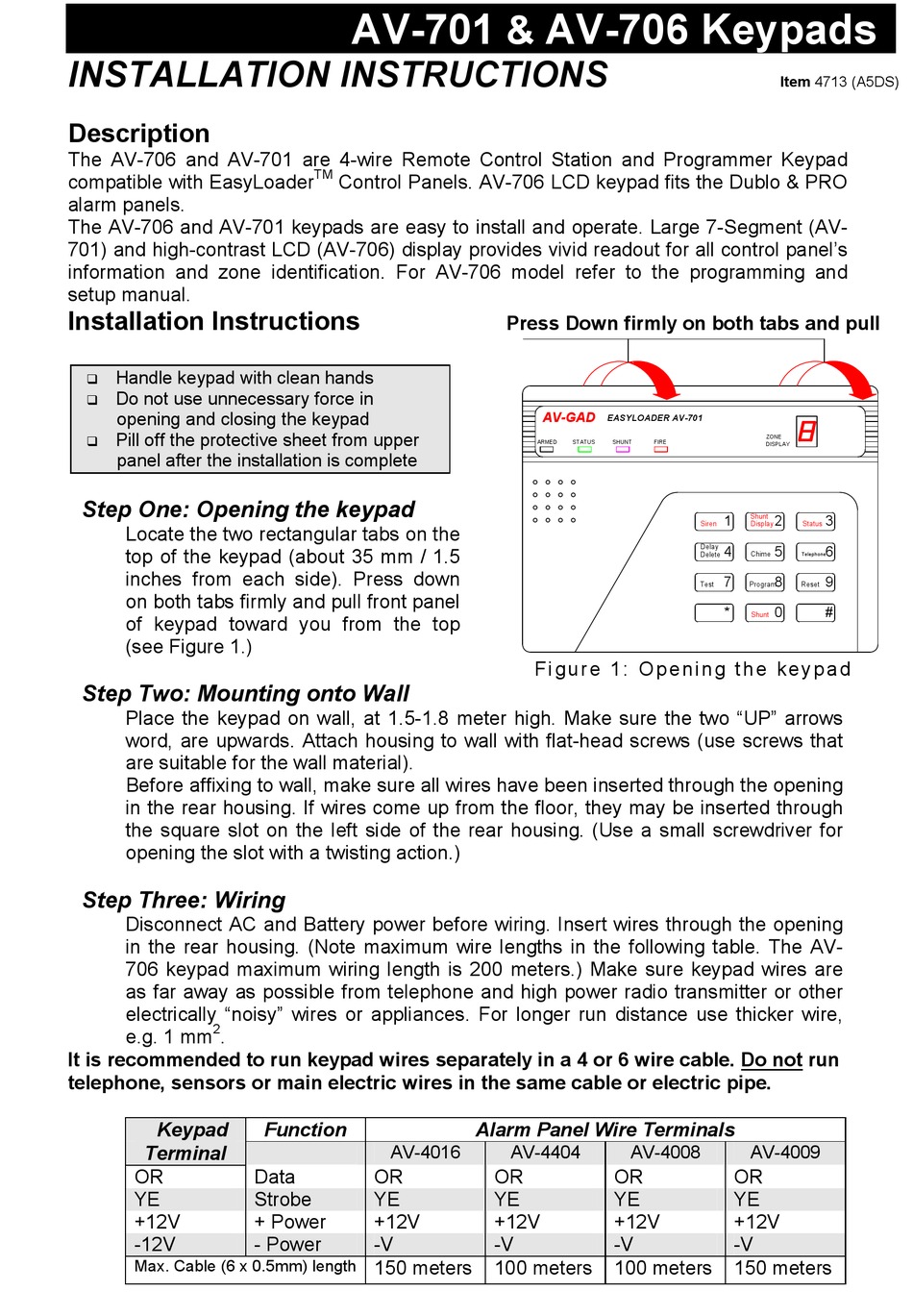

INSTALLATION INSTRUCTIONS
Description

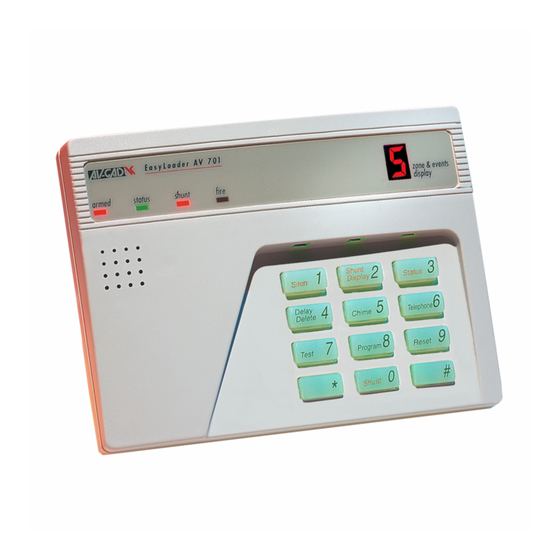

The AV-706 and AV-701 are 4-wire Remote Control Station and Programmer Keypad
compatible with EasyLoader
alarm panels.
The AV-706 and AV-701 keypads are easy to install and operate. Large 7-Segment (AV-
701) and high-contrast LCD (AV-706) display provides vivid readout for all control panel's
information and zone identification. For AV-706 model refer to the programming and
setup manual.
Installation Instructions
Handle keypad with clean hands
Do not use unnecessary force in
opening and closing the keypad
Pill off the protective sheet from upper
panel after the installation is complete
Step One: Opening the keypad
Locate the two rectangular tabs on the
top of the keypad (about 35 mm / 1.5
inches from each side). Press down
on both tabs firmly and pull front panel
of keypad toward you from the top
(see Figure 1.)
Step Two: Mounting onto Wall
Place the keypad on wall, at 1.5-1.8 meter high. Make sure the two "UP" arrows
word, are upwards. Attach housing to wall with flat-head screws (use screws that
are suitable for the wall material).
Before affixing to wall, make sure all wires have been inserted through the opening
in the rear housing. If wires come up from the floor, they may be inserted through
the square slot on the left side of the rear housing. (Use a small screwdriver for
opening the slot with a twisting action.)
Step Three: Wiring
Disconnect AC and Battery power before wiring. Insert wires through the opening
in the rear housing. (Note maximum wire lengths in the following table. The AV-
706 keypad maximum wiring length is 200 meters.) Make sure keypad wires are
as far away as possible from telephone and high power radio transmitter or other
electrically "noisy" wires or appliances. For longer run distance use thicker wire,
2
e.g. 1 mm
.
It is recommended to run keypad wires separately in a 4 or 6 wire cable. Do not run
telephone, sensors or main electric wires in the same cable or electric pipe.
Keypad
Terminal
OR
YE
+12V
-12V
Max. Cable (6 x 0.5mm) length
AV-701
TM
Control Panels. AV-706 LCD keypad fits the Dublo & PRO
Function
AV-4016
Data
OR
Strobe
YE
+ Power
+12V
- Power
-V
150 meters
AV-706 Keypads
&
Press Down firmly on both tabs and pull
AV-GAD
EASYLOADER AV-701
ARMED
STATUS
SHUNT
F i g u r e 1 : O p e n i n g t h e k e y p a d
Alarm Panel Wire Terminals
AV-4404
AV-4008
OR
OR
YE
YE
+12V
+12V
-V
-V
100 meters
100 meters
Item 4713 (A5DS)
ZONE
FIRE
DISPLAY
Shunt
1
2
3
Siren
Display
Status
Delay
4
5
6
Chime
Delete
Telephone
7
8
9
Test
Program
Reset
*
0
#
Shunt
AV-4009
OR
YE
+12V
-V
150 meters
