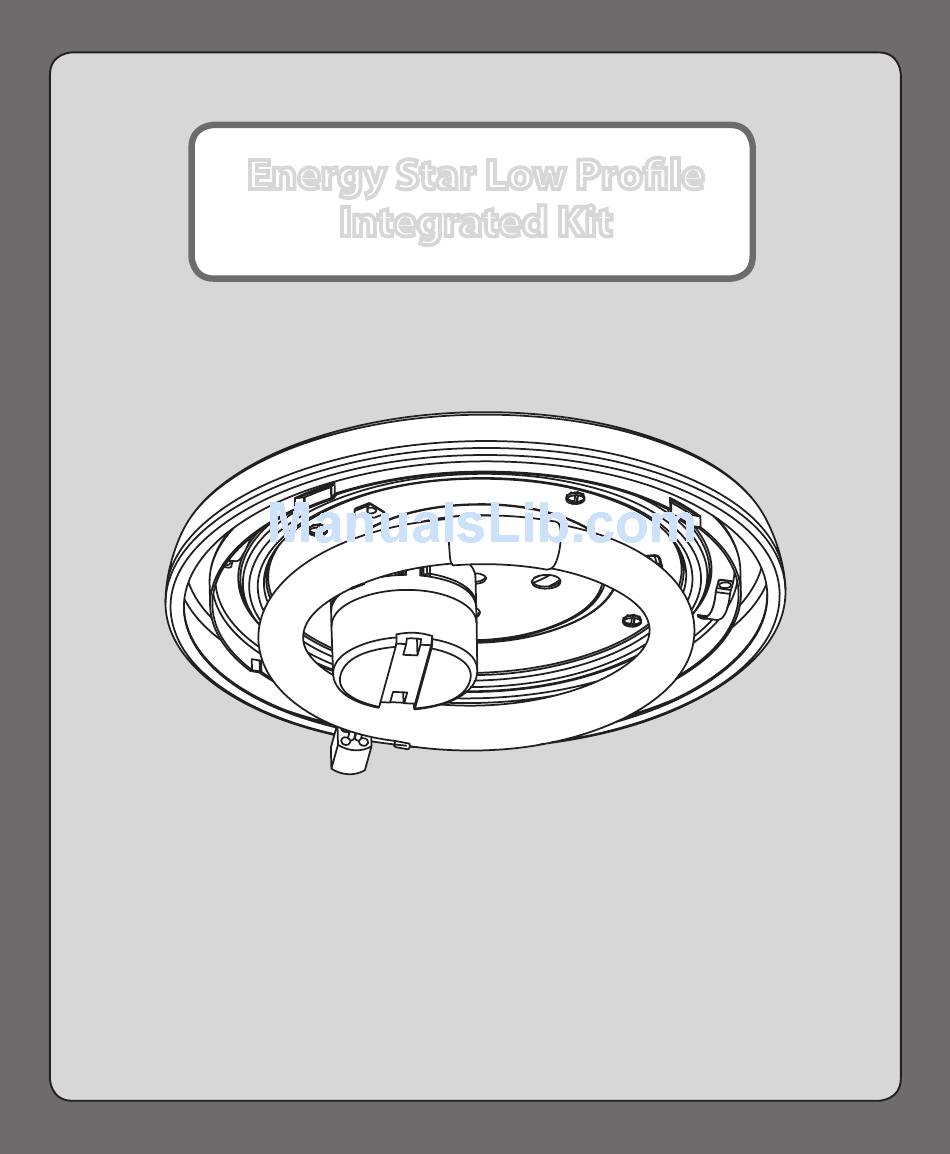

Energy Star Low Profile
Energy Star Low Profile
Compatible with:
2xxxx Types A - Z
51000-58999 fan series
59500-59999 fan series
Select Casablanca Fans
MA005-01 • 07/24/13
Integrated Kit
Integrated Kit
Installation Manual
Models 99065, 99066, 99067, 99068, 99069
Advertisement
Related Manuals for Hunter 99065
Summary of Contents for Hunter 99065
- Page 1 Energy Star Low Profile Energy Star Low Profile Integrated Kit Integrated Kit Installation Manual Models 99065, 99066, 99067, 99068, 99069 Compatible with: 2xxxx Types A - Z 51000-58999 fan series 59500-59999 fan series Select Casablanca Fans MA005-01 • 07/24/13...
-
Page 2: Before You Begin
1.888.830.1326 BEFORE YOU BEGIN Read entire installation instructions carefully before beginning installation and save these instructions. Switch Housing Your light kit is compatible with most ceiling fans. The light kit will attach to the fan’s switch housing. Begin on page 3 where you will choose the type of switch housing that most closely resembles the one on your fan. - Page 3 1.888.830.1326 WHICH ASSEMBLY METHOD WILL I USE? Choose one of the four images below that most closely resembles the switch housing on your fan; then follow the instructions under the image. Switch Switch Switch Housing Housing Housing Screw Screw If your fan’s switch housing cap If your fan’s switch housing cap resembles resembles this one, remove the cap this one, remove the whole switch...
- Page 4 1.888.830.1326 TYPE-A ASSEMBLY INSTRUCTIONS Switch Wire Mounting Connector Housing Screw Partially install the two mounting screws If your fan does not have pin connectors into the bottom of the lower switch housing. on the wires coming from the switch housing, install the wiring harness provided.
- Page 5 1.888.830.1326 TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED) Bulb Clamp Indentation Installing the bulb - connect the four- Installing the globe (sold separately)- pin connector to the four pins on the Position the indentations in the outer rim of bulb. Raise the bulb up and secure it to the globe so that they line up with the tabs the light kit using the bulb clamps.
- Page 6 1.888.830.1326 TYPE-B ASSEMBLY INSTRUCTIONS Switch Wire Housing Connector Feed the wires through the center hole in If your fan does not have pin connectors the switch housing, the washer, and the on the wires coming from the switch nut. Then install the switch housing by housing, install the wiring harness twisting clockwise onto the threaded rod.
- Page 7 1.888.830.1326 TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED) Bulb Clamp Indentation Installing the bulb - connect the four- Installing the globe (sold separately)- Position pin connector to the four pins on the the indentations in the outer rim of the globe bulb. Raise the bulb up and secure it to so that they line up with the tabs on the inside the light kit using the bulb clamps.
- Page 8 1.888.830.1326 TYPE-C ASSEMBLY INSTRUCTIONS Switch Wire Housing Connector If your fan does not have pin connectors Feed the wires through the center hole in on the wires coming from the switch the switch housing. Then using the single housing, install the wiring harness pin connectors, connect the black or blue provided.
- Page 9 1.888.830.1326 TYPE-C ASSEMBLY INSTRUCTIONS (CONTINUED) Bulb Clamp Indentation Installing the bulb - connect the four- Installing the globe (sold separately)- Position pin connector to the four pins on the the indentations in the outer rim of the globe bulb. Raise the bulb up and secure it to so that they line up with the tabs on the inside the light kit using the bulb clamps.
- Page 10 Hunter/Casablanca Energy Efficient Light Kit: If your Hunter/Casablanca Energy Efficient Light Kit fails at any time within two years after the date of sale due to a defect in material or workmanship, labor to repair the defect will be provided free of charge at our nearest service center or our service department in Memphis, TN.
