Summary of Contents for Universal Audio DCS

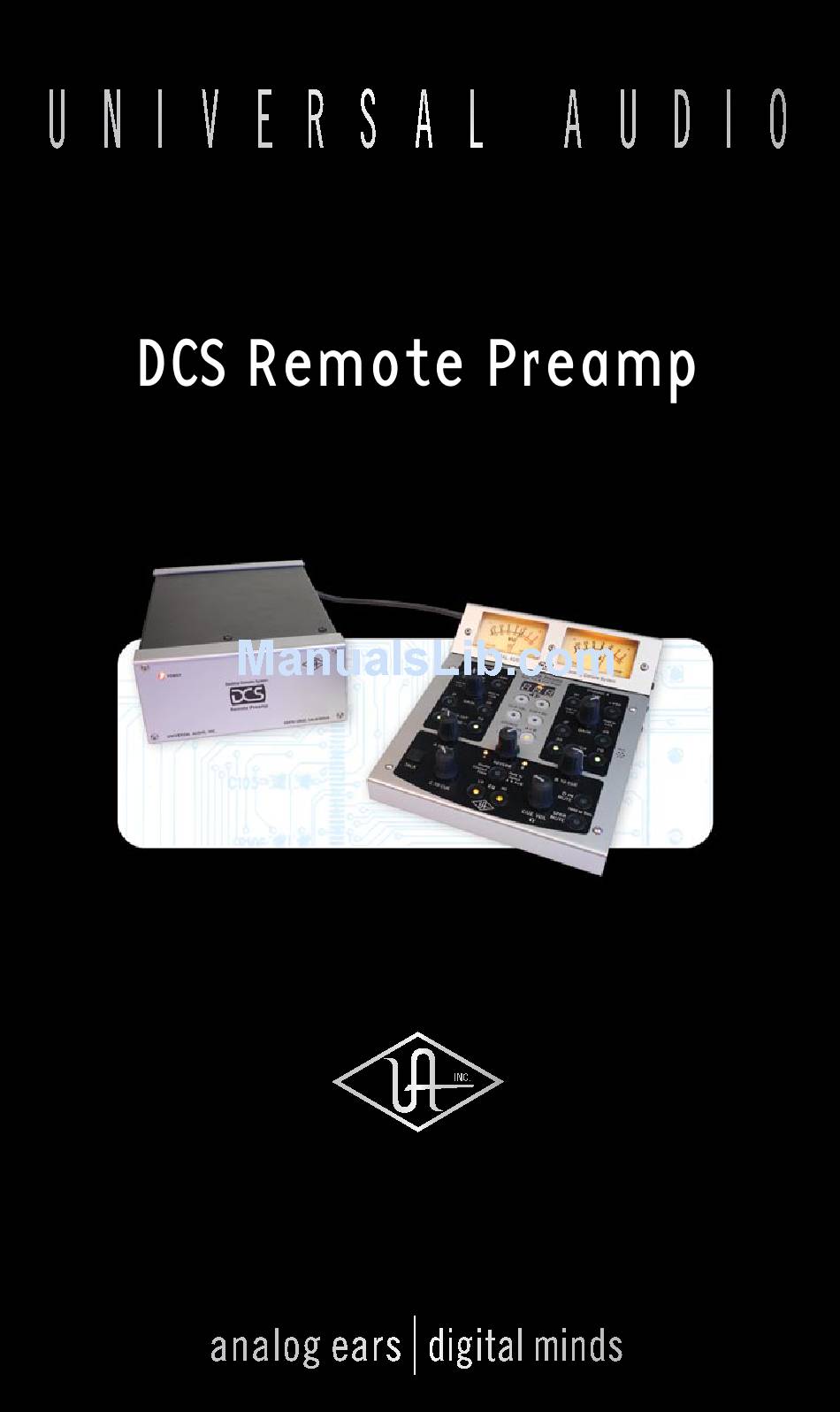

- Page 1 Quick Start Guide & DVD www.uaudio.com...

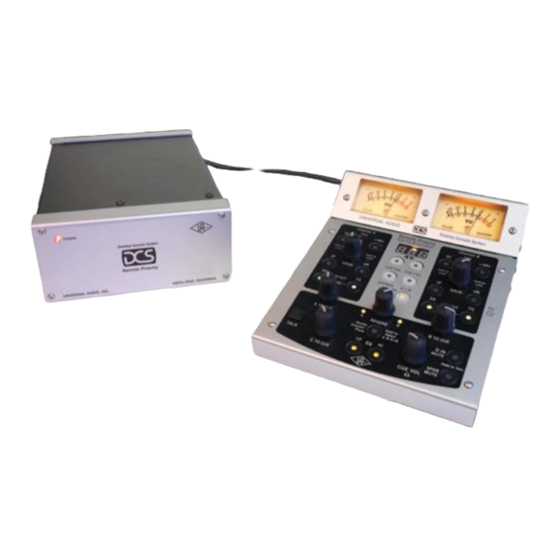

- Page 2 Remote Preamp offers fully remote-controllable, highly detailed, uncolored recording based on its advanced transimpedance design. The two channels of the DCS Remote Preamp can be used dual mono or can be joined for stepped, matched-stereo gain structuring. Plus a Mid/Side encoder is included, allowing for direct recording of the MS-Stereo result.
- Page 3 Step-By-Step Getting Started Setting up the DCS Remote Preamp Plug the Base unit into AC power Plug the Remote into the Base unit with the DCS-Link cable ™ Plug a microphone to Input A or B, and enable phantom power if required If you're using the DI input, click the DI switch.
- Page 4 DI Input A Mic Input B Remote Pre Output DAW Output Remote Pre Output (to DAW) (to Remote Pre) (to DAW) TRACKING ROOM TRACKING ROOM CONTROL ROOM CONTROL ROOM Engineer Headphones CAT5 cable up to 300 feet DCS Remote USB/Firewire...
- Page 5 SOLO SUCK UNDO PUNCH LOOP SHIFT PREV NEXT Headphones Wireless DAW Controller DCS Remote CAT5 cable up to 300 feet TRACKING ROOM CONTROL ROOM Mic Input A Mic Input B Remote Pre Output (to DAW) DAW Output (to Remote Pre)
- Page 6 DCS Remote Preamp: Remote For greater detail on each topic, reference the page number (in parenthesis) in the manual. Gain – Adjusts gain in 1dB -/+ Keys – Selects Reverb REVERB KNOB – Adjusts steps (page 3) type, EQ gain, and other...
- Page 7 DCS Remote Preamp: Base IEC Power WARNING – MIC INPUTS – sends CUE OUT – sends Unit operates under fixed microphone signal to the headphone mix out to voltage and will be Remote Preamp (Page 2) headphones (Page 2) damaged by incorrect input voltage! (page 2) C IN –...
-
Page 8: Package Contents
DCS Preamp Remote • DCS Link™ CAT-5 cable • IEC Power Cable • DCS Remote Preamp Manual • DCS Remote Preamp Quickstart guide with DVD • DCS Remote Preamp Registration Card • Product Support UNITED STATES: Universal Audio, Inc. 877-MY-UAUDIO www.uaudio.com...
