Summary of Contents for Everdure CBEE61

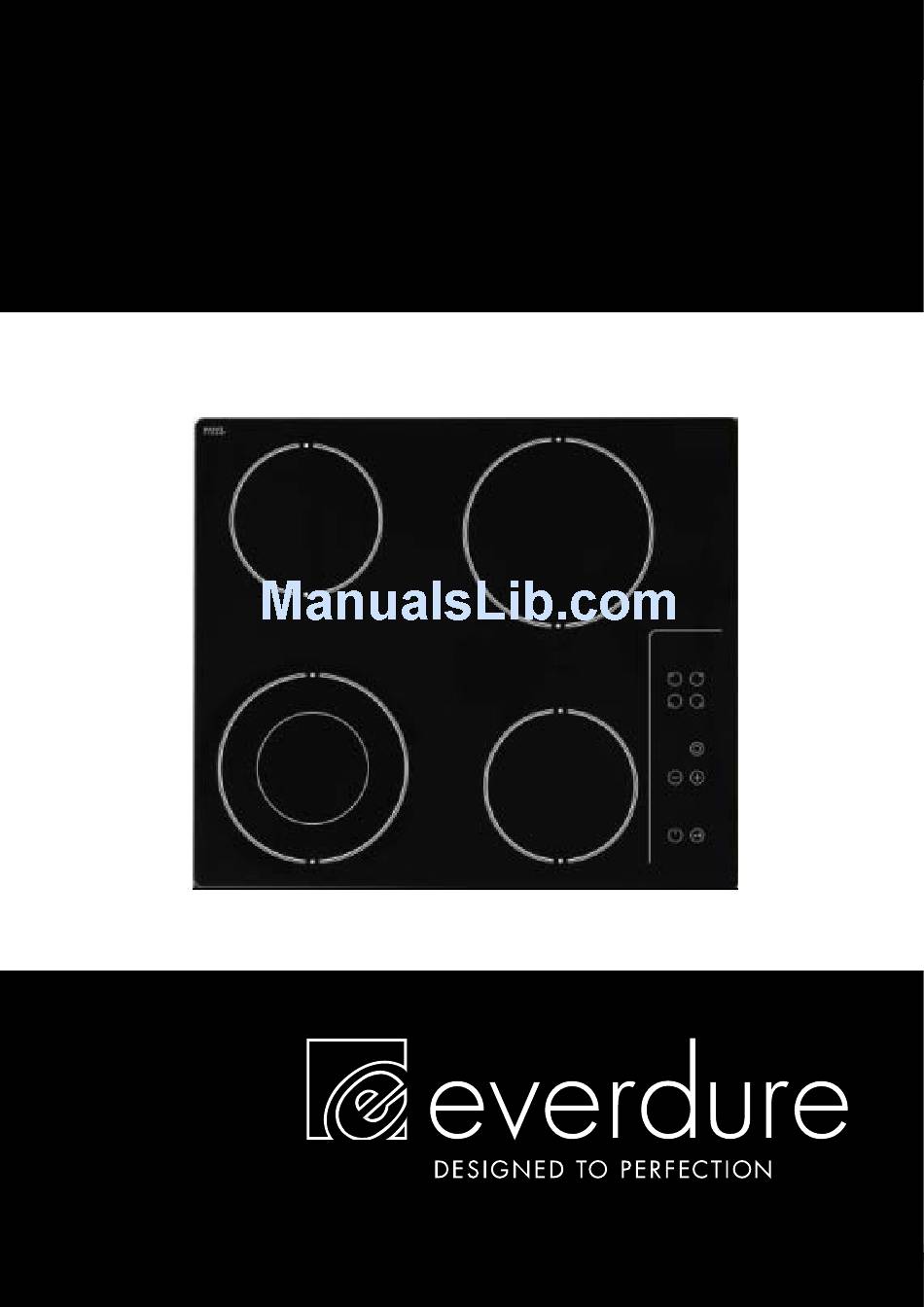

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE VITROCERAMIC ELECTRIC COOKTOPS Models Included: OBES61 CBEE61 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR EVERDURE BUILT-IN ELECTRIC OVEN RANGE OBES61, OBES62 & OBES63 BUILT-IN ELECTRIC OVENS DESIGNED TO PERFECTION...
-
Page 2: Table Of Contents
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR EVERDURE BUILT-IN ELECTRIC COOKTOP RANGE CBEE61 VITROCERAMIC ELECTRIC COOKTOP CONTENTS SECTION PAGE NO. Important Safety Instructions ………….. Appliance Details ………………………… Electrical Connections ………………..…. Installation ………………………………… Operating Instructions …………………… 8-11 Cleaning ………………………………….. It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
APPLIANCE DETAILS ELECTRICAL DETAILS: COOKTOPS: Rated Voltage: 220-240Vac 50Hz CBEE61 - 5900W COOKTOP – Directly wired to mains supply This information can be found on the rating plate (identification plate) affixed to the underside of the appliance. SIZES: Relevant Sizes:... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage, for which the manufacturer accepts no responsibility. ELECTRICAL INSTALLATION Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the oven’s power rating (also indicated on the identification plate). -
Page 6: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in, during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical cooktop will meet your needs in all respects. - Page 7 INSTALLATION OF BUILT IN COOKTOP In order to prevent leakage of any liquids on the counter, a special sealing tape is supplied together with your oven. Apply this seal around the bottom edge of the cooktop (see below). The brackets are installed to hold the cooktop in place.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS The basic layout of the cooktop is shown in the diagram below. The cooktop appliance is operated by touching buttons, with the functions confirmed by LED displays and acoustic signals. Turning On and Turning Off the Cooktop Appliance Stand-By-Mode, Operating-Mode On/Off... - Page 9 Selecting A Hotplate Active/Deactivate Hotplate Button Decimal Point If a single hotplate is chosen with the corresponding , the the chosen hotplate flashes. For the selected hotplate, you can set or adjust the heat level between 1-9 by Heat Setting Buttons touching the .
- Page 10 Key Lock The key lock functionality is for blocking and setting the appliance into a locked mode during operation. Touch modifications (e.g. increase heat settings) and others will not be possible. It is only possible to switch the appliance off. Key Lock The lock function is activated if is pressed for at least 2 seconds.
-
Page 11: Cleaning
CLEANING NOTE: Cleaning and maintenance operations must only be carried out when the oven is cool (all residual heat indicators are off). The appliance should be disconnected from the power outlet or turned off at your isolation switch before commencing any cleaning process. CLEANING THE COOKTOP Cookware with rough bases should not be used as they can scratch the glass ceramic surface. - Page 12 A division of Shriro Australia Pty Ltd 23-27 Chaplin Drive Lane Cove NSW 2066 1300 766 066 www.everdurekitchen.com.au IM Ref: CBEE61 12/2009/03FC F O R I N D O O R U S E O N L Y DESIGNED TO PERFECTION...
