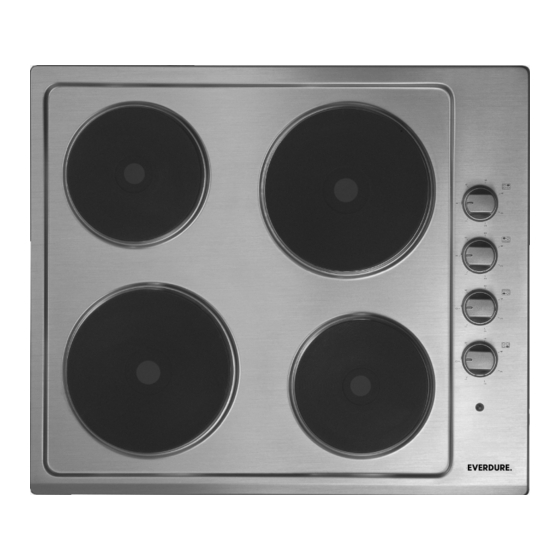

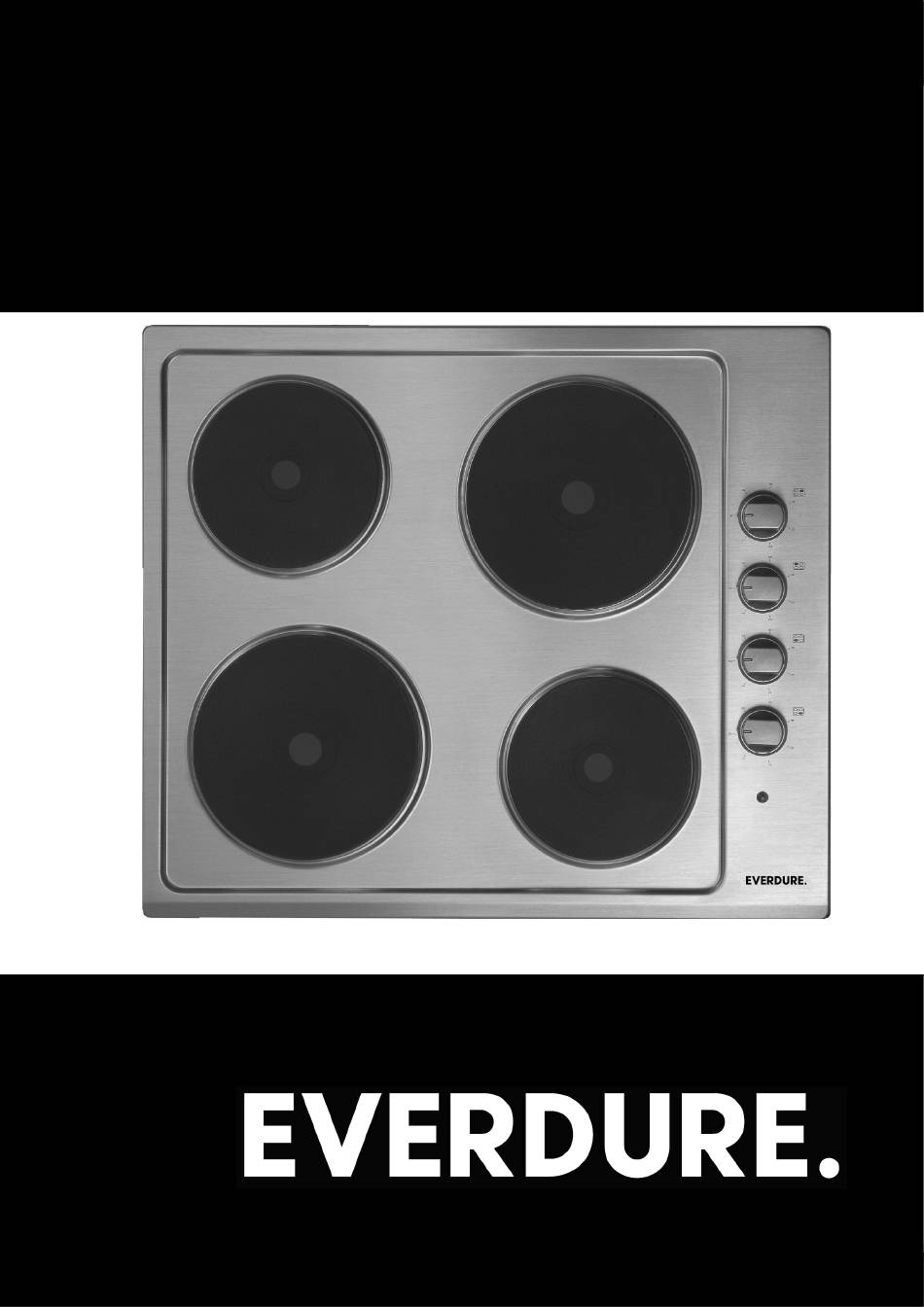

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE 4 ELEMENT ELECTRIC COOKTOPS Models Included: CBES611 KIMBERL EASY DECISION...
-
Page 2: Table Of Contents
CBES611 ELECTRIC COOKTOPS CONGRATULATIONS Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic cooking appliances. We are confident that you will now be able to meet your cooking needs. Before you use the cooktop we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
APPLIANCE DETAILS ELECTRICAL DETAILS: Rated Voltage: 220-240 Vac 50 Hz Supply Connection: 30 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 7.00 kW Mains Supply Lead: 3 core x 2.5 mm² (not supplied) This information can be found on the rating plate (data label) affixed to the underside of the appliance PRODUCT SPECIFICATIONS: 2 x 2.00 kW thermostatic plates (diameter 180 mm) 2 x 1.50 kW thermostatic plates (diameter 145 mm) -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by an authorized person, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage which the manufacturer accepts no responsibility. INSTALLATION This cooktop must be connected to a 220-240V 50Hz power supply. It is earthed via the cord. Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the hob’s power rating (also indicated... -
Page 6: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in, during periods of use – please check your furniture is acceptable for use with a cooktop. Please see the above drawing for minimum clearances. - Page 7 INSTALLING THE APPLIANCE CBES611 Cut a hole in the worktop that corresponds with the drawings shown above. IMPORTANT: You must have a gap of 25mm – 75mm between the underneath of the appliance and any surface that is below it.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS CONTROL KNOBS: All operations are performed by means of the 4 control knobs that can be found on the right hand side of the cooktop. The control knobs can be turned either clockwise or anti-clockwise to select a heating level. -
Page 9: Cleaning
CLEANING NOTE: Cleaning and maintenance operations must only be carried out when the cooktop is cool. The appliance should be turned off at the isolation switch before commencing any cleaning process. CLEANING THE COOKTOP Any residues that are left on the cooktop surface from cleaning agents may damage it. You should remove any residues with water and a little washing up. -
Page 10: Troubleshooting
TROUBLESHOOTING 1. The cooking zones are not functioning or will not switch on. Check that the mains electrical supply to the appliance is correct and working. Check the mains fuse. 2. A humming sound is heard when a cooking zone is selected. This is normal;... -
Page 11: Data Label & Electrical Diagram
DATA LABEL & ELECTRICAL DIAGRAM EASY DECISION... - Page 12 A division of Shriro Australia Pty Ltd 104 Vanessa Street, Kingsgrove NSW 2208 AUSTRALIA: 1300 355 541 www.everdure.com NEW ZEALAND: (09) 415 6000 www.everdure.co.nz IM Ref: CBES611 24/2017/01FC FO R INDO OR USE ONLY EASY DECISION...
