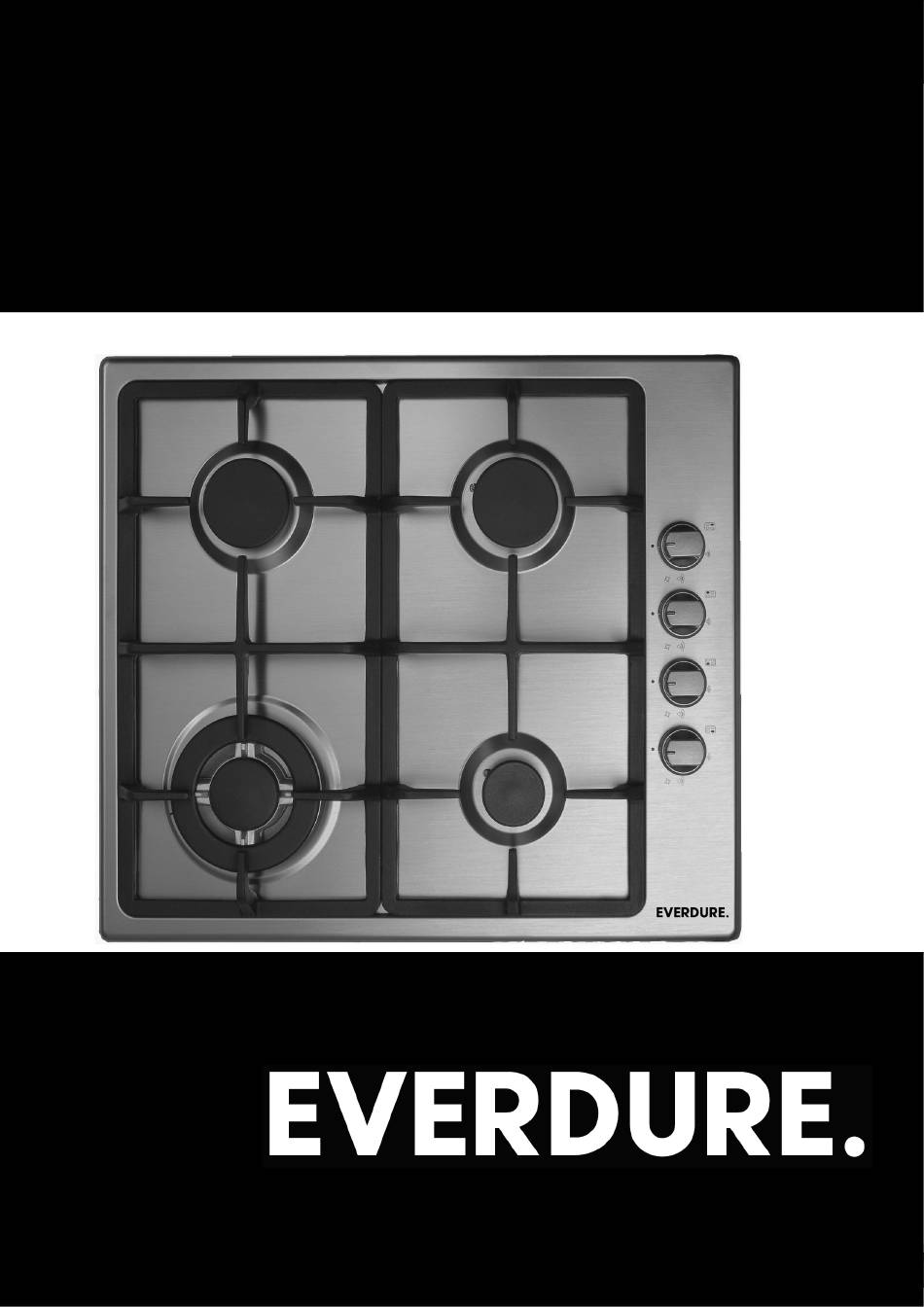

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE 4 BURNER GAS COOKTOPS Models Included: CBGS621 EASY DECISION...
- Page 2 CBGS621 GAS COOKTOPS CONGRATULATIONS Welcome to the Everdure Kitchen Community and thank you for choosing one of our many fantastic cooking appliances. We are confident that you will now be able to meet your cooking needs. Before you use the cooktop we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Check for any damage before installation. Read the safety precautions of this booklet carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage.
- Page 4 APPLIANCE DETAILS Gas Type: ULPG Burner Pressure: 2.75 kPa 1.00 kPa Injector Injector MJ/hr Rating MJ/hr Rating Diameter Diameter Injector Diameter: Auxiliary Burner Ø0.55 mm 4.0 MJ/ hr Ø0.90 mm 4.0 MJ/ hr Injector Diameter: Semi-Rapid Burners Ø0.70 mm 6.5 MJ/ hr Ø1.10 mm 6.2 MJ/ hr Injector Diameter: Wok Burner...
- Page 5 GAS CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Check Gas Type and specifications plate placed on the bottom face of the unit. All gas fitting work, service and repairs can only be performed by an authorized person in accordance with the current edition of AS5601 and local gas regulations.
- Page 6 ORIENTATION OF THE ELBOW The appliance is supplied with a gas connection oriented towards the centre of the cooking hob. The connection to the gas supply must be effected only from this side or in vertical position by turning the elbow downwards. To turn the elbow, follow these operations: Loosen the nut Turn the elbow...
- Page 7 If a leak cannot be resolved, do not proceed. DO NOT USE NAKED FLAME FOR LOCATING GAS LEAKS. IF A LEAK PERSISTS CALL AN AUTHORISED GAS FITTER. NOTE: If an appliance cannot be adjusted to perform correctly, contact Everdure service department. ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by an authorized person, and carried out according to instructions provided by the manufacturer.
- Page 8 After having installed the appliance, the power switch or power plug must always be in an accessible position. Electrical connection diagram N.B For connections to the mains power supply, never use adapters, reductions or multiple power points as these may overheat and catch fire. In the event that installation should require modifications to the mains supply wiring system or if the power plug is not suitable for the type of power point available, it is required that a qualified technician be called to carry out substitution.
- Page 9 INSTALLATION IN KITCHEN CABINET WITH DOOR The fixture has to be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.
- Page 10 CLEANING & STORAGE CLEANING Please follow the maintenance & cleaning guidelines below to keep your Everdure cooktop in good working order. The cooktop should be cleaned regularly with all stains and boil overs being cleaned up. Do not allow stains and boil overs to become burnt onto the appliance.
- Page 11 A stainless steel cleaner can be applied which gives the cooktop an extra shine. Only apply after cleaning with soapy water. Avoid leaving acidic or alkaline substances on the cooktop. Burners and enamelled components are only to be washed with soapy water & sponges. Do not use abrasive cleaners on these components.
- Page 12 A division of Shriro Australia Pty Ltd 104 Vanessa Street, Kingsgrove NSW 2208 AUSTRALIA: 1300 355 541 www.everdure.com NEW ZEALAND: (09) 415 6000 www.everdure.co.nz IM Ref: CBGS621 12/2018/04FC FO R INDO OR USE ONLY EASY DECISION...
