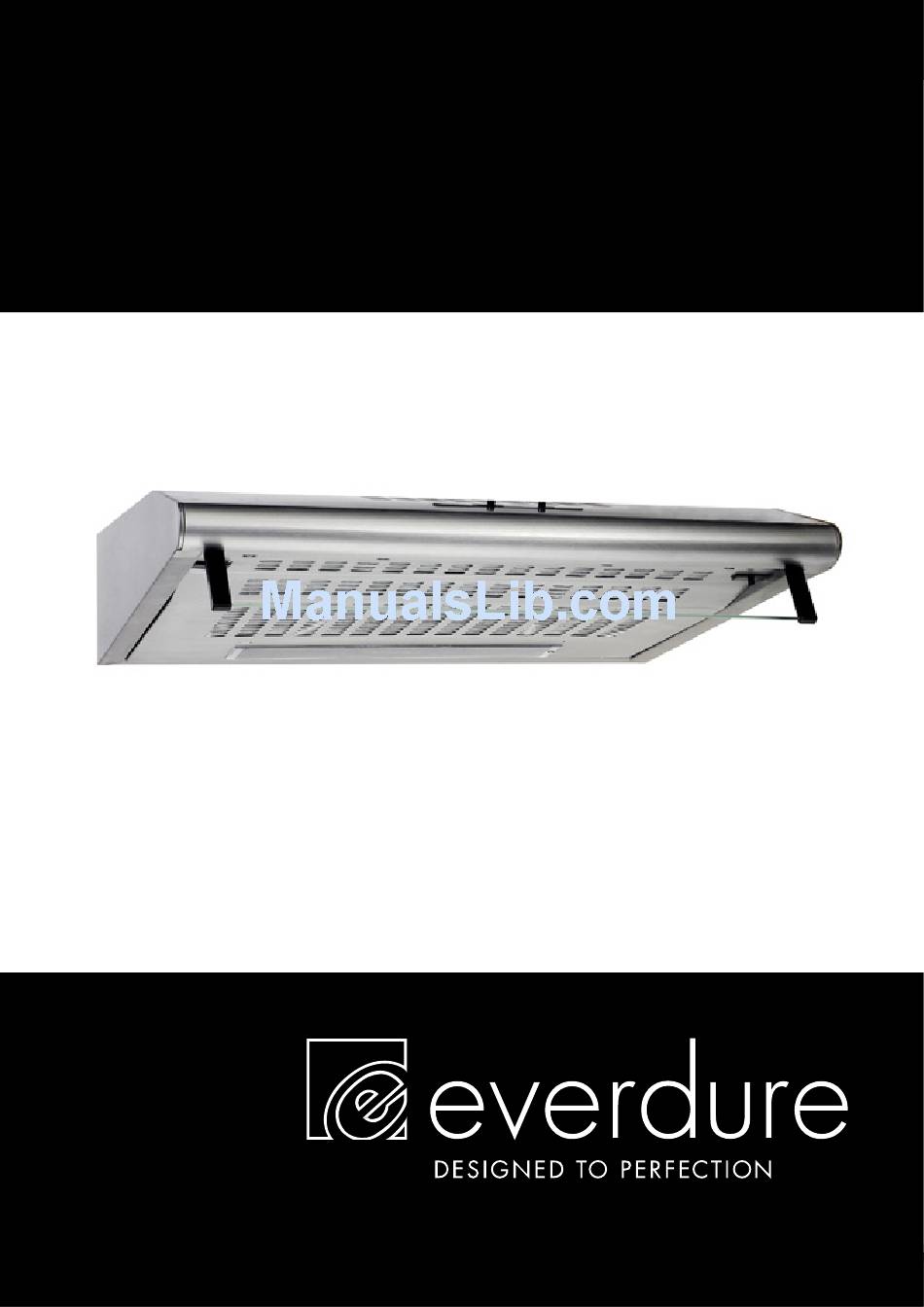

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE RANGE HOOD Models Included: RBEE61 KIMBERLEY INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS DESIGNED TO PERFECTION...
-
Page 2: Table Of Contents
FOR EVERDURE RANGE HOOD RBEE61 CONTENTS SECTION PAGE NO. Important Safety Instructions……………… Appliance Details ………………………… General Information …………………….. What Is Supplied ………….……………… What May Be Needed For Installation … Installation Instructions …………………… Operating Instructions …………………… Cleaning …………………………………… It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. In certain circumstances electrical appliances may be a danger hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: General Information
APPLIANCE DETAILS Voltage: 220-240V Frequency: 50Hz Lamp Max: 1x40W ES14 Rated Input Power: 140W GENERAL INFORMATION Before installing and operating the range hood, carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed to exhaust cooking fumes externally, or it may be used as a re-circulating range hood (Filters required for re-circulating type). -
Page 5: Installation Instructions
Check the area where the range hood is to be fitted, to ensure that it is structurally sound. Please see diagram below for switch location for re-circulating or for venting outdoors. The Everdure RBEE61 range hood is intended to be fitted into kitchen cabinetry. It can also be installed directly onto a wall if required. - Page 6 INSTALLATION OF THE EVERDURE RBEE61 RANGE HOOD TO A CABINET The diagram below shows the distance required between the holes in the top of the range hood. Due to manufacturing procedures, it is recommended that the dimension be checked on the range hood before installing.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Note: Before the unit can be operated, it must either be ducted or, if the model is installed as a re-circulating range hood, it must be fitted with charcoal filters. Connect the plug into the power. Below is a diagram of the light and fan functions, with an explanation of how the light and the fan functions operate. - Page 8 A division of Shriro Australia Pty Ltd 23-27 Chaplin Drive Lane Cove NSW 2066 1300 766 066 www.everdurekitchen.com.au IM Ref: RBEE61 27/2009/02FC F O R I N D O O R U S E O N L Y DESIGNED TO PERFECTION...
