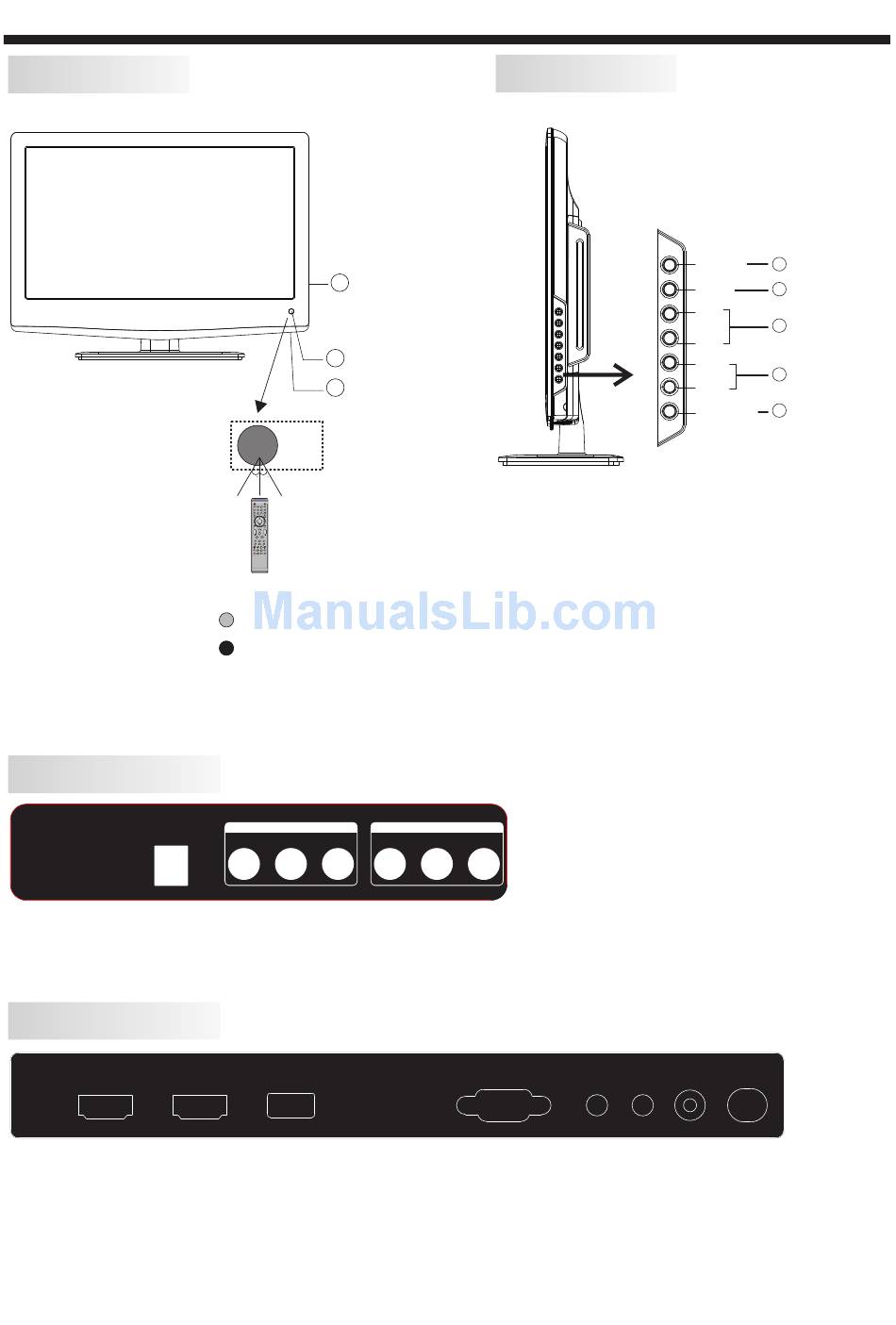

Front panel
1: Remote control sensor.
2: Indicator LED: BLUE
RED
3:
Side panel keys
REAR Connections
POWER
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT
Note: AV and YPbPr share one audio channel.
SIDE Connections
HDMI1
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF.
Note: 1. When HDMI1 has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
2. When HDMI2 has an input signal coming from a DVI source then the audio input signal must be
connected to the YPbPr/AV audio input.
3
1
2
30
30
POWER ON.
STANDBY.
COMPOSITE
VIDEO
L
R
HDMI2
USB
Side panel
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
COMPONENT
Y
Pb
Pr
VGA
-6-
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
HEADPHONE
PC AUDIO COAXIAL

INSTALLATION

1
2
3
4
5
RF
