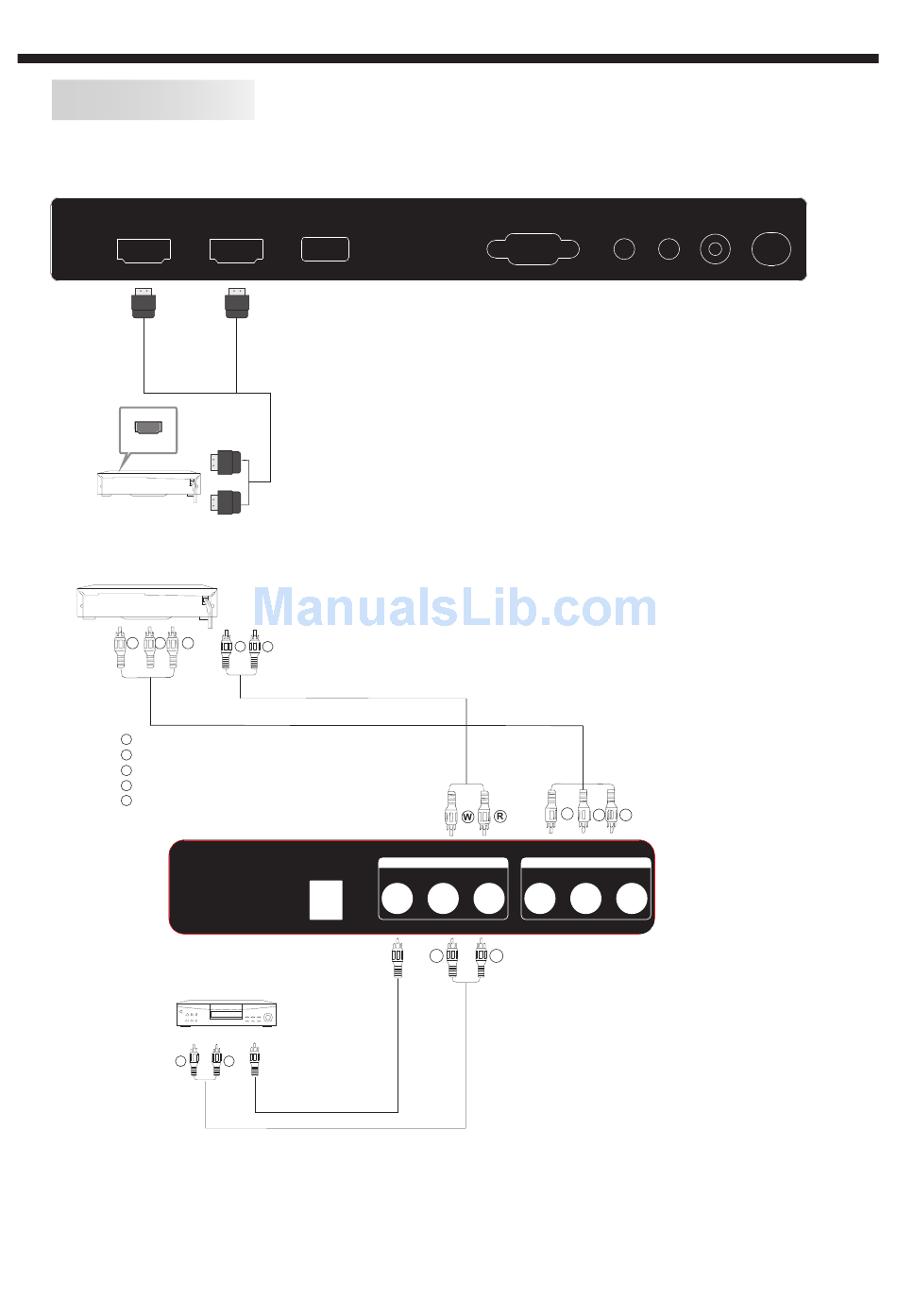

You can use the input terminals on TV set rear as follows.
HDMI1
HDMI2
HDMI
VIDEO EQUIPMENT with YPbPr
G
B
R
Y
Yellow (video)
W
White(audio L)
R
Red(audio R or Pr)
B
Blue(Pb)
G
Green(Y)
VIDEO EQUIPMENT
W
TO AUDIO OUTPUTS
The television's inputs can be connected to the following types of equipment: VCR, multi disc player,
DVD, camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.
USB
W
R
POWER
VIDEO
R
TO VIDEO
OUTPUTS
VGA
HEADPHONE
G
COMPOSITE
COMPONENT
L
R
Y
Pb
W
R
-9-

INSTALLATION

PC AUDIO COAXIAL
RF
B
R
Pr
