Pioneer DCS-505 Setting Up

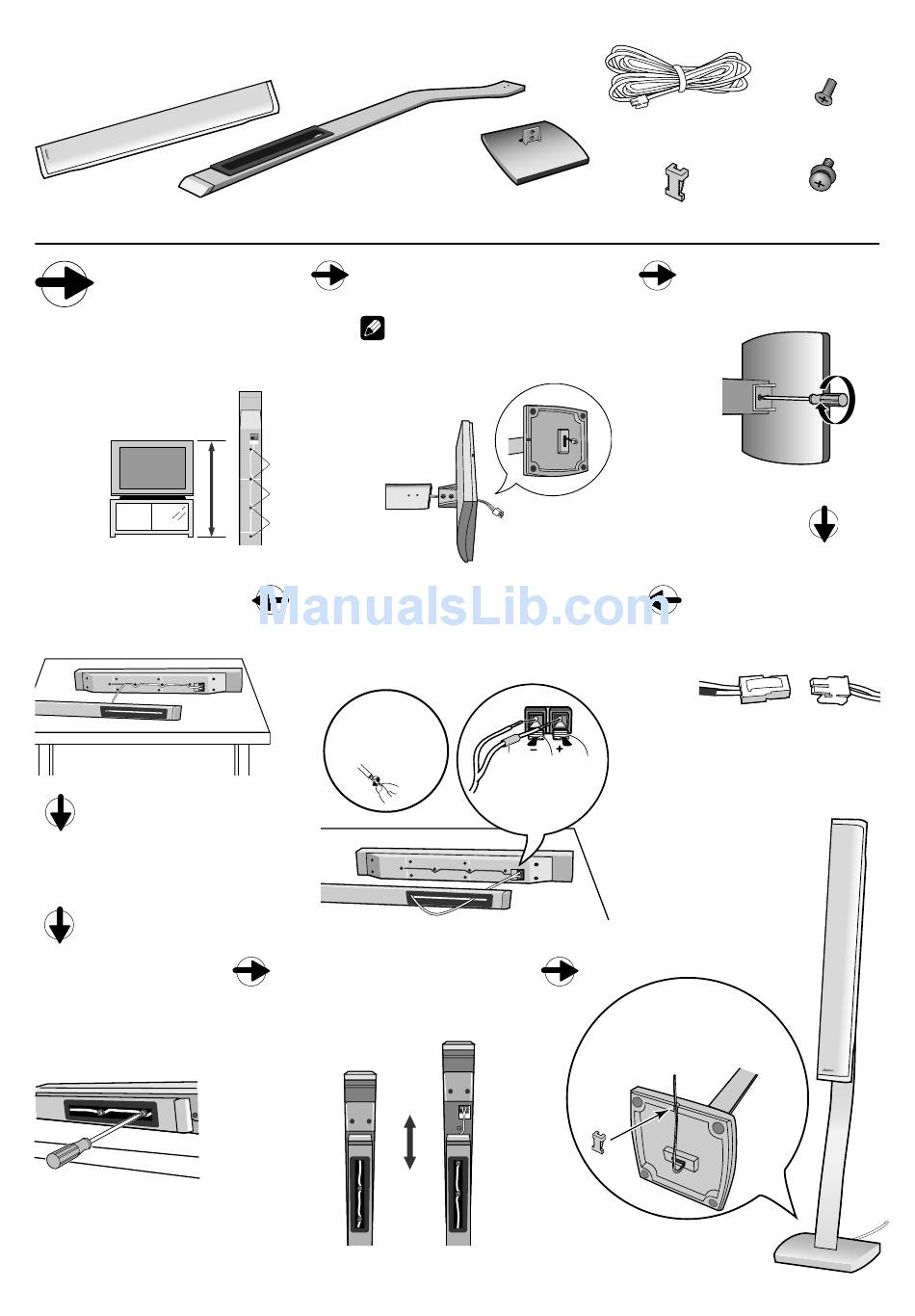

Setting up your front speakers
Make sure you have all the accessories.
Speaker
Use a ruler to measure the
height of your TV, then make
a note of the two screwholes
you will need to use (see
below) based on this height
(the screws will be fixed later).
Secure the wire by wedging it
into the groove on the back of
the speaker as shown below.
Use the captive washer
screws to fix the speaker to
the stem of the speaker
stand (using the holes you
selected in the first step).
Stem
Thread the cord extending from the
bottom of the stem of the speaker stand
through the base as shown.
From this step onwards, assemble
with the speaker, stem and base resting
horiziontally on a work surface.
TV height:
95–105cm
105 –115cm
115 –125cm
Attach the speaker cord extending from the top
of the stem to the speaker as shown below. Make
sure the color-coded sleeves of the speaker wires
match the speaker terminals.
Twist and pull
off the protective
shields on each
wire.
Adjust the height of the speaker
stand according to that of your TV.
Tighten the screws to securely fix
the speaker in place.
Speaker cord
Base
Cap
Color-
Black Red
coded
sleeves
Run the speaker wire
through the guide on
the rear of the base
then push on the cap.
