Summary of Contents for Sennheiser EZX 80

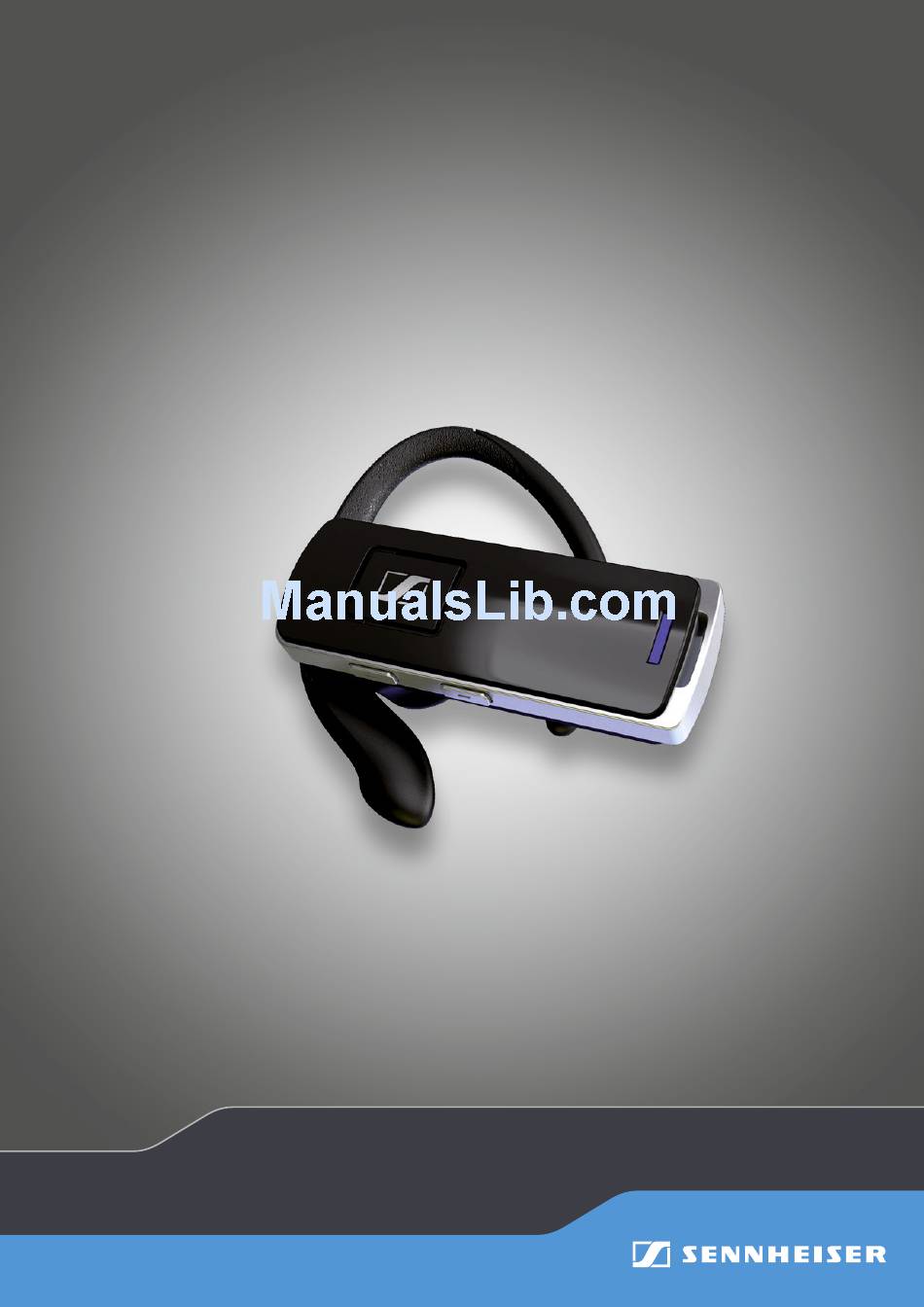

- Page 1 Bluetooth headset for phone calls EZX 80 Instruction manual Bedienungsanleitung...
-
Page 2: Table Of Contents
Overview of pictograms ................7 Overview of buttons ..................8 Overview of the LED indications ..............9 Putting the EZX 80 into operation ............. 10 Charging the headset ...................10 Connecting the headset to a Bluetooth device ........11 Using the EZX 80 ................... 13 Individually adjusting the headset and wearing it ........13... -
Page 3: Important Safety Information
Intended use/Liability The EZX 80 is an accessory for mobile phones or any Bluetooth compliant device with a “hands free profile” (HFP), a “headset profile” (HSP) or the “advanced audio distribution profile” (A2DP). It is intended for wireless communication via Bluetooth connection. - Page 4 Only use rechargeable bat- When not using recharge- teries recommended by able batteries for extended Sennheiser and the appro- periods of time, charge priate chargers. them regularly (about every 3 months). Only charge rechargeable Do not heat above 70°C/...
-
Page 5: The Ezx 80 Bluetooth Headset
The EZX 80 Bluetooth headset The EZX 80 Bluetooth headset is the wireless solution for phone calls with superb sound quality. The EZX 80’s long battery life of up to 8 hours makes it especially suitable for professional applications. The Sennheiser digital noise and echo cancellation blocks out annoying interference –... -
Page 6: Delivery Includes
USB charging cable Quick Quick Guide Guide Safety Safety Guide Guide A list of accessories can be found on the EZX 80 product page at www.senncom.com. For information on suppliers, contact your local Sennheiser partner: www.senncom.com > “Sales Partner“. EZX 80... -
Page 7: Product Overview
Product overview Product overview Socket for USB charging cable Volume – button Multi-function button Speaker On/off switch Volume + button Earhook Microphone EZX 80... -
Page 8: Overview Of Pictograms
Pictogram Meaning The LED flashes rapidly. The LED flashes once every 3 seconds. The LED flashes 3 times per second. The pictogram “i” Notes marked with the pictogram “i” provide important information on the use of the headset. EZX 80... -
Page 9: Overview Of Buttons
Reduces the volume Vol + Increases the volume Mutes/unmutes the headset’s Vol – microphone Vol + Vol – Retrieves information on the Vol + remaining talk time Resets the headset to the Vol + Vol – factory default settings EZX 80... -
Page 10: Overview Of The Led Indications
Connectable state, not connected Once the headset is successfully connected, the LED goes off. Meaning during calls Meaning Incoming call Incoming call + rechargeable battery is weak Meaning during charging Meaning Charging in progress Rechargable battery is fully charged 5min EZX 80... -
Page 11: Putting The Ezx 80 Into Operation
Putting the EZX 80 into operation Putting the EZX 80 into operation Charging the headset WARNING Danger of injury! Wearing or using the headset during charging can cause burns and injuries. During charging, place the headset on a table. A complete charging cycle takes about 1 hour and 20 minutes. Before... -
Page 12: Connecting The Headset To A Bluetooth Device
Putting the EZX 80 into operation Charging the rechargeable battery using the USB smart charging cable The shapeable USB charging cable allows you to charge the headset so that it, for example, does not even touch your desk. Its compact size also pre- vents cable tangles. - Page 13 Pairing the EZX 80 with a Bluetooth device The following chapter describes, by way of example of a mobile phone, how to pair the EZX 80 with a Bluetooth device. In case of deviation, proceed as described in the instruction manual of your mobile phone.
-
Page 14: Using The Ezx 80
Using the EZX 80 Using the EZX 80 Individually adjusting the headset and wearing it For an optimized and individual wearing comfort, the headset can be worn on your left or right ear. Rotate the earhook, if you want to change the wearing ear of the headset. -
Page 15: Switching The Headset On/Off
Using the EZX 80 Switching the headset on/off Switching the headset on Move the on/off switch to the position ON. The LED flashes 3 times blue and you hear an ascending sequence of beeps. When the headset is paired but not yet connected to the mobile phone, the LED flashes 3 times blue every 5 seconds. -
Page 16: Retrieving Information On The Remaining Talk Time
Using the EZX 80 Retrieving information on the remaining talk time You can retrieve information on the remaining talk time at any time except when you are on a call or listening to music: Press the Volume + button for 2 seconds. -
Page 17: Changing The Speaker Volume
Using the EZX 80 Changing the speaker volume WARNING Vol + Hearing damage due to high volumes! Listening at high volume levels for long periods can lead to perma- nent hearing defects. Set the volume to a low level before putting on the headset. -
Page 18: Making Calls Using The Headset
Accepting/rejecting/ending a call When your EZX 80 is connected to a mobile phone and you receive a call, you hear a ring tone in the headset and the LED flashes blue every 2 seconds. If the headset battery is low, the LED flashes red instead of blue. -
Page 19: Accepts An Incoming Call And Ends The Active Call
Using the EZX 80 Managing two calls You can manage two calls: • from either two different Bluetooth devices or • from one Bluetooth device. If you want to manage two calls from one Bluetooth device, disconnect the second Bluetooth connection. - Page 20 Using the EZX 80 Redialing The redialing function must be supported by your mobile phone or Bluetooth device (with HF profile respectively) and be activated. Press the multi-function button: Duration Function Information Redials the last number Stops redialing Voice dialing The voice dialing function must be supported by your mobile phone (with HF profile) and be activated.
-
Page 21: Cleaning And Maintaining The Ezx 80
If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.senncom.com. 20 | EZX 80... -
Page 22: Restoring Factory Default Settings (Reset)
To re-establish a connection to the mobile phone: Briefly press the multi-function button. Once the connection is successfully re-established, the voice prompt “connected” is announced in the headset. ”connected“ 10 m EZX 80 | 21... -
Page 23: Specifications
Specifications Specifications EZX 80 Dimensions approx. 18 x 50 x 20 mm (W x H x D) Weight without earhook approx. 10.6 g Standby time up to 10 days (300 hours) Talk time up to 10 hours Charging time approx. 1 hour 20 minutes... -
Page 24: Manufacturer Declarations
Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser Communications A/S gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.senncom.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser’s goods come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 25 FCC ID: DMOCBMSCE Canada IC: 2099D-EZX80 Europe Australia/ New Zealand Singapore Russia ME10 Bluetooth Korea Certification no. KCC-CRM-SC9-EZX80 Product name Bluetooth headset Model EZX 80 Applicant Sennheiser Communications A/S Manufacturer Sennheiser Communications A/S Country of Origin China 24 | EZX 80...
- Page 26 Section 2.1093 of the FCC rules. Trademarks ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennheiser Communica- tions A/S is under license. ® ® iPod...
- Page 27 Sennheiser Communications A/S Langager 6, 2680 Solrød Strand, Denmark www.senncom.com Publ. 07/12, A01...
