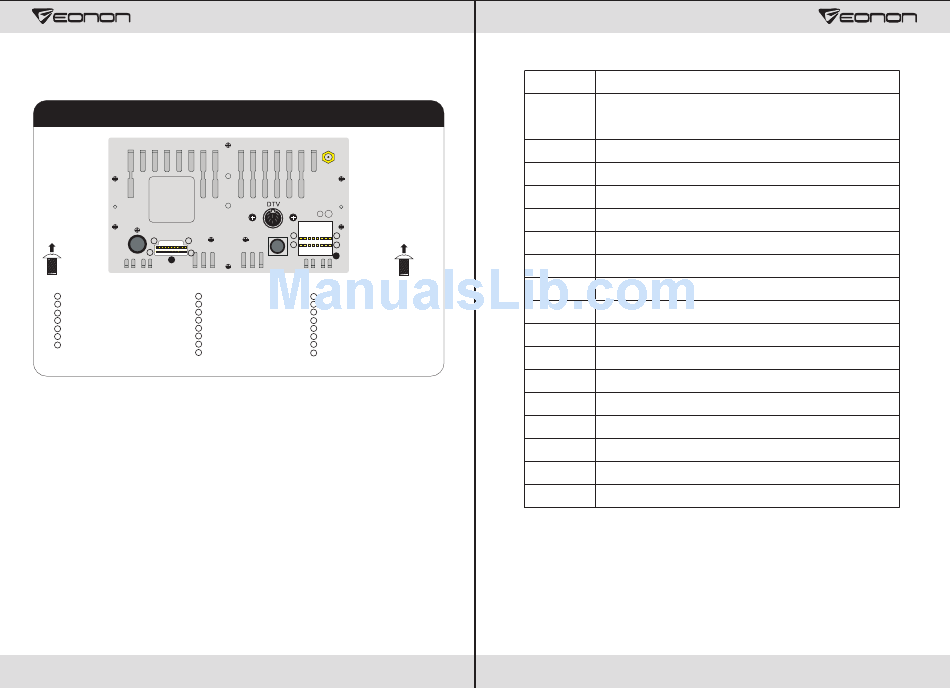

Wiring Diagram

Audio-Visual Navigation&Entertainment System
1 21
2
22
Radio ANT
A
A: B:
1 Black:KEY GND(Steering Wheel control(GND) 1
Black:GND(grounding)
2 2
Red:KEY2(Steering Wheel control2)
Yellow:B+(Power+)
4 White:KEY1(Steering Wheel control1) 3
Oranger:ILLUMI(Headlight control))
8 4
Yellow:CAMERA(Reversing video input) Red:ACC(ignition)
10 5
Green:AUX-CVBS(External video input) Orange and black stripe:AMP PEM
6
11
RED:AUX-IN-R(Right audio channel input) P-ANT Blue:(Antenna control)
7
12 White:AUX-IN-L(Left audio channel input) Brown:REVERSE(Reversing control)
8
Pink:PARKING(Braking control)
Note:Two mechanism retaining screws must be taken out before installation;otherwise disk may not be able to be put in!
33
DC voltage 12V Negative electrode GND Output Power:4X65W Total current:：≤15A
GPS ANT
1 15
2 16
B
IPOD
9
Purple and black stripe:PR-Right,negative
10
Green and black stripe:RL-,Rear-left speaker,negative
11
Purple:PR+,Rear-right speaker,positive
12
Green:RL+,Rear-left,positive
13
Grey and black stripe:FR-,Front-right,negative
14
White and black stripe:FL-,Front-left,negative
15
Grey:FR+,Front-right,positive
16 White:FL+,Front-left,positive
<Function Buttons on Main Menu>Table
Serial number of push-buttons
Serial no.
Show current time and date(time and date can update
1
automatically after GPS signal received)
Adjust the Backlight
2
Back to the previous working status
3
Enter the function list menu (shown as picture 2)
4
Enter the radio function
5
Enter the navigation function
6
7 Enter the DVD function
8 Enter the setting function
9 Enter the Bluetooth function
10 Enter the IPOD function
11 Enter the auxliary input function
12 Back to the main menu
13 Enter the steering wheel control function
14 Enter the rear view camera function
15 Enter the SD function
16 Enter the USB function
Enter the Digital TV Function
17
Notes:
1.The 5 function icons on the main menu (picture 1) are normal function icons .The
setting method of normal function icons :Enter the function list menu(picture 2),hold
a chosen icon for 3 seconds and drag it downward to the third row ,then back to the
main menu(picture 1),users can see the chosen icon is shown in the normal function
icons zone.
2.The gray icon in the function list(picture 2) are optional function icons.
