Summary of Contents for Eonon D2207

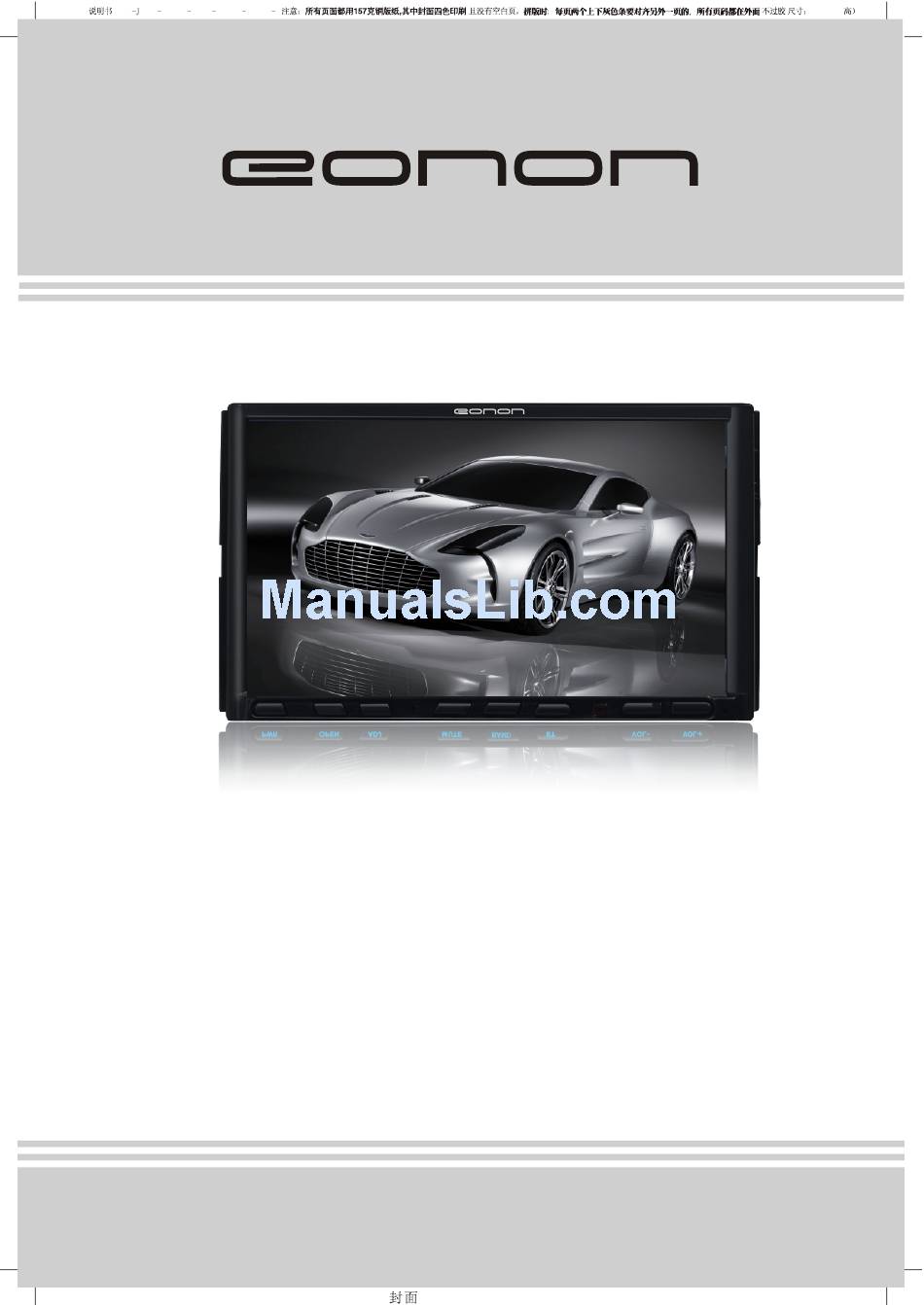

- Page 1 Sb02 9201N 4301 1616 0 /4301 J1617 0 /4301 J16179 0 145x210( D2207 BAND BAND VOL - - OPEN OPEN MUTE MUTE VOL+ VOL+ Model:D2207 User Manual Please read this manual before using and save this manual for furture reference.
-
Page 3: Warnings And Precautions
Warnings and Precautions Warnings... - Page 4 Warnings and Precautions Precautions Never disassemble or service the unit without professional guidance. For details, please consult a professional car shop/dealer. If the front panel or display is dirty, use a clean silicone cloth and neutral detergent and wipe any moisture from discs.Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or discoloration to the unit.
- Page 5 Install Before installing the receiver, fit it in the approximate place in your car and connect the equipment according to the speakers and electrical connections. When your system is operated properly, follow the instructions for permanent installation of your system. MOUNTING BRACKETS 2.
-
Page 6: General Features
General Features MUTE BAND VOL - OPEN VOL+ 10 11 Power on/ off Panel ejection button Position adjustment button The microphone Mute button Band button Bluetooth button Remote control sensor Reduce volume button Increase volume button The reset button Map SD card slot SD card slot Disc eject button USB port... -
Page 7: Remote Control
Remote Control Loading and replacing the battery Pull out Notes for using the remote control : The remote control uses infrared signals, not radio signals,so you must aim the remote at the unit when using it. If the battery will not been used for a month or longer, then remove the battery from the remotecontrol or insert a battery insulator. - Page 8 Remote Control Button and Function Note: Remote picture just for confernce. [PWR] Button: Power [REC/Sub-T]Button: Transfer recording /Language switch [MUTE] Button: Mute [SRC] Button: Play source switch [BAND] Button: Band switch [APS] Button: Scan Mute Mute [ST/RPT] Button: Stereo switch/Repeat Sub-T Sub-T Band...
-
Page 9: Basic Operation
Basic Operation Display position adjustment Press [SRC] button shortly will turn the unit on. Press [ADJ] button can adjust angle of screen: Press [ADJ] button repeatedly can adjust Press [SRC] button shortly turn off. the screen angle gradually. The unit has 3 angles for adjustment. -
Page 10: Setup Operation
Setup Operation SETUP Enter the main menu, touch the setup button will display: Video mode: Video setup Bright Color Contrast. VIDEO BRIGHT COLOR CONTRAST 13 Mode MODE USER STAD USER BRIG SOFT VIDEO Menu operation BRIGHT COLOR CONTRAST 13 Touch [ ] to choose menu. -
Page 11: Radio Operation
Radio Operation Band Tune BAND Manually Tune Press [BAND] on the screen to select among Press[ ] button: adjust to higher three FM or two AM bands. (FM1-FM2-FM3-AM1-AM2) frequency.(such as 87.5,87.55...) Press[ ] button: adjust to lower frequency (such as 105.5,105.0...) Automatically Tune Holding down the [ ] button: search higher... - Page 12 Radio Operation AF(Alternative Frequency) Turn "AF",the unit will switch to the stronger signal of thesame station automatically. TA(Traffic announcement) Press TA, the unit will prior to seek the traffic information. If the machine receives the traffic information, it will choose this signal and quit other radio signal or CD program. If press TA again, other program will recover and the traffic information program will quit.
-
Page 13: Play Operation
Play operation Insert DVD disc, touchscreen will show menu as follows: DVD-V T 001/003 C 002/025 TITLE DVD-V 00:33:11/01:45:44 00:33:11/01:45:44 BACK BACK You can choose any icon to play or setup. Note: Because the different situation of Disc REC, some of the CD-R,CD-RW,DVD-R,DVD-RW, Caption choose DVD+R,DVD+RW Disc may can not be readed. - Page 14 Play operation Insert MP3 disc, touchscreen will show menu as follows: Play/pause: Press [ ] button to play or pause. MUSIC 0 0 1 0 0 1 00 1 M P 3 Select chapter or section: 0 0 2 00 2 M P 3 In the DVD mode, 0 0 3 00 3...
-
Page 15: Usb/Sd Operation
USB/SD operation USB/SD mode USB/SD mode Inset USB/SD,the play will to the USB/SD playing mode antomaticly. USB/SD play opration PLAY/PAUSE: Press [ ] button to play or pause. Select: Under USB or SD play mode, press[ ] button to select tracks. - Page 16 Bluetooth The Bluetooth is wireless mode of transmission in short distance.Through Bluetooth function, the DVD unit establishes connection with Bluetooth handset. And then, these units can realize mutually contrdling and file transfering. BT Choose BT Choose: Press [BT] or touch BT icon, can enter BT mode when calling. Working mode of Bluetooth Bluetooth has the following functions: A: Paring...
-
Page 17: Mobile Phone
Bluetooth Mobile phone 1359020 1359020 After connected, you can make phone call through, touch screen or phone record. A: Making mobile phone call After making phone call, the [ ]will shining. B: Making touch screen call Input the numbers on the screen, press [ con can correct the numbers;... - Page 18 TV tuner TV operation You need install TV antenna, when receive program. TV mode: Press [MENU] enter into main menu, then press TV icon to enter. Channel seek: Press [AMS] can seek TV programs and restore them automatically. Channel choose: [PREV]: choose channel up.
-
Page 19: Electric Connection
Electric Connection GRAY Front right RCA out(RED) TV antenna plug GRAY Front left RCA out(WHITE) BLACK Back a car video in(YELLOW) GPS Antenna GRAY Fuse(10A) Subwoofer(BROWN) GRAY Back right RCA out(BLUE) Radio Antenna Dimmer ORANGE GRAY Back left RCA out (PURPLE) BLACK AUX left in(WHITE) -
Page 20: Troubleshooting
Accessories The included attachments of the unit are as below sheet: GPS antenna........one piece USB connected wire ......one piece Mounting brackets......two pieces Screw..........six pieces The use of any accessories except of those provided might result in damage to the unit .Make sure only to use the accessories shipped with the unit ,as shown above. -
Page 21: General Problems
Troubleshooting General problems Symptoms Causes Remedies The fuse of the unit has been broken. Install a new fuse with correct rating. The unit cannot be powered on. Install a new fuse with correct rating. The fuse of car battery has been broken. Reset the unit. -
Page 22: Tft Monitor
Troubleshooting TFT Monitor Symptoms Causes Remedies No image appears on Correct the connection according to the monitor and warning Incorrect connection of (Electrical Connections Overall Diagram). information is shown at Breaking wire. all times. The color system of DVD Adjust the color system of the DVD disc disc is not suited with the or the monitor. -
Page 23: Radio Tuner
Troubleshooting Radio Tuner Symptoms Causes Remedies Correct the connection according to Auto antenna is not extended (Electrical Connections Overall Diagram). completely. It's hard to Correct the connection according to Auto antenna is not connected with receivestations. (Electrical Connections Overall Diagram). the unit firmly. -
Page 24: Dvd Player
Troubleshooting DVD player Symptoms Causes Remedies Disc cannot be inserted. There is a disc in the unit already. Eject the disc then insert another one. Change the disc. Disc is scratched. Clean the disc. Disc is too dirty or wet. Clean the pickup with cleaning disc. -
Page 25: Specifications
Specifications Specifications subject to change without notice. Monitor secto TFT screen size....................7.0 Dot distance ................0.107*0.370mm Analysis ........1440*234 dots ............................LED Background illuminatio..DVD sector D/A convert.....................24 Bit Decode............linearity PCM/Dolby digital/MP3/WMA Quiver and shake.............less than measure limit Frequency effec (sample frequency;96k)..............20~44.000Hz (sample frequency;48k)..............20~22.000Hz... - Page 26 Specifications Specifications subject to change without notice. RECEVING FREQUENCY FIGURE Auto Tiny FREQUENCY AREA BAND Stepping Stepping RANGE HZ 87.5-108.0M EUROPE 522-1620K 87.5-107.9M AMERICA 530-1710K 87.5-108.0M SOUTH AMERICA 520-1620K 87.5-108.0M RUSSIA 65.0-74.0M 522-1620K...
