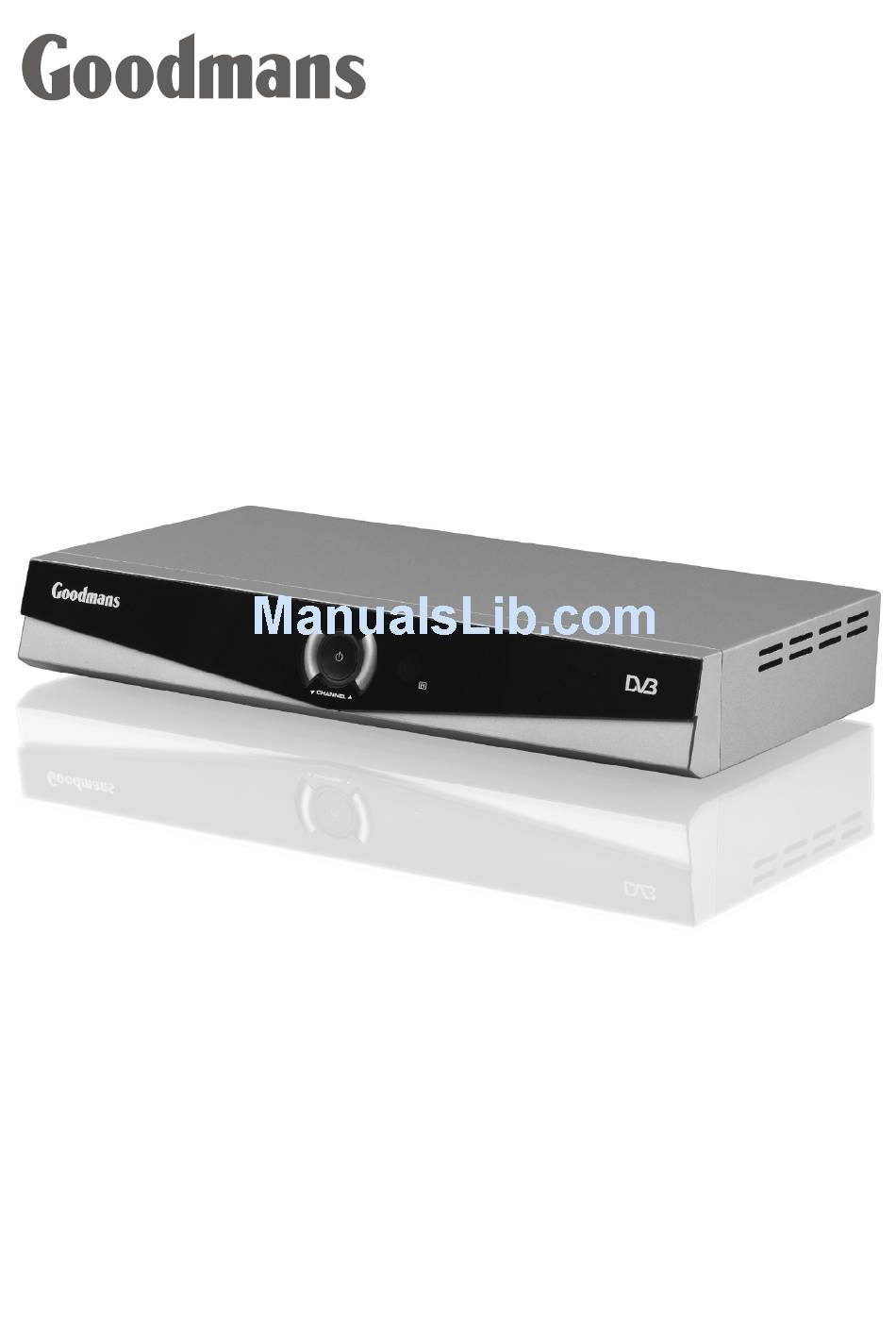

- Page 1 GDB9 INSTRUCTION MANUAL DIGITAL TERRESTRIAL RECEIVER Goodmans Helpline: 0871 230 1777 EMAIL: sparesdist@albaplc.co.uk Please read these instructions before use and keep for future reference...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing this product. Please check carefully in the box for the following parts: 1. 1 X GD B9 S TB 2. 1 X Remote control 3. 2 x AAA Batteries 4. 1 X Scart Cable 5.
-
Page 5: Table Of Contents
CONTENTS SAFETY INFORMATION INTRODUCTION About STB Front panel Rear panel Remote control SYSTEM CONNECTION General about connections Connecting to the TV Connecting a video recorder with scart Connecting a HiFi system GETTING STARTED Switching on for the first time Automatic channel scan Manual channel scan OPERATION Changing channels... -
Page 6: Introduction
INTRODUCTION Front panel Power indicator Standby button Remote sensor Channel down Channel up Rear panel TV aerial AC Mains AUX Scart for an external TV aerial for connection to a VCR or a satellite receiver Coaxial Digital Audio AC 220-240V Digital Audio ~50/60Hz Aerial Input... -
Page 7: Remote Control
INTRODUCTION Remote control Remove the battery compartment cover. Load two AAA (UM-4 or R03) batteries into the battery compartment. Make sure that the batteries have been inserted in the correct polarities matching to the symbols +, - marked in the battery compartment. Close the battery compartment cover. -
Page 8: Remote Control
REMOTE CONTROL FUNCTIONS Power On/Standby (Switch the STB ON/STANDBY mode) Recall (Reverts to previous channel) Channel up/down TV/DTV STANDBY LIST Open the channel list RECALL Menu (Open up menu) FAV+ Cursor ( to select sub-menu from the main menu ) LIST FAV- OK button... -
Page 9: System Connection
SYSTEM CONNECTION General There are many different types of that you can connect to the STB. devises In this manual you will see some of the most common ways to connect your equipment. Note that 1 x scart cable is supplied. If further cables are required these can be purchased from most TV/ HiFi retail outlets. -
Page 10: Getting Started
GETTING STARTED Switching on for the first time Turn on your TV set and select the corresponding AV input (with the AV key, or simular, on the television remote control). Turn on the main power supply to the STB, the indicator on the front of the unit will turn red and then amber . -
Page 11: Operation
OPERATION Changing Channels There are four ways of channel selection - stepping through the channel list, selection by number, from the on-screen channel list, and using the EPG Stepping through the channel list: Press the "UP" or "DOWN" cursor button to browse up and browse down the available channels. Selection by number: Enter the complete channel number directly by remote control to select desired channel. -
Page 12: Channel List
CHANNEL LIST Channel List The Channel List presents a list of all channels found during the channel search. From the Channel List you can watch and listen to the selected channels, delete them from the list, edit the name of the channel, set a password to access the channel. Channel List MENU Favourite List... -
Page 13: Favourite List
FAVOURITE LIST Favourite list This menu allows you to store a list of your favourite channels. So that you can access them more easily. There are five favourite lists to set, each family member can have their own favourite list. Adding channels to Favourite list: MENU Press the "MENU"... -
Page 14: System Setting
SYSTEM SETTING Many aspects of your STB can be set to reflect your circumstances and preference. The SETTINGS menu screen is accessed from main menu. A/V setting This menu allows the users to set TV shape, Video Output and OSD Transparency. MENU Press the "MENU"... -
Page 15: Change Pin Code
SYSTEM SETTING Change Pin Code This menu allows users to change pin code. Enter the system setting menu, press "UP" or "DOWN" cursor button to highlight the Change Pin Code menu. A/V Setting First Time Installation Press "OK" button to enter the sub-menu. System Info Enter the old pin code using the numeric buttons(Default pin code is Change Pin Code... -
Page 16: Troubleshooting
TROUBLESHOOTING In some area's , the digital terrestrial signal may be weak. It is vitally important that the aerial and cable used is the latest high gain type to ensure trouble free reception. If you are in any doubt of the reception area for Free View reception call 08701 111270. -
Page 17: Specification
SPECIFICATIONS SYSTEM RESOURCE FLASH SDRAM 16MB TUNER & CHANNEL RF INPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, FEMALE) RF OUTPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, MALE (LOOPTHROUGH)) FREQUENCY RANGE: 470MHz ~862MHz (UHF) SIGNAL LEVEL: -15 ~ -70 dbm DECODER MPEG-2 ISO/IEC 13818 TRANSPORT STREAM MPEG-2 MAIN PROFILE @MAIN LEVEL PROFILE LEVEL MAX. - Page 20 2007.06...
