Goodmans GFSAT102DHS Quick Start Manual

Model: GFSAT102DHS
Quick-start guide for Freesat
standard definition receiver
In the box

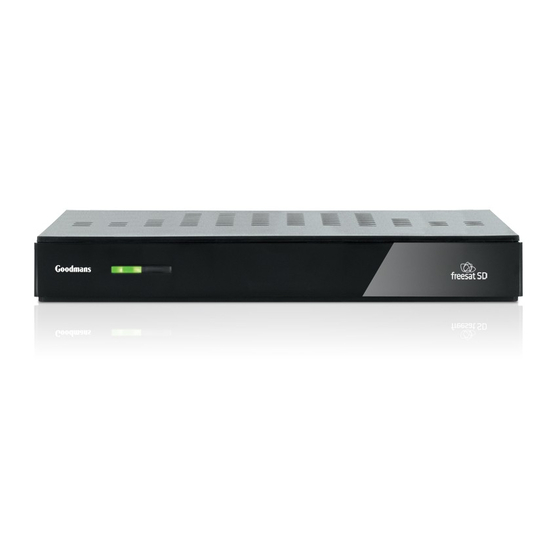

1 Freesat standard definition receiver
2 Remote control
3 SCART cable
4 Two batteries
5 Quick-start guide
6 User guide
GFSAT102DHS_QSG_0411.indd 1
1
3 GFSAT102DHS
2
4
6
GFSAT102DHS
5
1 Connect the receiver to a TV
using a SCART socket
3
1 Make sure that your TV and receiver are switched off.
2 Unplug your TV from the wall socket.
Connect the cable that comes from your satellite dish to the socket labelled 'LNB IN' on the back
3
panel of the receiver.
4 Connect the SCART cable that came with the receiver between the TV socket on the back panel of
your receiver and the SCART socket on your TV.
5 Switch on your receiver at the wall socket. The green light on the front panel will come on.
6 Plug your TV back into the wall socket and switch on your TV.
2 Putting batteries in the remote control
1 Open the battery cover on the back of the remote control.
2 Put the batteries (included with your receiver's remote control) in as shown on the diagram above.
3 Put the battery cover back on.
4
TV
