CXC 700
Ear canal phones with
digital NoiseGard
for travel
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CXC 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sennheiser CXC 700

Summary of Contents for Sennheiser CXC 700

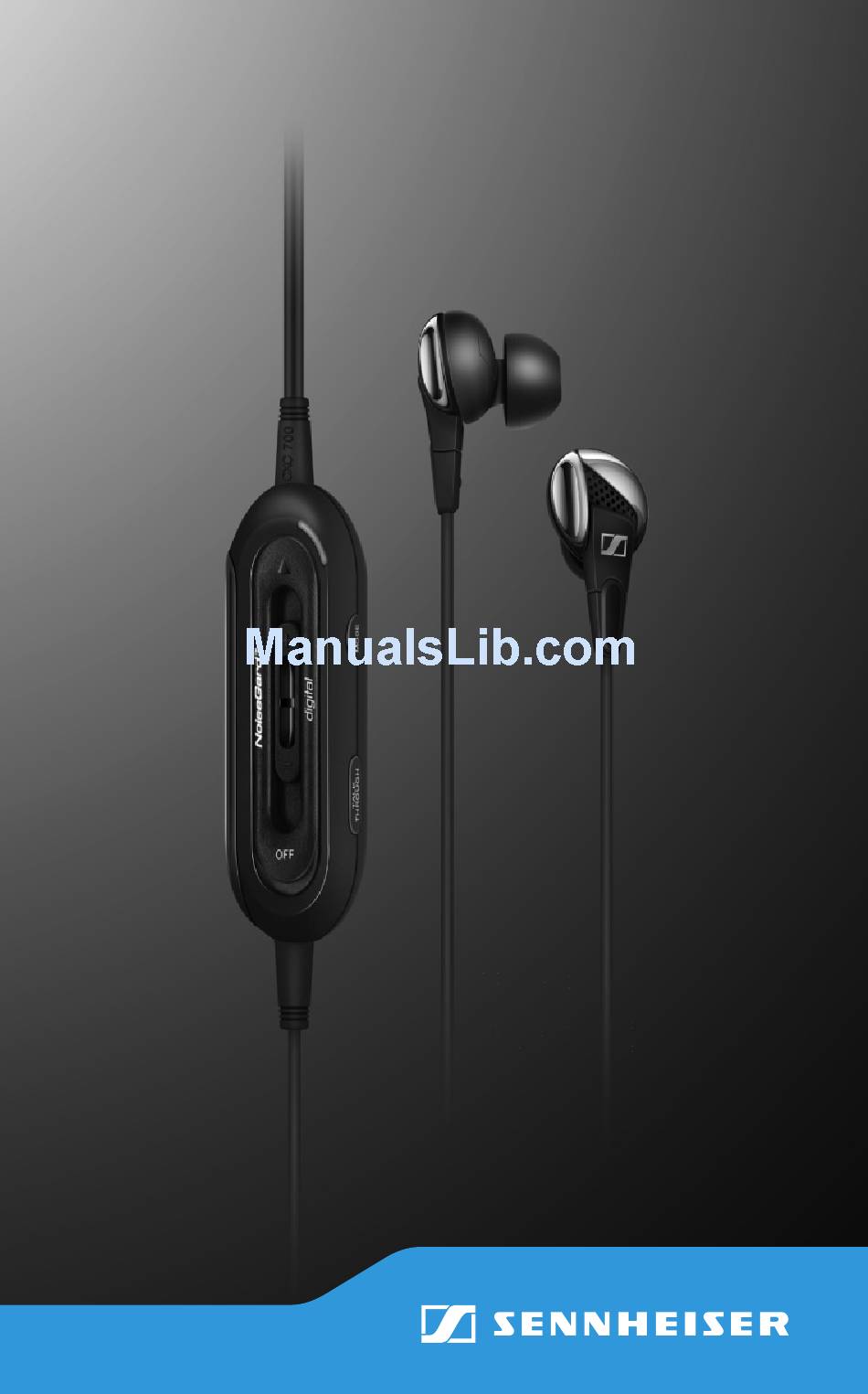

  • Page 1 CXC 700 Ear canal phones with digital NoiseGard for travel Instruction manual...

  • Page 2: Table Of Contents

    Contents Contents Important safety instructions ...2 Delivery includes ........6 Product overview .........7 Putting the CXC 700 into operation .. 8 Inserting/changing the battery ..9 Exchanging the ear adapters ..9 Connecting the ear canal phones to the audio source ..10 Using the CXC 700 ......

  • Page 3: Important Safety Instructions

    The product generates stronger perma- nent magnetic fields that could cause interference with cardiac pacemakers and implanted defibrillators (ICDs). Always maintain a distance of at least 3.94” (10 cm) between the headphone housing and the cardiac pacemaker or implanted defibrillator. CXC 700...
  • Page 4 Protect the product from humidity. Intended use Intended use of the product includes • having read this instruction manual, especially the chapter “Important safety instructions”, • using the product within the oper- ating conditions and limitations described in this instruction manual. CXC 700...
  • Page 5 Safety instructions for batteries If abused or misused, batteries may leak and, in extreme cases, may even present an explosion and fire hazard. Sennheiser does not accept any liability for damage arising from abuse or misuse. Keep out of reach of children.
  • Page 6 Do not continue to use defective batteries. Immediately remove batteries from an obviously defective product. Remove batteries from the product when it is not used for extended periods of time. Do not expose to moisture. Do not charge non-recharge- able batteries. CXC 700...

  • Page 7: Delivery Includes

    Delivery includes Delivery includes CXC 700 ear canal phones Ear adapters (size S, M, L), size is pre-mounted to the ear canal phones Diaphragm guards Cleaning tool In-flight adapter Audio adapter AAA size battery, 1.5 V Carrying case CXC 700...

  • Page 8: Product Overview

    Product overview Accessory parts are available from your Sennheiser partner. For a list of suitable accessory parts, please visit our website at www.sennheiser.com > “Service & Support”. Product overview Volume Mode button control TalkThrough NoiseGard button switch Battery compartment CXC 700...

  • Page 9: Putting The Cxc 700 Into Operation

    Putting the CXC 700 into operation indications Meaning lights up NoiseGard is switched on flashes Battery is almost flat continuously is off NoiseGard is switched Putting the CXC 700 into operation For powering the NoiseGard active noise compensation, an AAA size battery is required.

  • Page 10: Inserting/Changing The Battery

    Putting the CXC 700 into operation Inserting/changing the battery Open the battery compartment. Remove the discharged battery (where applies). Insert a new battery. Observe correct polarity when inserting the battery. Close the battery compartment. Exchanging the ear adapters Carefully remove the ear adapters from the ear canal phones.

  • Page 11: Connecting The Ear Canal Phones To The Audio Source

    Putting the CXC 700 into operation Connecting the ear canal phones to the audio source Connect the audio cable to the head- phone socket of your audio source. You hear the sound from your audio source. Slip on the in-flight adapter if you...

  • Page 12: Using The Cxc 700

    Using the CXC 700 Using the CXC 700 Adjusting the volume/ routing the cable WARNING Interference due to magnetic fields! The product generates stronger per- manent magnetic fields that could cause interference with cardiac pacemakers and implanted defibril- lators (ICDs).
  • Page 13 Using the CXC 700 Use the cable slider to adjust the length for best fit. Use the volume control to set the volume to a comfortable level. Vol + Vol – 12 | CXC 700...

  • Page 14: Switching Noisegard On/Off

    Using the CXC 700 Switching NoiseGard on/off To switch the NoiseGard active noise compensation on: Slide the NoiseGard switch to ON. NoiseGard is switched on and your audio source is momentarily muted. To ideally adapt the NoiseGard active noise compensation to the current...
  • Page 15 (100 to 3,000 Hz) in general Press the Mode button repeatedly until external noise is optimally isolated. The CXC 700 confirms the selected mode as follows: 14 | CXC 700...
  • Page 16 Using the CXC 700 Mode Beep Then, the LED lights up permanently again. When the battery is completely empty, NoiseGard is deactivated. The audio source will stay muted until you switch NoiseGard off: Slide the NoiseGard switch to OFF. CXC 700...

  • Page 17: Individually Adapting Noisegard Tm

    Using the CXC 700 Individually adapting NoiseGard The CXC 700 features a function that allows you to individually adapt Noise- Gard to the anatomy of your left and right ear. For the best possible adjust- ment of this function, you need to be in a noisy environment (e.g.
  • Page 18 Using the CXC 700 Step left earphone: Press and hold TalkThrough button and slide the NoiseGard switch to ON. Keep the button pressed until you hear two beeps and the LED flashes rapidly (approx. 5 seconds). Proceed to step 3.
  • Page 19 Using the CXC 700 When you have adjusted NoiseGard so that external noise is optimally iso- lated, wait until you hear a beep and the LED lights up (approx. 10 seconds). The settings are stored. Resetting the factory default settings...

  • Page 20: Switching Talkthrough On/Off

    Using the CXC 700 Switching TalkThrough on/off TalkThrough enables you communicate with flight attendants or seat mates, without removing the ear canal phones and while Noise- Gard is switched on. When activated, the ear canal phones filter out unwanted ambient...

  • Page 21: Storing The Cxc 700

    Storing the CXC 700 To switch TalkThrough off: Press the TalkThrough button again. You hear your audio source. The LED lights up permanently. TalkThrough TalkThrough Storing the CXC 700 Store canal phones and accessories in the carrying case. 20 |...

  • Page 22: Cleaning And Maintaining

    The diaphragm guards protect the dia- phragms of the ear canal phones and contribute to the sound quality of the ear canal phones. Ensure that the dia- phragm guards are always installed in the ear canal phones. CXC 700 | 21...
  • Page 23 To replace the diaphragm guards: Carefully remove the ear adapters from the ear canal phones. Carefully remove the diaphragm guards using the supplied cleaning tool or tweezers. Install the diaphragm guards. Mount the ear adapters to the ear canal phones. 22 | CXC 700...

  • Page 24: Specifications

    THD at 1 kHz < 0.5% Noise attenuation active: –23 dB passive: –25 dB Audio connector 3.5 mm jack plug In-flight adapter 3.5 mm double mono jack plug Audio adapter 6.35 mm stereo jack plug Cable length 1.6 m CXC 700 | 23...

  • Page 25: Manufacturer Declarations

    1.5 V Operating time approx. 16 hrs Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.
  • Page 26 Before putting the product into opera- tion, observe the respective country- specific regulations! In compliance with: FCC Part 15b Canada ICES-003 Europe Australia/ Zealand China NoiseGard is a registered trademark of Sennheiser electronic GmbH & Co. KG. CXC 700 | 25...

  • Page 27: Industry Canada

    Manufacturer Declarations Statements regarding FCC and Industry Canada FCC Declaration of Conformity (DoC) SENNHEISER Model No: CXC 700 Sennheiser Electronic Corporation One Enterprise Drive • Old Lyme • CT 06371 • USA Tel: +1 (860) 434 9190, ext. 144 Fax: +1 (860) 434 1759 declare the above device comply with the requirements of Federal Communications Commission.
  • Page 28 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void FCC authorization to operate this equipment. This class B digital apparatus complies with the Canadian ICES-003.
  • Page 29 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in China, Publ. 07/11, 540087/A05...
