ALPINE ELECTRONICS OF ASIA PACIFIC CO., LTD.
555 Rasa Tower 1, Unit 2601-2602, 26th Floor, Phaholyothin Rd.,
Chatuchak, Bangkok, Thailand 10900
Tel : +662-937-0505 Fax : +662-937-0569
http://www.alpine-asia.com
4
KTX-WXE-CA8
INSTALLATION KIT
Owner's Manual
This owner's manual will give you clearly understanding about installation.
For making installation correctly, please read this manual carefully before operating installation.
1

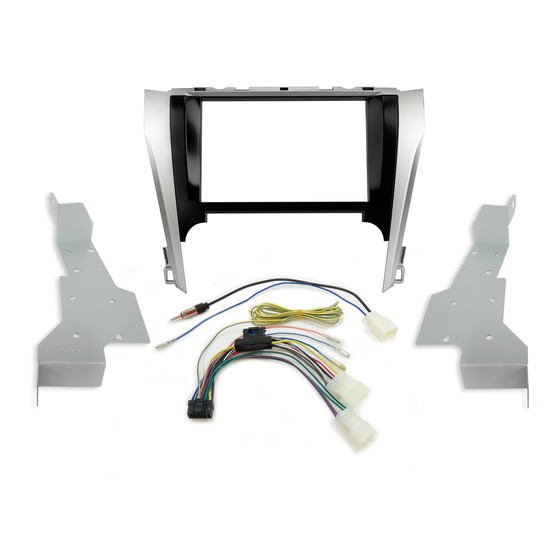

Component Parts
Audio Panel
Alpine-Toyota power cord
2
Connecting Diagram
For other Audio connectivity
please refer to the head unit
Owner's manual.
Connect the connector
tightly into the port.
IN INT (Pink/Black)
P.ANT (Blue/White)
REMO (Blue)
P.BRK (Yellow/Blue)
Car Model
Model Year
CAMRY
2012
Alpine-Toyota
Bracket
Antenna cable
10P
10P
Alpine-Toyota
Toyota audio
Power cord
connector
6P
6P
1
