Clark Synthesis Diluvio Installation Manual

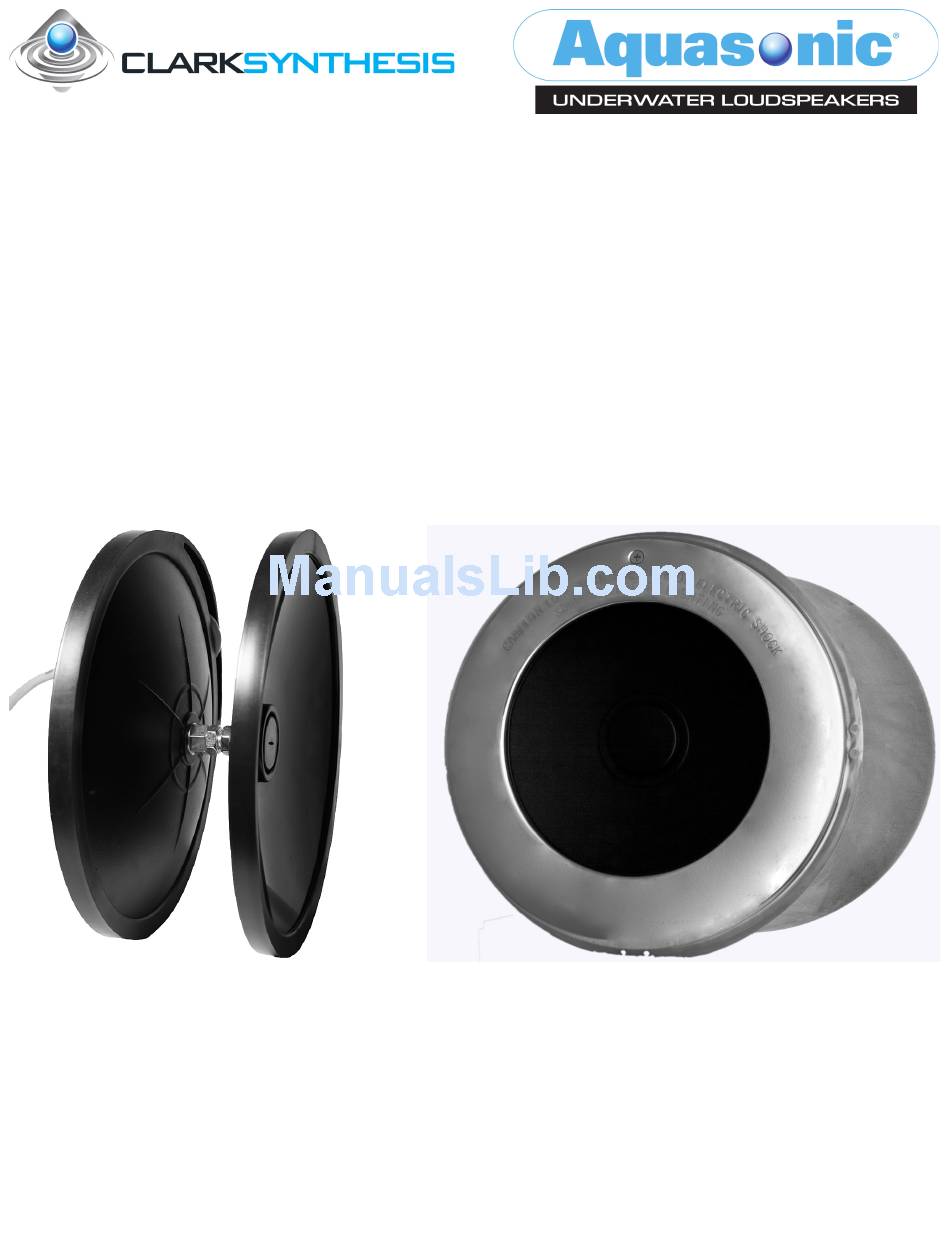

Underwater loudspeaker installed in a hayward face rim

Installation Guide

Diluvio™ Underwater Loudspeaker

Installed in a Hayward Face Rim

This procedure uses the following parts:

• Diluvio™ Underwater Loudspeaker

• Hayward Stainless Steel Face Rim, Part Number SPX0580AS

• Hayward Assembly Clamp with Screw, Nut, and Washer, Part Number SPX0580BS

• Hayward Face Rim Lockscrew, Part Number SPX0980Z3

Table of Contents

Need help?

Do you have a question about the Diluvio and is the answer not in the manual?

Page 1: Installation Guide
Diluvio™ Underwater Loudspeaker Installed in a Hayward Face Rim This procedure uses the following parts: • Diluvio™ Underwater Loudspeaker • Hayward Stainless Steel Face Rim, Part Number SPX0580AS • Hayward Assembly Clamp with Screw, Nut, and Washer, Part Number SPX0580BS...
Page 2 Diluvio™ INSTALL- HAYWARD FACE RIM Diluvio™ Remove the Loudspeaker from its box. Using a pair of wire cutters, carefully remove 1 inch (2.54 cm) of the sound lens rubber ring (see Photo #1 below). DO NOT CUT the rubber ring that holds the speaker wire.
Page 3 Diluvio™ INSTALL- HAYWARD FACE RIM Insert the lockscrew in the face rim (#7). Place the lockwasher onto the screw threads and turn the screw until the lockwasher is seated against the inside of the face rim (#8). Note: In actual applications, the niche will already be mounted in the wall of the pool.
