CAUTION:
THIS SPEAKER CONTAINS
AN EXTREMELY POWERFUL MAGNET.
DO NOT PLACE IN CLOSE PROXIMITY
TO TUBE TV MONITORS, TUBE VIDEO
MONITORS, AND MAGNETIC MEDIA.
Installation Guide
AQ339-Underwater Speaker

Table of Contents

Detailed In-Wall Mounting Hardware Images
10
11
2
3
4
5
6
7
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tactile Sound Aquasonic AQ339 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clark Synthesis Tactile Sound Aquasonic AQ339

Summary of Contents for Clark Synthesis Tactile Sound Aquasonic AQ339

  • Page 1: Table Of Contents

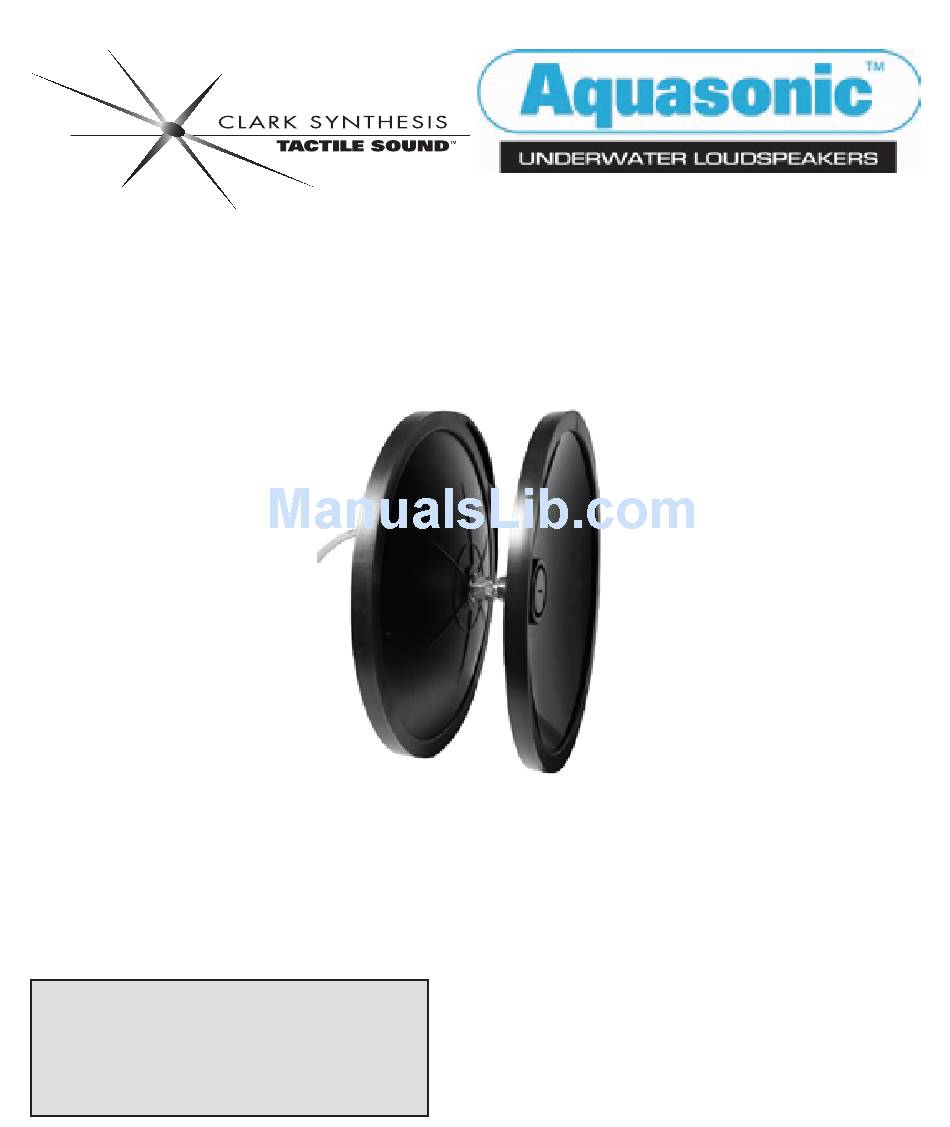

    Installation Guide AQ339-Underwater Speaker Table of Contents Important Product Information Warranty Product Features Installation Overview Diagrams Detailed Speaker Images CAUTION: Detailed In-Wall Mounting Hardware Images THIS SPEAKER CONTAINS In-Wall Installation Instructions AN EXTREMELY POWERFUL MAGNET. Drop-In Installation Instructions DO NOT PLACE IN CLOSE PROXIMITY...
