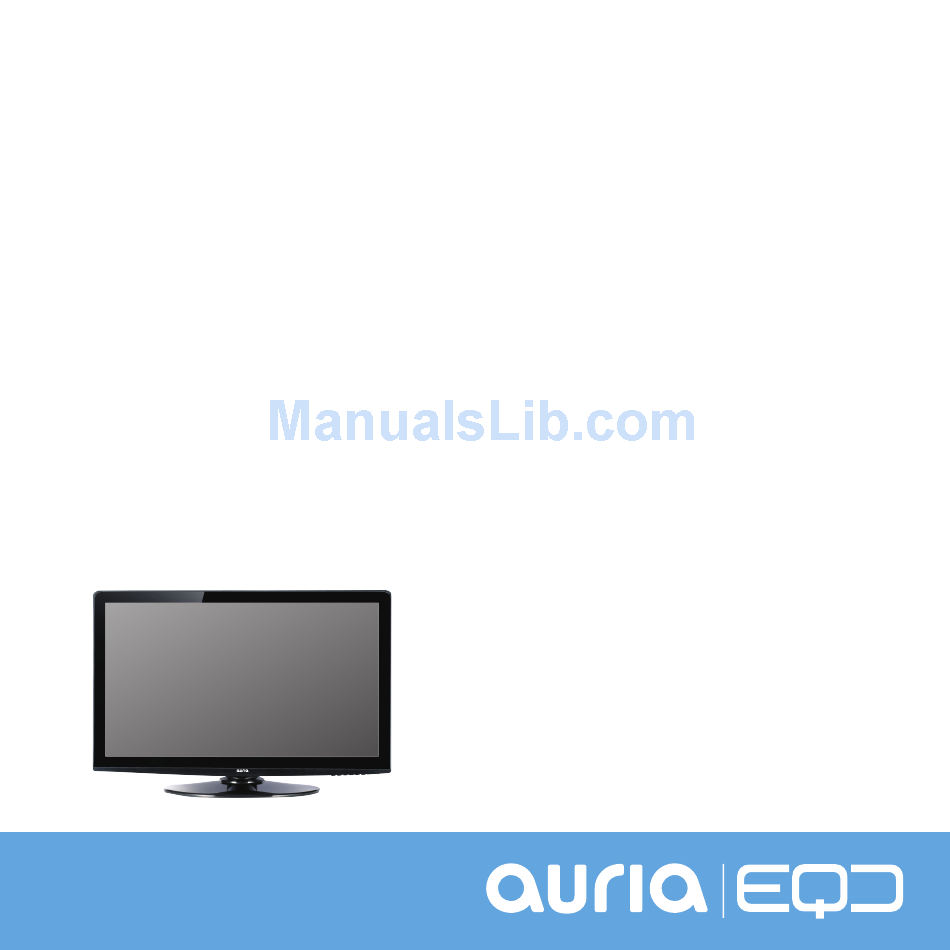

IPS MONITOR
EQ276W-1
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ276W-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Auria EQ276W-1

Summary of Contents for Auria EQ276W-1

  • Page 1 IPS MONITOR EQ276W-1 USER GUIDE...

  • Page 3: Table Of Contents

    CONTENTS Getting Started ................... 2 Setting up your Monitor ................3-6 Connecting your Monitor to your computer ..........7-9 Using your Monitor ................... 10 Operator Interface ................11-12 Adjusting your Monitor’s Settings............13-20 Troubleshooting .................. 21-22 Specifications ..................23-24 Preset Display Modes ................. 24-26 Care and Safety ..................

  • Page 4: Getting Started

    GETTING STARTED Your IPS Monitor is designed to work seamlessly with Windows devices that contain a Display Port, HDMI, DVI, or VGA input.You may also use it with Apple devices via Apple’s mini DVI connector. It features a 27” LED/LCD backlit screen with 2560 x 1440 resolution. In this user guide you will learn how to: •...

  • Page 5: Setting Up Your Monitor

    SET-UP YOUR MONITOR: STEP ONE Check to make sure your packaging includes each of the following: 1. IPS Monitor / Monitor base 2. Signal Cable (VGA, DVI cables) 3. Power cord 4. AC/DC Adapter...
  • Page 6 SET-UP YOUR MONITOR: STEP TWO Connect your monitor to the base. Unpack the monitor and attach the base. For snap-in models tools and fasteners are not required. If screws have been provided with your monitor please connect the base as follows: 1.
  • Page 7 SET-UP YOUR MONITOR: STEP THREE Follow these instructions to adjust your monitor’s viewing angle: Hold the base of the monitor with one hand (to keep the screen from shaking) Using your other hand, grab the side or top of the monitor and tilt the screen forward or backwards.
  • Page 8 SET-UP YOUR MONITOR: STEP FOUR Connect your monitor to a power source. 1. Connect the output cable from the AC Power Adapter (“The Brick”) to the DC Power In connector (flat side of connector towards the cabinet rear) on the monitor.

  • Page 9: Connecting Your Monitor To Your Computer

    CONNECT YOUR MONITOR TO YOUR COMPUTER OR DEVICE Plug in the Cable connecting your desktop, laptop or other device to your monitor Using the Display Port will provide for best performance and resolution. If Display Port is not available, we recommend using Dual Link DVI or HDMI 1.4 device.
  • Page 10 CONNECTING YOUR MONITOR: FOR YOUR REFERENCE Port Connections (Left to Right) • DP (Display Port) • VGA • DVI • HDMI • AUDIO IN • DC (power) HDMI Audio Mainframe computer...
  • Page 11 CONNECTING YOUR MONITOR: FOR YOUR REFERENCE When using a DVI cable, make sure it is a dual link cable, as only a dual link cable will support 2560 x 1440 Resolution. If using a DVI to HDMI cable, the DVI end must be dual link. DVI-D(Dual Link) DVI-D(Single Link) 24+1 needle DVI cable...

  • Page 12: Using Your Monitor

    USING YOUR MONITOR Turn on your monitor by using the ON/OFF power key (located on the front, bottom edge). The power ON indicator LED should be lit. In the following section you will learn how to adjust your monitor’s settings. Keys (Left to Right) •...

  • Page 13: Operator Interface

    OPERATOR INTERFACE AUTO Key: 1.Shortcut key to switch input signal source. 2.This key is an exit key (exit OSD menu) when OSD menu is active. 3.Press the key, monitor will into automatic adjustment. When the OSD menu is OFF. Press the button for 3 seconds and into auto-adjustment function, but only on VGA mode.

  • Page 14: Operator Interface

    OPERATOR INTERFACE DOWN Key/DCR Adjustment Key: When the OSD menu is active, press this key to adjust the options move down. POWER: Green Turn on on standby...

  • Page 15: Adjusting Your Monitor's Settings

    ADJUST YOUR MONITOR’S SETTINGS 1. Press the “MENU” key to activate the OSD interface. 2. Use the “UP” or “DOWN” Keys to browse the main functions. 3. In order to select a function press the “MENU” key. 4. If the function you need has a sub-menu use the “UP” or “DOWN” keys to navigate it, then press “MENU”...
  • Page 16 ADJUST BRIGHTNESS 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “BRIGHTNESS” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse BRIGHTNESS, CONTRAST, ECO & DCR, click “MENU” to select and adjust any of these. 4.
  • Page 17 ADJUST IMAGE 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “IMAGE” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse H.POSITION, V.POSITION, CLOCK, PHASE or ASPECT RATIO, click “MENU” to select and adjust any of these. 4.
  • Page 18 ADJUST COLOR TEMP 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “COLOR TEMP” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse COLOR TEMP, RED, GREEN or BLUE, click “MENU”...
  • Page 19 ADJUST OSD SETTINGS 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “OSD” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse LANGUAGE, OSD H.POS., OSD V.POS, OSD TIMER or TRANSPARENCY click “MENU” to select and adjust any of these.
  • Page 20 ADJUST LANGUAGE 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “OSD SETTINGS” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to select “LANGUAGE” and click “MENU”. 4. Use the “UP/DOWN” keys to browse languages. 5.
  • Page 21 ADJUST RESET SETTINGS 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “RESET” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse IMAGE AUTO ADJUST, COLOR AUTO ADJUST or RESET, click “MENU” to select and adjust any of these. 4.
  • Page 22 ADJUST MISCELLANEOUS SETTINGS 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “MISC” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse HOTKEY TYPE, SIGNAL SOURCE, AUDIO SELECT or VOLUME click “MENU” to select and adjust any of these. 4.

  • Page 23: Troubleshooting

    TROUBLESHOOTING Power pilot lamp is dim Check to make sure the power is turned ON Check to make sure the power cord is securely connected to both the monitor and the socket. Picture looks faint Adjust brightness or contrast ratio Screen display distorted or picture becomes wavy Possibly caused by electronic jamming due to nearby electrical equipment Power pilot lamp is bright, but there is no image on the screen...
  • Page 24 TROUBLESHOOTING Picture is not in the middle or incorrect size Adjust CLOCK and FOCUS or hot keys (AUTO) The images have color shading (white looks not pure white) Adjust RGB color or choose new color temperature Weak brightness and contrast Monitor brightness may be reduced due to over use.

  • Page 25: Specifications

    SPECIFICATIONS Panel Display Equipment IPS Panel (LED/LCD backlight) Dimensions 27” Dot Pitch (mm) 0.233 x 0.233 Resolution (Max) 2560 x 1440 Input Signal D-Sub 15 pin Connector DVI-D Dual LInk Connector DP Version 1.2 Connector HDMI HDMI version 1.4 Connector Frequency HFR (Horizontal Frequency) 30KHz 88.7KHz VFR (Vertical Frequency)
  • Page 26 SPECIFICATIONS Power Equipment 24V 3.75A AC Adapter: 100-240V,50-60Hz Ambient Temperature Humidity Operating temperature:0~50°C Storage temperature:-20~60°C Operation relative humidity: 10~85% Dimensions (mm) 740(L) x 180(W) x 510(H) mm Weight (Net) 7.2 Kg...

  • Page 27: Preset Display Modes

    PRESET DISPLAY MODES Resolution HFR(KHz) VFR(Hz) DOS Mode 720 x 400 31.469 640 x 480 31.469 640 x 480 37.861 640 x 480 37.500 SVGA 800 x 600 37.879 800 x 600 47.20 800 x 600 46.875 1024 x 768 48.363 1024 x 768 56.476...

  • Page 28: Care And Safety

    PRESET DISPLAY MODES Resolution HFR(KHz) VFR(Hz) Full HD 1920 x 1080 67.50 WQHD 2560 x 1440 88.70 CARE & SAFETY Attention: Any unauthorized modifications or changes may cause the monitor to not work properly. The manufacturer is not responsible for radio or image interference caused by unapproved modifications.
  • Page 29 CARE & SAFETY Usage It is normal for your monitor to “blink” the first time you use it. If this occurs simply turn your monitor off, then on again. The effective screen pixels of your monitor should read 99.99% or more, pixel or brightness loss should be less than 0.01%.

  • Page 30: Care And Safety

    CARE & SAFETY Cleaning & transport Keep the original box and other packing material in the event that you need to ship your monitor. To clean your monitor use a soft, dry cloth and only cleaners intended for use with a screen or display. Cleaners with alcohol or acetone will damage your screen.

  • Page 31: Warranty Statement

    Warranty Statement For AURIA LED/LCD Monitor - EQ276W-1 Including those Sold within North America AURIA warrants this product to be free from defects in material and workmanship for a period of twelve months after the original date of consumer purchase.
  • Page 32 This limited warranty does not cover any losses or damages that occur as a result of: Shipping or improper installation or maintenance Misuse Neglect Adjustment by non-authorized sources Any cause other than ordinary usage Repair, modification, installation of options or parts by anyone other than an Auria ASC Improper environment Excessive or inadequate heating or air conditioning or electrical...
  • Page 33 AURIA OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATES HERE. AURIA LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM.
  • Page 36 EQD is located at: 3309 E. Miraloma Avenue Suite 107 Anaheim, CA 92806 For Customer Service please call 877-375-1065 or visit www.eqdcorp.com...
