Auria EQ248C User Manual

Clarity monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Clarity MONITOR
EQ248C
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ248C and is the answer not in the manual?

Questions and answers

Related Manuals for Auria EQ248C

Summary of Contents for Auria EQ248C

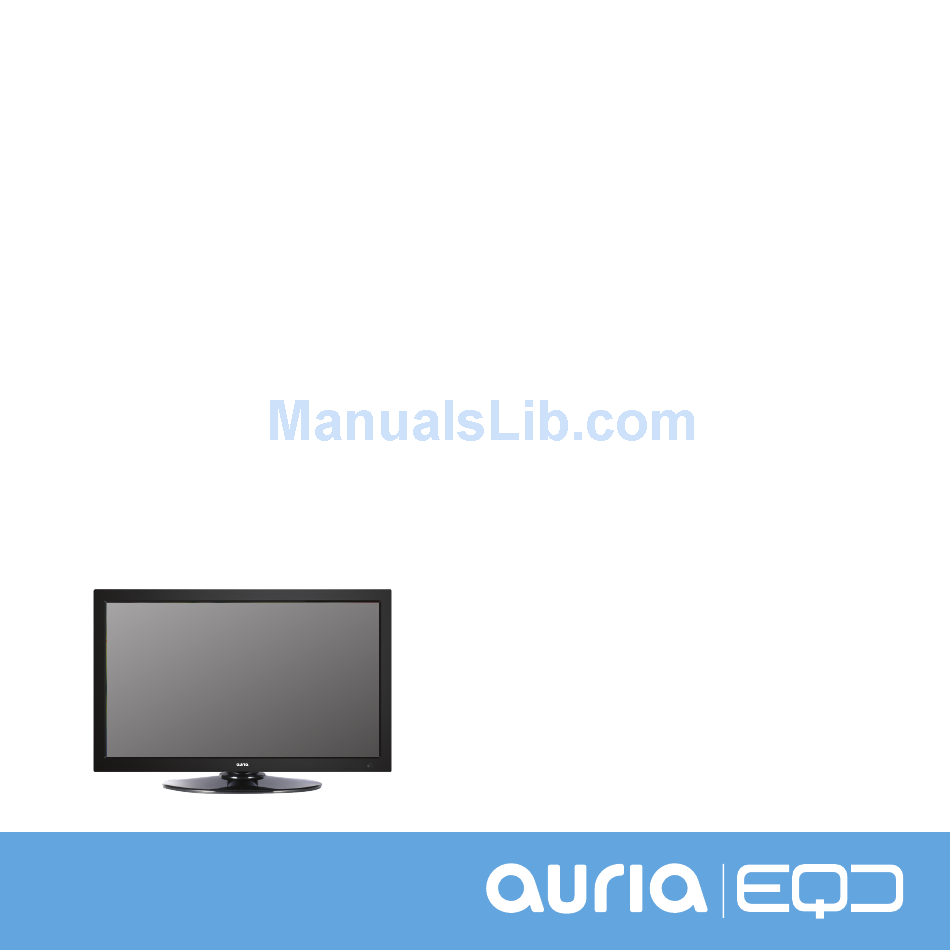

  • Page 1 Clarity MONITOR EQ248C USER GUIDE...

  • Page 3: Table Of Contents

    CONTENTS Getting Started ................... 2 Setting up your Monitor ................3-6 Connecting your Monitor to your computer ..........7-9 Using your Monitor ................... 10 Operator Interface ................11-12 Adjusting your Monitor’s Settings............13-18 Troubleshooting .................. 19-20 Specifications ..................21-22 Preset Display Modes ................. 23-24 Care and Safety ..................

  • Page 4: Getting Started

    GETTING STARTED Your Monitor is designed to work seamlessly with Windows devices that contain a HDMI, DVI, or VGA input.You also have a USB 2 in 1 Hub. It features a 24” LED/LCD backlit screen with 2560 x 1440 resolution.(Only through DVI,other input just up to 1920 x 1080). In this user guide you will learn how to: •...

  • Page 5: Setting Up Your Monitor

    SET-UP YOUR MONITOR: STEP ONE Check to make sure your packaging includes each of the following: 1. Monitor / Monitor base 2. Signal Cable (VGA cables) 3. Power cord 4. AC/DC Adapter...
  • Page 6 SET-UP YOUR MONITOR: STEP TWO Connect your monitor to the base. Unpack the monitor and attach the base. For snap-in models tools and fasteners are not required. If screws have been provided with your monitor please connect the base as follows: 1.
  • Page 7 SET-UP YOUR MONITOR: STEP THREE Follow these instructions to adjust your monitor’s viewing angle: Hold the base of the monitor with one hand (to keep the screen from shaking) Using your other hand, grab the side or top of the monitor and tilt the screen forward or backwards.
  • Page 8 SET-UP YOUR MONITOR: STEP FOUR Connect your monitor to a power source. 1. Connect the output cable from the AC Power Adapter (“The Brick”) to the DC Power In connector (flat side of connector towards the cabinet rear) on the monitor.

  • Page 9: Connecting Your Monitor To Your Computer

    For the best performance, use 1920 x 1080 (Full HD/WUXGA) graphics’ mode (If supported by your graphics card). Auria recommend using WQHD (2560 x 1440) just for photo viewing, video and game application,for office. Internet surfing application please...
  • Page 10 CONNECTING YOUR MONITOR: FOR YOUR REFERENCE Port Connections (Left to Right) • DVI • HDMI • VGA • Earphone Out • AUDIO IN • DC (power) HDMI Earphone Audio Mainframe computer...
  • Page 11 CONNECTING YOUR MONITOR: FOR YOUR REFERENCE When using a DVI cable, make sure it is a dual link cable, as only a dual link cable will support 2560 x 1440 Resolution. If using a DVI to HDMI cable, the DVI end must be dual link. DVI-D(Dual Link) DVI-D(Single Link) 24+1 needle DVI cable...

  • Page 12: Using Your Monitor

    USING YOUR MONITOR Turn on your monitor by using the ON/OFF power key (located on the front, bottom edge). The power ON indicator LED should be lit. In the following section you will learn how to adjust your monitor’s settings. Keys (Left to Right) •...

  • Page 13: Operator Interface

    OPERATOR INTERFACE AUTO Key: This key is an exit key (exit OSD menu) when OSD menu is active. MENU Key Menu/Select : Activate OSD menu or confirm function adjustment. VOL-Volume control key: 1.Press this key to decrease volume. 2.Press this key to adjust the options to move left. VOL+Volume control key: 1.Press this key to increase volume.

  • Page 14: Operator Interface

    OPERATOR INTERFACE DOWN Key/DCR Adjustment Key: When the OSD menu is active, press this key to adjust the options move down. POWER: Green Turn on on standby...

  • Page 15: Adjusting Your Monitor's Settings

    ADJUST YOUR MONITOR’S SETTINGS 1. Press the “MENU” key to activate the OSD interface. 2. Use the “UP” or “DOWN” Keys to browse the main functions. 3. In order to select a function press the “MENU” key. 4. If the function you need has a sub-menu use the “UP” or “DOWN” keys to navigate it, then press “MENU”...

  • Page 16: Adjust Picture

    ADJUST PICTURE 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “PICTURE” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse BRIGHTNESS, CONTRAST,GAMMA click “MENU” to select and adjust any of these. 4.
  • Page 17 ADJUST COLOR 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “COLOR” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to br owse PRESET,RED,GREEN,BLUE click “MENU” to select and adjust any of these. 4.
  • Page 18 ADJUST TRACKING 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “TRACKING” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to br owse HORIZONTAL,VERTICAL,CLOCK, PHASE,SHARPNESS click “MENU” to select and adjust any of these. 4.
  • Page 19 ADJUST VOLUME 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “VOLUME” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse VOLUME, MUTE click “MENU” to select and adjust any of these. 4.
  • Page 20 ADJUST SETUP 1. Press the “MENU” key 2. Press the “UP/DOWN” buttons and browse to “SETUP” in the main menu, then press “MENU” to select it. 3. Use the “UP/DOWN” keys to browse LANGUAGE,OSD HORIZONTAL, OSD VERTICAL,OSD TIMER, WHITE BALANCE, DCR,4:3 OR WIDE, INPUT SELECT,FACTORY RESET click “MENU”...

  • Page 21: Troubleshooting

    TROUBLESHOOTING Power pilot lamp is dim Check to make sure the power is turned ON Check to make sure the power cord is securely connected to both the monitor and the socket. Picture looks faint Adjust brightness or contrast ratio Screen display distorted or picture becomes wavy Possibly caused by electronic jamming due to nearby electrical equipment Power pilot lamp is bright, but there is no image on the screen...

  • Page 22: Troubleshooting

    TROUBLESHOOTING Picture is not in the middle or incorrect size Adjust CLOCK and FOCUS or hot keys (AUTO) The images have color shading (white looks not pure white) Adjust RGB color or choose new color temperature Weak brightness and contrast Monitor brightness may be reduced due to over use.

  • Page 23: Specifications

    SPECIFICATIONS Panel Display Equipment Panel (LED/LCD backlight) Dimensions 24” Dot Pitch (mm) 0.233 x 0.233 Panel Resolution 1920 x 1080 Clarity Resolution 2560 x 1440 (Just through DVI) Input Signal D-Sub 15 pin Connector DVI-D Connector HDMI HDMI Connector Frequency HFR (Horizontal Frequency) 30KHz 88.7KHz VFR (Vertical Frequency) 60Hz...
  • Page 24 SPECIFICATIONS Power Equipment 12V 3A AC Adapter: 100-240V,50-60Hz Ambient Temperature Humidity Operating temperature:0~50°C Storage temperature:-20~60°C Operation relative humidity: 10~85% Dimensions (mm) 640(L) x 150(W) x 470(H) mm Weight (Net) 4.2Kg...

  • Page 25: Preset Display Modes

    PRESET DISPLAY MODES Resolution HFR(KHz) VFR(Hz) DOS Mode 720 x 400 31.469 640 x 480 31.469 640 x 480 37.861 640 x 480 37.500 SVGA 800 x 600 37.879 800 x 600 47.20 800 x 600 46.875 1024 x 768 48.363 1024 x 768 56.476...

  • Page 26: Care And Safety

    PRESET DISPLAY MODES Resolution HFR(KHz) VFR(Hz) Full HD 1920 x 1080 67.50 WQHD 2560 x 1440 88.70 * WQHD (2560x1440) 30Hz only for DVI Port CARE & SAFETY Attention: Any unauthorized modifications or changes may cause the monitor to not work properly.
  • Page 27 CARE & SAFETY Usage It is normal for your monitor to “blink” the first time you use it. If this occurs simply turn your monitor off, then on again. The effective screen pixels of your monitor should read 99.99% or more, pixel or brightness loss should be less than 0.01%.
  • Page 28 CARE & SAFETY Cleaning & transport Keep the original box and other packing material in the event that you need to ship your monitor. To clean your monitor use a soft, dry cloth and only cleaners intended for use with a screen or display. Cleaners with alcohol or acetone will damage your screen.

  • Page 29: Warranty Statement

    Auria is not responsible for damage to inbound product that was not properly packaged. Auria will pay for the return shipment charges with in the USA and is responsible for any costs across any international borders. In the USA or Canada, please contact your local dealer or call Auria customer service at (877)375-1065.
  • Page 30 Adjustment by non-authorized sources Any cause other than ordinary usage Repair, modification, installation of options or parts by anyone other than an Auria ASC Improper environment Excessive or inadequate heating or air conditioning or electrical power failures, surges, or irregularities This one year warranty does not cover any of the products firmware or hardware that you or any third party have modified or altered;...
  • Page 31 WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AURIA BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE.
  • Page 32 EQD is located at: 3309 E. Miraloma Avenue Suite 107 Anaheim, CA 92806 For Customer Service please call 877-375-1065 or visit www.eqdcorp.com...
