9. Push the Connector board into the card. The connector board must be installed as seen in
Figure 9, directed toward the back of the server.
10. Put the card into place in the server, catching the cages into the front panel of the server. The
metal leg must go inside of the server and line up with the hole in the side of the server. Also
push the connector board into the socket in the server.
11. Screw in a flat head screw for the metal leg.
18
Mellanox Technologies

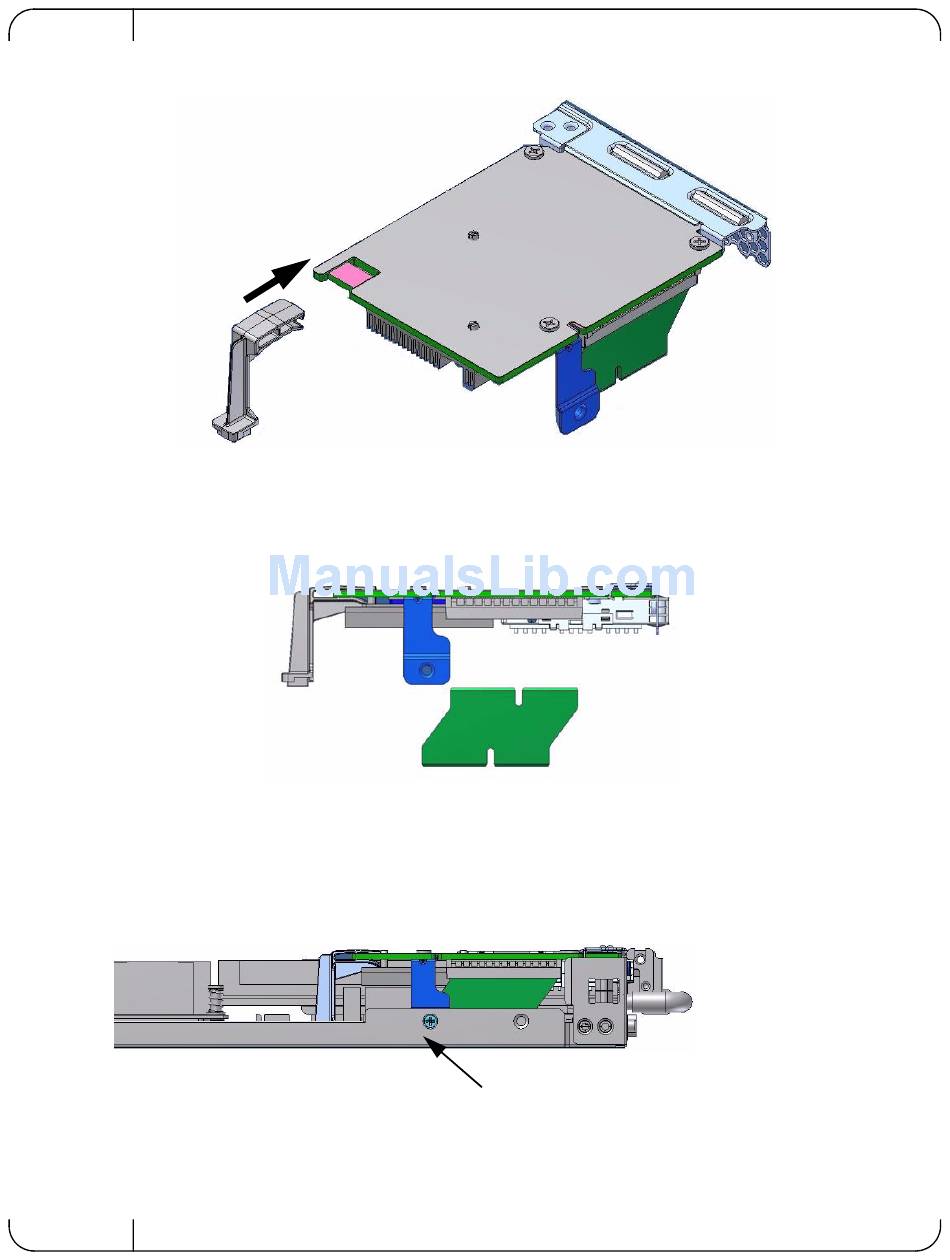

Figure 8: Install the Plastic Leg onto the Board
Figure 9: Installing the Connector Board into the HCA Card
Figure 10: Dell Card Installed
Install
a
flathead
screw
through the server into the
metal leg.
I/O Card Installation
Table of
Contents
Previous
Page
Next
Page
