ConnectX®-2 Dual Port VPI I/O Card for Dell C6100
Screws holding the faceplate
3. Remove the server and place on a work bench.
4. Above the handle are screws holding on the faceplate.
5. Remove these screws and discard.
6. Remove the two screws on the top side of the server and discard.
7. Remove the faceplate.
8. Push the plastic leg onto the board.

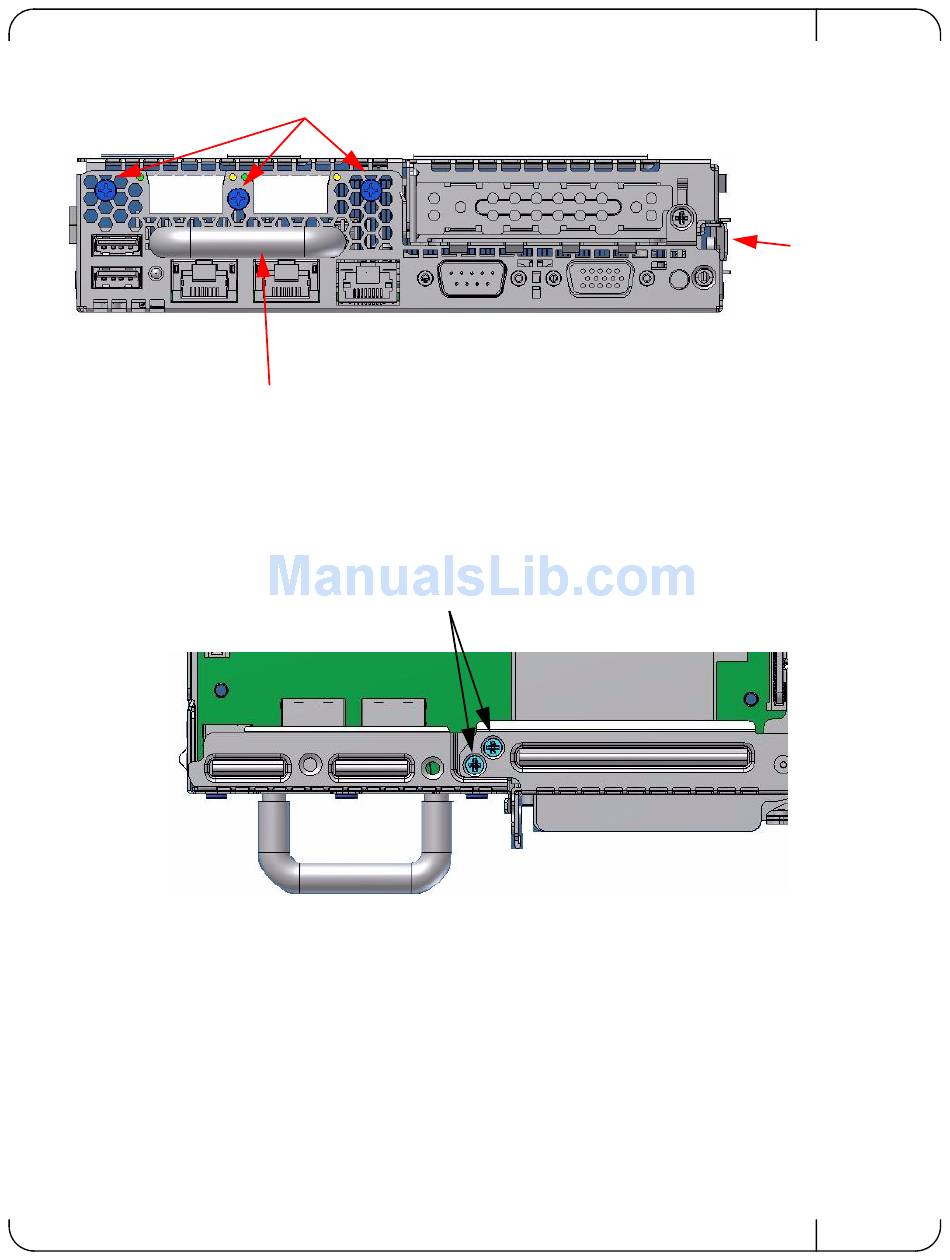

Figure 6: Removing From the Server
Pull handle
Figure 7: Top View
Screws in top
Push here
